Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STARTER MOTOR CLUTCH

CAM SHAFT - VALVE FOR SUZUKI GN 125 1983

TIMING

Item numbers

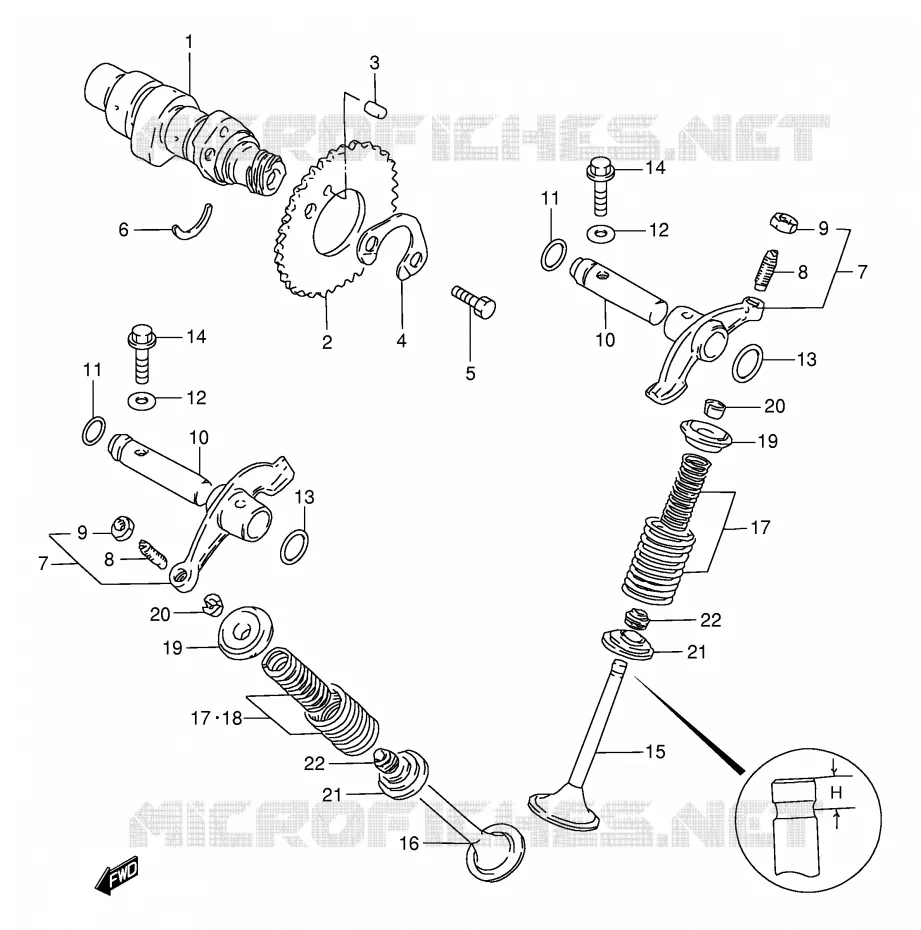

CAM SHAFT - VALVE Suzuki MOTO 125 GN 1983 GN125D(E1)
1
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
17
17
18
19
19
20
20
20
20
21
21
22
22
1
DISCONTINUE

12711-05201-000  

1271105201000
Not available
1
CAM SHAFT

12711-05990-000   1271105990000

1271105990000
Not available
2
SPROCKET, CAMSHAFT
SPROCKET (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05201-000  

12747-05202-000
 1274705201000

Unit Price

5
BOLT, SPROCKET
BOLT

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

11
O RING,ROCKER SHAFT<br />O RING
O RING, ROCKER SHAFT
O RING

09280-09005-000   0928009005000

0928009005000

Unit Price

12
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
13
WASHER,WAVE<br />WAVE WASHER
WASHER, WAVE
WAVE WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

14
BOLT

01550-06257-000  

01550-0625A-000
 0155006257000

Unit Price

15
VALVE, INTAKE
VALVE, INTAKE (H:3.92)

12911-04B00-000   1291104B00000

1291104B00000

Unit Price

15
DISCONTINUE
VALVE, INTAKE (H:5)

12911-05211-000   1291105211000

1291105211000
Not available
16
DISCONTINUE
VALVE, EXHAUST (H:5)

12912-05211-000   1291205211000

1291205211000
Not available
16
VALVE, EXHAUST
VALVE, EXHAUST (H:3.92)

12912-24400-000   1291224400000

1291224400000

Unit Price

17
SPRING SET, VALVE
SPRING SET, VALVE, INTAKE

12920-05210-000   1292005210000

1292005210000

Unit Price

18
SPRING SET, VALVE
SPRING SET, VALVE, EXHAUST

12920-05240-000   1292005240000

1292005240000

Unit Price

19
RETAINER, VALVE SPRING

12931-49200-000  

12931-49201-000
 1293149200000

Unit Price

20
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

20
COTTER, VALVE
COTTER, VALVE

12932-49200-000   1293249200000

1293249200000

Unit Price

21
SEAT,VALVE SPRING<br />SEAT, SPRING
SEAT, VALVE SPRING
SEAT, SPRING

12933-49201-000   1293349201000

1293349201000

Unit Price

22
SEAL, OIL(5.5X11X8.2)
OIL SEAL

09289-05015-000   0928905015000

0928905015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
