REAR DAMPER

REAR WHEEL (GN125Z / D / K / M / R) FOR SUZUKI GN 125 1992

REAR WHEEL (VOIR NOTE)

Item numbers

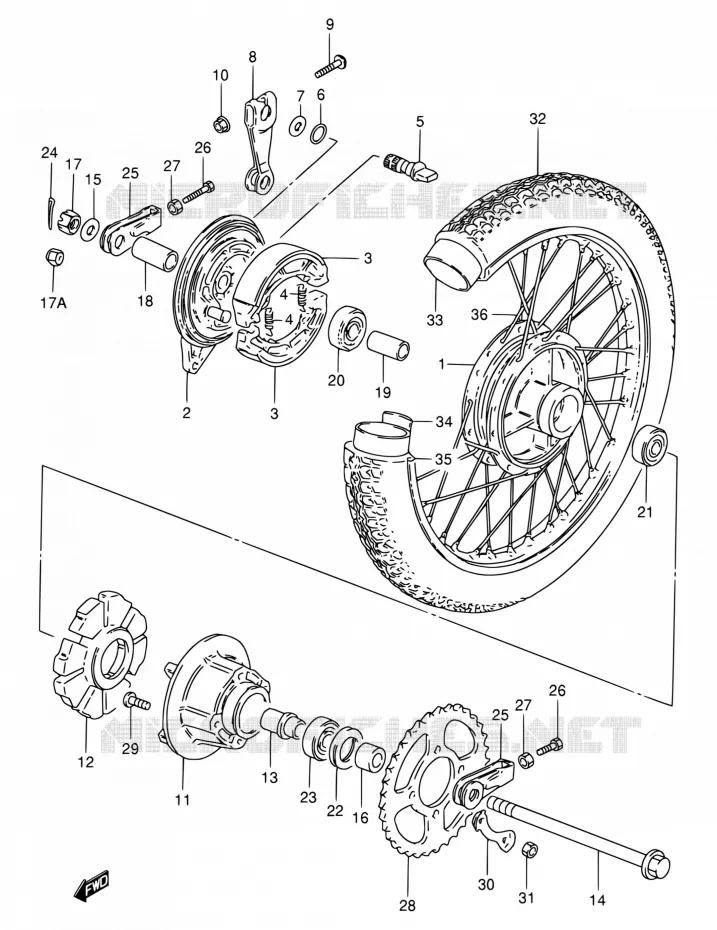

REAR WHEEL (GN125Z/D/K/M/R) Suzuki MOTO 125 GN 1992 GN125EN(E30)
1
1
2
2
3
3
3
3
4
4
5
6
7
8
11
12
13
14
14
14
15
15
16
17
17
18
19
20
21
22
23
24
25
25
26
26
26
26
29
30
33
34
34
35
36
1
HUB, RR WHEEL
HUB, WHEEL

64110-07005-000   6411007005000

6411007005000

Unit Price

1
DISCONTINUE
HUB, WHEEL

64110-07604-000   6411007604000

6411007604000
Not available
2
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-39104-000   6421039104000

6421039104000

Unit Price

2
PANEL, RR BRAKE ANCHOR
PANEL, REAR BRAKE ANCHOR

64210-39115-000   6421039115000

6421039115000

Unit Price

3
SHOE SET, BRAKE

54410-07004-000  

54400-07870-000
 5441007004000

Unit Price

4
SPRING
SPRING

09443-07001-000   0944307001000

0944307001000

Unit Price

5
CAM, BRAKE

54441-29305-000   5444129305000

5444129305000

Unit Price

6
O RING, 02.5, ID:13.8

09280-14003-000  

09280-14011-000
 0928014003000

Unit Price

7
WASHER

09160-14001-000  

09160-14055-000
 0916014001000

Unit Price

8
LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-48000-000   6445148000000

6445148000000

Unit Price

11
DRUM, RR SPROCKET MOUNTING
DRUM, SPROCKET MOUNTING

64610-05301-000   6461005301000

6461005301000

Unit Price

12
ABSORBER ASSY,HUB SHOCK<br />SHOCK ABSORBER, HUB
ABSORBER ASSY, HUB SHOCK
SHOCK ABSORBER, HUB

64651-07001-000   6465107001000

6465107001000

Unit Price

13
RETAINER, RR SPROCKET DRUM
RETAINER, MOUNTING

64733-05301-000   6473305301000

6473305301000

Unit Price

14
AXLE, RR

64711-05300-000  

64711-48001-000
 6471105300000

Unit Price

14
AXLE, REAR

64711-05310-000   6471105310000

6471105310000
Not available
15
WASHER

08322-01143-000  

08322-0114A-000
 0832201143000

Unit Price

15
WASHER

08322-11148-000  

08322-01147-000
 0832211148000

Unit Price

16
SPACER, LH (15.2X23X33)

09180-15042-000   0918015042000

0918015042000
Not available
17
NUT

09141-14001-000   0914114001000

0914114001000

Unit Price

18
SPACER, RH (15.2X23X33)
SPACER, RH (15.2X23X33)

09180-15002-000   0918015002000

0918015002000
Not available
19
SPACER(15.3X21.7X63)<br />SPACER, HUB BEARING
SPACER(15.3X21.7X63)
SPACER, HUB BEARING

09180-15011-000   0918015011000

0918015011000

Unit Price

20
BEARING, RH
BEARING, RH

08144-63027-000   0814463027000

0814463027000
Not available
21
B. BEARING 15X35X11<br />BEARING, LH
B. BEARING 15X35X11
BEARING, LH

08143-62027-000   0814362027000

0814362027000

Unit Price

22
OIL SEAL,SPROCKET
OIL SEAL, SPROCKET

09285-28001-000  

09285-28004-000
 0928528001000

Unit Price

23
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

24
PIN

04111-30308-000  

04111-3030A-000
 0411130308000

Unit Price

25
ADJUSTER, CHAIN
ADJUSTER, CHAIN

61410-36002-000   6141036002000

6141036002000

Unit Price

26
BOLT

09104-08006-000  

09104-08034-000
 0910408006000

Unit Price

29
BOLT

09119-08043-000   0911908043000

0911908043000

Unit Price

30
WASHER
WASHER

09169-08012-000   0916908012000

0916908012000

Unit Price

33
DISCONTINUE
TUBE, WHEEL INNER

65200-26700-000  

6520026700000
Not available
34
DISCONTINUE

55261-08010-000  

5526108010000
Not available
35
RIM, WHEEL (1.85-16)

65311-05300-000   6531105300000

6531105300000
Not available
36
DISCONTINUE

65320-05300-000  

6532005300000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 GN 1992
