TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI GN 125 1994

FUEL COCK

Item numbers

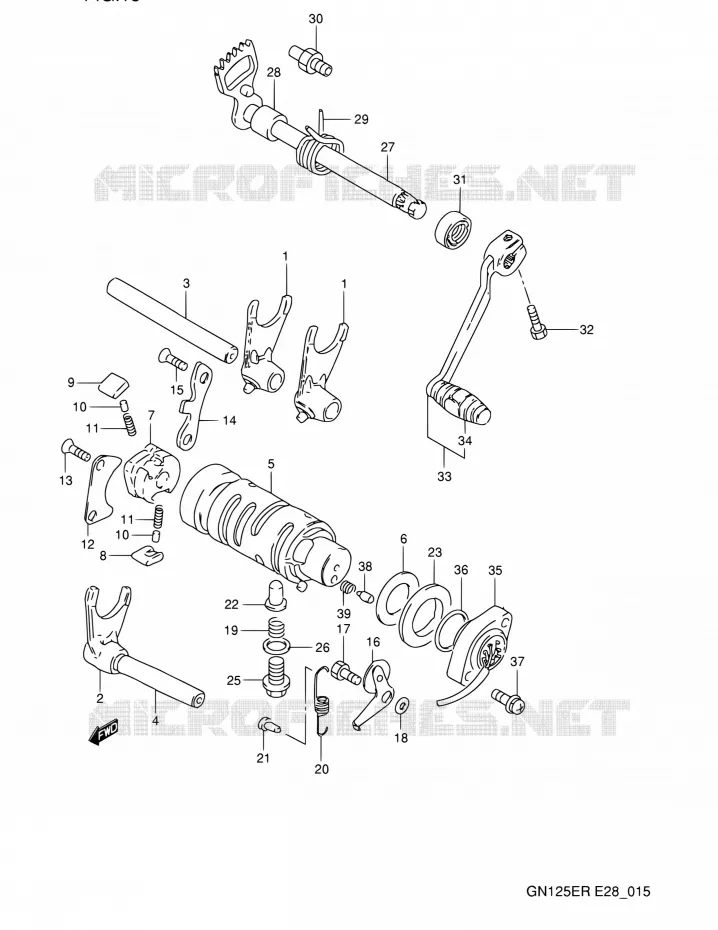

GEAR SHIFTING ASSY Suzuki MOTO 125 GN 1994 GN125E R (E03,E28,E33)
1
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
16
17
18
19
20
20
21
22
23
25
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
1
FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING (1)

25221-08300-000   2522108300000

2522108300000

Unit Price

2
FORK, GEAR SHIFT NO.3
FORK, GEAR SHIFTING (3)

25231-05201-000   2523105201000

2523105201000

Unit Price

3
SHAFT, GEAR SHIFT FORK(L:109)

25411-05200-000  

25411-16701-000
 2541105200000

Unit Price

4
SHAFT, GEAR SHIFT FORK NO.2

25421-35402-000  

25421-35410-000
 2542135402000

Unit Price

5
DISCONTINUE

25310-05300-000  

2531005300000
Not available
6
SHIM, 25X40X1.0

08211-25401-000  

09181-25251-000
 0821125401000

Unit Price

7
GEAR, GEAR SHIFT CAM DRIVEN

25322-31301-000  

25322-31310-000
 2532231301000

Unit Price

8
PAWL,GEAR SHIFT NO.1<br />PAWL, (1)
PAWL, GEAR SHIFT NO.1
PAWL, (1)

25323-34201-000   2532334201000

2532334201000

Unit Price

9
PAWL,GEAR SHIFT NO.2<br />PAWL, (2)
PAWL, GEAR SHIFT NO.2
PAWL, (2)

25324-34201-000   2532434201000

2532434201000

Unit Price

10
SHIFTING PAUL ROLLER<br />PIN
SHIFTING PAUL ROLLER
PIN

09261-05003-000   0926105003000

0926105003000

Unit Price

11
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

12
LIFTER, GEAR SHIFT POLE
LIFTER, PAWL

25331-30001-000   2533130001000

2533130001000

Unit Price

13
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

14
GUIDE, GEAR SHIFT CAM
GUIDE, CAM

25341-05200-000   2534105200000

2534105200000

Unit Price

15
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

16
STOPPER, GEAR SHIFT CAM
STOPPER, CAM

25350-44A00-000   2535044A00000

2535044A00000

Unit Price

16
STOPPER, CAM

25350-05200-000   2535005200000

2535005200000
Not available
17
BOLT

09111-06019-000  

09111-06054-000
 0911106019000

Unit Price

18
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

19
SPRING

09440-11016-000  

09440-11026-000
 0944011016000

Unit Price

20
SPRING

09443-08044-000   0944308044000

0944308044000

Unit Price

20
DISCONTINUE<br />SPRING
DISCONTINUE
SPRING

09443-08012-000   0944308012000

0944308012000
Not available
21
RIVET<br />HOOK
RIVET
HOOK

09223-04001-000   0922304001000

0922304001000

Unit Price

22
STOPPER,GEAR SHIFT CAM NO.2<br />STOPPER, NEUTRAL
STOPPER, GEAR SHIFT CAM NO.2
STOPPER, NEUTRAL

25351-30010-000   2535130010000

2535130010000

Unit Price

23
PLATE, GEAR SHIFT CAM STOPPER
PLATE, STOPPER

25381-45400-000   2538145400000

2538145400000

Unit Price

24
PIN (4X6)

06211-04063-000  

04221-04069-000
 0621104063000

Unit Price

25
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

26
SPARK PLUG GASKET<br />WASHER
SPARK PLUG GASKET
WASHER

09168-14004-000   0916814004000

0916814004000

Unit Price

27
SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING

25510-05201-000   2551005201000

2551005201000

Unit Price

28
SPACER(12X20X15.3)<br />SPACER
SPACER(12X20X15.3)
SPACER

09180-12068-000   0918012068000

0918012068000

Unit Price

29
SHAFT RETURN SPRING<br />SPRING
SHAFT RETURN SPRING
SPRING

09444-26013-000   0944426013000

0944426013000

Unit Price

30
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

31
09285-12006<br />OIL SEAL
09285-12006
OIL SEAL

09285-12002-000  

0928512002000
Not available
32
BOLT

01107-06207-000  

01500-06207-000
 0110706207000

Unit Price

33
LEVER ASSY, GEAR SHIFT

25600-05320-000  

25600-05330-000
 2560005320000

Unit Price

34
RUBBER,GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT PEDAL

25652-16500-000  

25652-16510-000
 2565216500000

Unit Price

35
BASE ASSY, GEAR SHIFT TERMINAL
BODY, SWITCH

37720-44700-000   3772044700000

3772044700000

Unit Price

36
O RING

09280-26003-000  

0928026003000
Not available
37
SCREW

02112-75208-000  

02112-75207-000
 0211275208000

Unit Price

38
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

39
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 GN 1994

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 GN 1994

Choose your Suzuki 125 1994 GN model

125 GN 1994 GN125E R (E03,E28,E33)

GN 125

Suzuki GN

Displacement: 125 cc
Year: 1994
Model code GN125E R (E03,E28,E33)
