Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GN 125 1994

GEAR SHIFTING ASSY

Item numbers

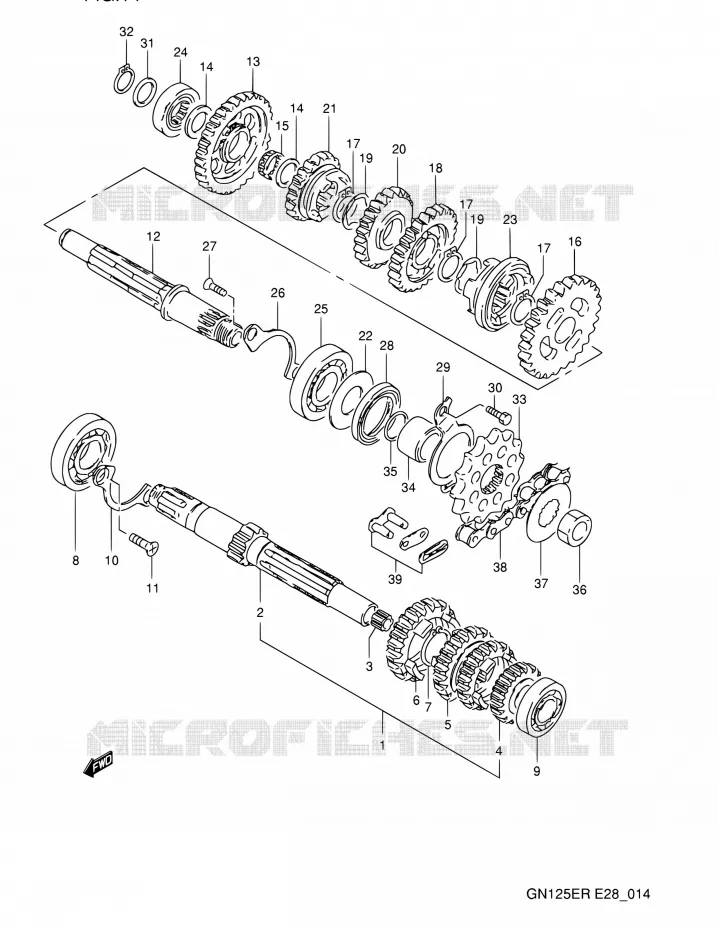

TRANSMISSION Suzuki MOTO 125 GN 1994 GN125E R (E03,E28,E33)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
39
1
DISCONTINUE
COUNTERSHAFT

24120-05302-000  

2412005302000
Not available
2
.COUNTERSHAFT (NT:11)

24121-05201-000   2412105201000

2412105201000
Not available
3
.BUSH

24125-38201-000   2412538201000

2412538201000

Unit Price

4
GEAR, 2ND DRIVE(NT:14)

24221-05300-000  

24221-05301-000
 2422105300000

Unit Price

5
24231-05203
.GEAR, 3/4 DRIVE (NT:19/21)

24231-05202-000  

2423105202000
Not available
6
24251-05203
.GEAR, 5TH DRIVE (NT:23)

24251-05202-000  

2425105202000
Not available
7
CIRCLIP ENG SPROCKET
.CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

8
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

9
BALL BEARING
BEARING, LH

08123-60027-000   0812360027000

0812360027000

Unit Price

10
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

11
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

12
DISCONTINUE
DRIVESHAFT

24130-05300-000   2413005300000

2413005300000
Not available
13
GEAR, 1ST DRIVEN(NT:33)

24311-05200-000  

24311-05202-000
 2431105200000

Unit Price

14
WASHER

08211-15251-000   0821115251000

0821115251000

Unit Price

15
BEARING(15X19X7.8)
BEARING

09263-15023-000   0926315023000

0926315023000

Unit Price

16
24320-05202
GEAR, 2ND DRIVEN (NT:26)

24320-05201-000  

2432005201000
Not available
17
CIRCLIP ENG SPROCKET
CIRCLIP

09380-20009-000   0938020009000

0938020009000

Unit Price

18
GEAR, 3RD DRIVEN(NT:26)

24331-05201-000  

24331-05203-000
 2433105201000

Unit Price

19
WASHER, LOCK
WASHER

09167-20011-000   0916720011000

0916720011000

Unit Price

20
GEAR, 4TH DRIVEN(NT:23)

24341-05201-000  

24341-05203-000
 2434105201000

Unit Price

21
GEAR, 5TH DRIVEN(NT:21)

24351-05201-000  

24351-05202-000
 2435105201000

Unit Price

22
WASHER, OIL SEALING
WASHER

24359-05200-000   2435905200000

2435905200000

Unit Price

23
WHEEL, SLIDING DOG
WHEEL

24421-05300-000   2442105300000

2442105300000

Unit Price

24
BEARING, RH

09263-15024-000   0926315024000

0926315024000
Not available
25
BEARING

09262-20069-000  

09262-20121-000
 0926220069000

Unit Price

26
RETAINER, DRIVE SHAFT BEARING
HOLDER, BEARING

24741-05200-000   2474105200000

2474105200000

Unit Price

27
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

28
OIL SEAL, DR SFT
OIL SEAL, LH

09283-27010-000   0928327010000

0928327010000

Unit Price

29
RETAINER, DRIVE SHAFT OIL SEAL

24751-05201-000  

24751-05210-000
 2475105201000

Unit Price

30
BOLT

01107-06106-000  

01500-0610B-000
 0110706106000

Unit Price

31
WASHER, THRUST
WASHER

08211-15201-000   0821115201000

0821115201000

Unit Price

32
CIRCLIP

08331-31156-000  

08331-3115A-000
 0833131156000

Unit Price

33
SPROCKET, ENGINE
SPROCKET (NT:14)

27511-41310-000   2751141310000

2751141310000

Unit Price

34
SPACER

27531-05200-000   2753105200000

2753105200000

Unit Price

35
O-RING, ENG SPROCKET
O RING

09280-19005-000   0928019005000

0928019005000

Unit Price

36
NUT, ENG SPROCKET
NUT

09140-16017-000   0914016017000

0914016017000

Unit Price

37
ENG SPROCKET WASHER
WASHER

09167-20012-000   0916720012000

0916720012000

Unit Price

38
27600-29B20-124
CHAIN, DRIVE (428X124!114LE)

27600-36012-000  

2760036012000
Not available
39
JOINT(RK)

27620-36012-000  

27620-40220-000
 2762036012000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
