STARTER MOTOR (MODEL V / W / X / Y) FOR SUZUKI GN 125 1997

STARTER MOTOR (MODEL K1)

Item numbers

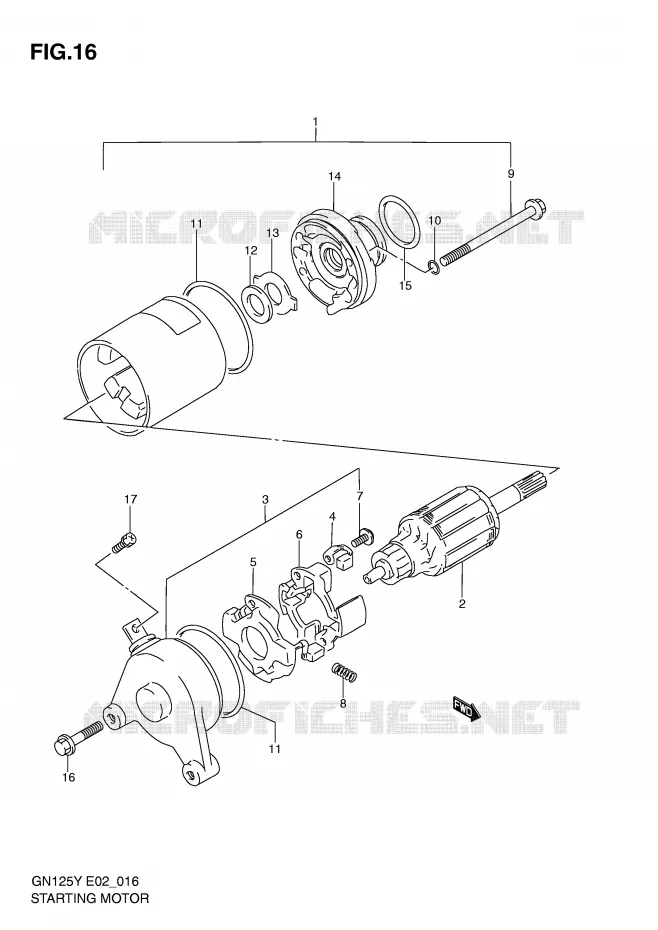

STARTER MOTOR (MODEL V/W/X/Y) Suzuki MOTO 125 GN 1997 GN125UV(E2)

1

MOTOR ASSY, STARTING

31100-05501-000

31100-05510-000

$918,97

Unit Price

2

ARMATURE

31310-11D00-000 3131011D00000

$303,97

Unit Price

3

FRAME ASSY, COMMUTATOR, END

31175-42A01-000 3117542A01000

$108,97

Unit Price

4

BRUSH

31132-32C10-000 3113232C10000

$19,97

Unit Price

5

BRUSH SUB ASSY, STARTER
BRUSH SUB ASSY

31130-32C20-000 3113032C20000

$43,97

Unit Price

6

HOLDER, BRUSH

31133-32C10-000 3113332C10000

$17,97

Unit Price

7

SCREW

02112-34123-000

02112-3412B-000

$3,97

Unit Price

8

SPRING

31135-32C10-000 3113532C10000

$6,97

Unit Price

9

BOLT

31281-32C10-000 3128132C10000

$11,97

Unit Price

10

O RING

31156-38300-000 3115638300000

$5,97

Unit Price

11

O RING

31264-32C10-000 3126432C10000

$16,97

Unit Price

12

SHIM

31361-38300-000 3136138300000

$2,97

Unit Price

13

PLATE, LOCK

31361-32C10-000 3136132C10000

$3,97

Unit Price

14

BRACKET

31150-06C00-000 3115006C00000

$137,97

Unit Price

15

RING, STARTER MOTOR
O RING (D:3, ID:24.5)

09280-24003-000 0928024003000

$2,97

Unit Price

16

BOLT, 6X30
BOLT

01547-06307-000 0154706307000

$3,97

Unit Price

17

SCREW(5X8)
SCREW

09137-05004-000 0913705004000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
