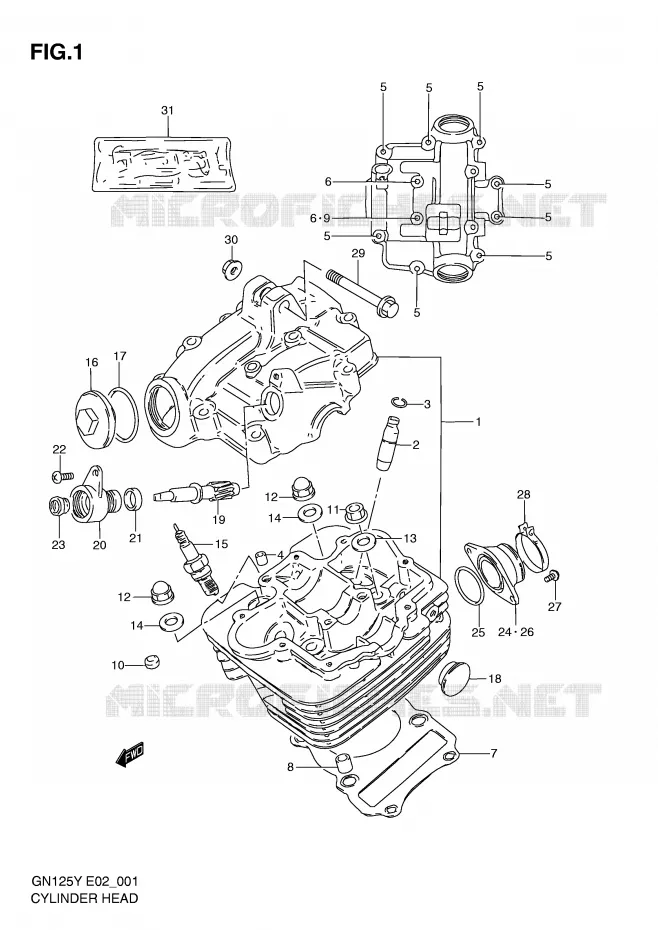

CYLINDER HEAD FOR SUZUKI GN 125 2000

CYLINDER

Item numbers

DISCONTINUE
HEAD ASSY, CYLINDER

11100-05263-000 1110005263000

Not available

GUIDE, VALVE

11115-05270-000 1111505270000

$38,97

Unit Price

RING, VALVE GUIDE

09381-10004-000 0938110004000

$2,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT
BOLT (6X35)

01550-06357-000 0155006357000

$4,97

Unit Price

BOLT

01550-06607-000

01550-0660A-000

$4,97

Unit Price

GASKET, CYLINDER HEAD

11141-05202-000 1114105202000

$17,97

Unit Price

PIN 11X16
PIN, CYLINDER HEAD

04211-11169-000 0421111169000

$2,97

Unit Price

GASKET
WASHER

09168-06023-000 0916806023000

Not available

PAD, CYLINDER HEAD
PAD, RUBBER

11151-45000-000 1115145000000

$5,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$3,97

Unit Price

NUT

09159-08049-000

09159-08074-000

$12,97

Unit Price

WASHER(8.5X19X2.3)

09160-08053-000

09160-08039-000

$2,97

Unit Price

GASKET (8.5X17X2.3)

09168-08021-000 0916808021000

$3,97

Unit Price

DR8EA, NGK

09482-00144-000

09482-00399-000

$6,45

Unit Price

DR8EA, NGK

09482-00223-000

09482-00149-000

$6,45

Unit Price

DR8EA, NGK
SPARK PLUG (NGK, DR8EA)

09482-00399-000 0948200399000

$6,45

Unit Price

SPARK PLUG (DENSO, X24ES-U)

09482-00145-000 0948200145000

DR8EA, NGK

09482-00223-000

09482-00149-000

$6,45

Unit Price

DR8EA, NGK
SPARK PLUG (NGK, DR8EA)

09482-00399-000 0948200399000

$6,45

Unit Price

SPARK PLUG (DENSO, X24ES-U)

09482-00145-000 0948200145000

Not available

CAP, INSPECTION

11175-18900-000

Not available

O RING, D:3 ID 29.5
O RING (D:3.0, ID:29.5)

09280-30001-000 0928030001000

$2,97

Unit Price

PLUG, CAM SHAFT
PLUG, HEAD

09241-22002-000 0924122002000

$7,97

Unit Price

GEAR, TACHOMETER DRIVEN

26431-05201-000 2643105201000

Not available

SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000 2644149000000

$33,97

Unit Price

BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000 2645145000000

$7,97

Unit Price

SCREW

09128-05012-000 0912805012000

Not available

TACHO DRVN OIL SEAL
OIL SEAL (5X12X8)

09289-05002-000 0928905002000

$16,97

Unit Price

PIPE ASSY, INTAKE
PIPE, INTAKE

13101-05300-000 1310105300000

$52,97

Unit Price

O RING (D:2.4, ID:31.7)

09280-32006-000 0928032006000

$3,97

Unit Price

PIPE, INTAKE

13110-05370-000 1311005370000

Not available

SCREW

02112-36163-000

02112-3616B-000

$4,97

Unit Price

SCREW

09139-06014-000 0913906014000

Not available

CLAMP

09402-44208-000 0940244208000

$9,97

Unit Price

BOLT

09103-08081-000

01550-08507-000

$5,97

Unit Price

NUT

08319-31087-000 0831931087000

Not available

GASKET SET

11401-05864-000 1140105864000

$124,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
