TAIL LIGHT (E2, E4, E18, E21)

TAIL LIGHT (E17, E22) FOR SUZUKI GP 125 1992

ELECTRICAL (1)

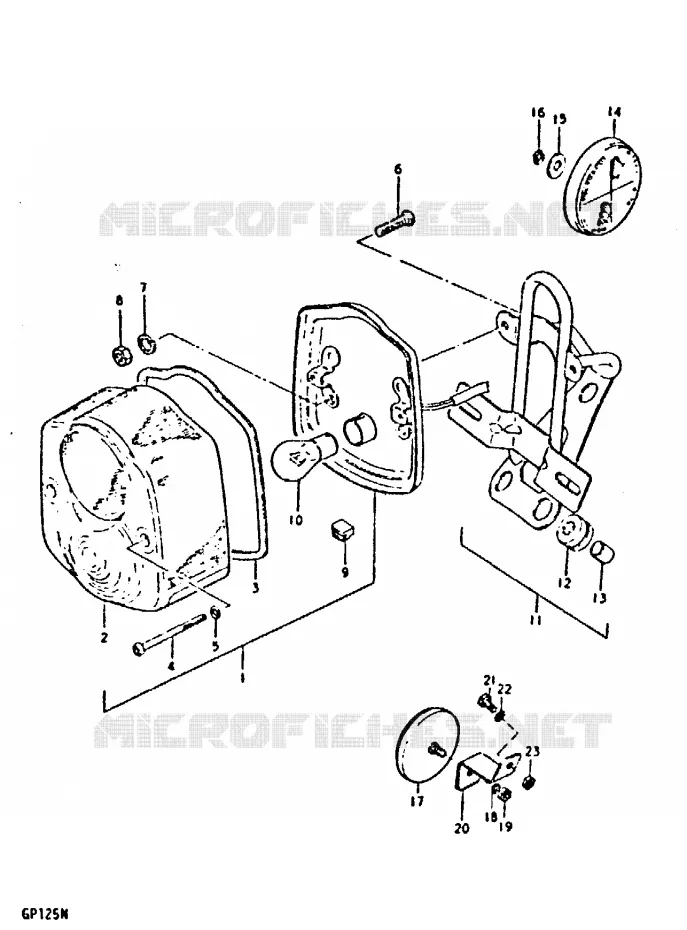

TAIL LIGHT (E17, E22) Suzuki MOTO 125 GP 1992 GP125N(C/N)
1
LAMP ASSY, TAIL

35710-39170-000   3571039170000

3571039170000
Not available
1
LAMP ASSY, TAIL

35710-39190-999   3571039190999

3571039190999
Not available
1
LAMP UNIT, TAIL

35720-39171-000   3572039171000

3572039171000
Not available
1
LAMP UNIT, TAIL

35720-39191-999   3572039191999

3572039191999
Not available
2
LENS

35712-39170-000   3571239170000

3571239170000
Not available
2
LENS

35712-39171-000   3571239171000

3571239171000
Not available
3
GASKET

35713-46620-000   3571346620000

3571346620000
Not available
4
SCREW

35623-35110-000   3562335110000

3562335110000
Not available
5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
.SCREW

02112-05108-000   0211205108000

0211205108000
Not available
7
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

8
NUT

08310-11058-000  

08310-00057-000
 0831011058000

Unit Price

9
GROMMET

35728-46630-000   3572846630000

3572846630000
Not available
10
BULB (6V, 21/5W)

09471-06034-000   0947106034000

0947106034000
Not available
10
BULB (6V, 21/5W)

09471-06042-000   0947106042000

0947106042000
Not available
11
BRACKET ASSY

35730-39191-000   3573039191000

3573039191000
Not available
12
CUSHION, RR COMBINATION
CUSHION

35765-35300-000   3576535300000

3576535300000

Unit Price

13
SPACER

35766-35300-000   3576635300000

3576635300000
Not available
14
REFLEX REFLECTOR,FR<br />REFLEX REFLECTOR, FRONT
REFLEX REFLECTOR, FR
REFLEX REFLECTOR, FRONT

35950-45010-000   3595045010000

3595045010000

Unit Price

15
LOCK WASHER

08322-21058-000   0832221058000

0832221058000
Not available
16
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

17
REFLEX REFLECTOR, RR

35970-45611-000  

35970-30910-000
 3597045611000

Unit Price

17
DISCONTINUED

35970-45610-000   3597045610000

3597045610000
Not available
18
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

19
NUT

08310-11058-000  

08310-00057-000
 0831011058000

Unit Price

20
BRACKET

35974-36600-000   3597436600000

3597436600000
Not available
21
BOLT, FRONT

01107-06108-000   0110706108000

0110706108000
Not available
22
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
23
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
