OIL PUMP

CLUTCH FOR SUZUKI GP 125 1992

TRANSMISSION

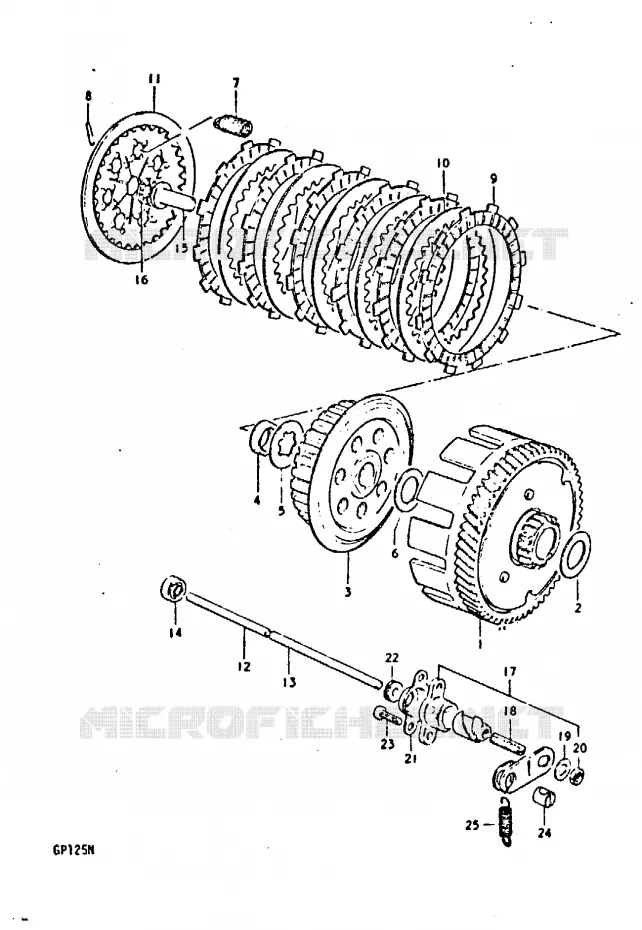

CLUTCH Suzuki MOTO 125 GP 1992 GP125UN(C/N)
1
GEAR, PRIMARY DRIVEN

21200-39101-000   2120039101000

2120039101000
Not available
2
WASHER
WASHER (20*32*2)

08211-20323-000   0821120323000

0821120323000

Unit Price

3
HUB, SLEEVE

21410-28700-000   2141028700000

2141028700000
Not available
4
SPR MOUNT DRUM NUT

09140-16001-000  

09140-16005-000
 0914016001000

Unit Price

5
CLUTCH HUB LK WASHER<br />WASHER
CLUTCH HUB LK WASHER
WASHER

09167-17002-000   0916717002000

0916717002000

Unit Price

6
CLUTCH THRUST WASHER<br />WASHER (17*28*1.5)
CLUTCH THRUST WASHER
WASHER (17*28*1.5)

08211-17282-000   0821117282000

0821117282000

Unit Price

7
SPRING

09443-12010-000   0944312010000

0944312010000

Unit Price

8
CLUTCH SPRING PIN<br />PIN
CLUTCH SPRING PIN
PIN

09261-02001-000   0926102001000

0926102001000

Unit Price

9
PLATE, DRIVE

21441-28300-000   2144128300000

2144128300000
Not available
10
PLATE, CLUTCH DRIVEN

21451-28000-000  

21451-19A00-000
 2145128000000

Unit Price

11
PLATE, CLUTCH PRESSURE
PLATE, PRESSURE

21460-28000-000   2146028000000

2146028000000

Unit Price

11
PLATE, PRESSURE

21460-28200-000   2146028200000

2146028200000
Not available
12
ROD, CLUTCH PUSH LH

23111-39101-000  

23111-15501-000
 2311139101000

Unit Price

13
ROD, CLUTCH PUSH, L

23111-28000-000  

23111-34C00-000
 2311128000000

Unit Price

14
SEAL, OIL(6X19X7)

09285-06006-000  

09285-06021-000
 0928506006000

Unit Price

15
PIECE, PUSH

23121-39100-000   2312139100000

2312139100000
Not available
16
RD SFT ARM PIN BRG
BEARING

09263-10002-000   0926310002000

0926310002000

Unit Price

17
SCREW ASSY, RELEASE

23200-39101-000   2320039101000

2320039101000
Not available
18
SCREW, RELEASE

09134-06001-000   0913406001000

0913406001000
Not available
19
CLUTCH REL WASHER<br />WASHER (6.5*16*1.2)
CLUTCH REL WASHER
WASHER (6.5*16*1.2)

09160-06019-000   0916006019000

0916006019000

Unit Price

20
NUT

08310-22068-000   0831022068000

0831022068000
Not available
21
COVER, CLUTCH RELEASE SCREW
COVER, RELEASE SCREW

23241-23000-000   2324123000000

2324123000000

Unit Price

22
SEAL, DUST(5.3X13X5)
DUST SEAL

09281-05001-000   0928105001000

0928105001000

Unit Price

23
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

24
PIECE, RELEASE ARM END
PIECE, RELEASE ARM END

23222-07000-000   2322207000000

2322207000000

Unit Price

25
CL REL ARM SPRING<br />SPRING
CL REL ARM SPRING
SPRING

09443-08001-000   0944308001000

0944308001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
