CYLINDER HEAD FOR SUZUKI GS 125 1982

CYLINDER

Item numbers

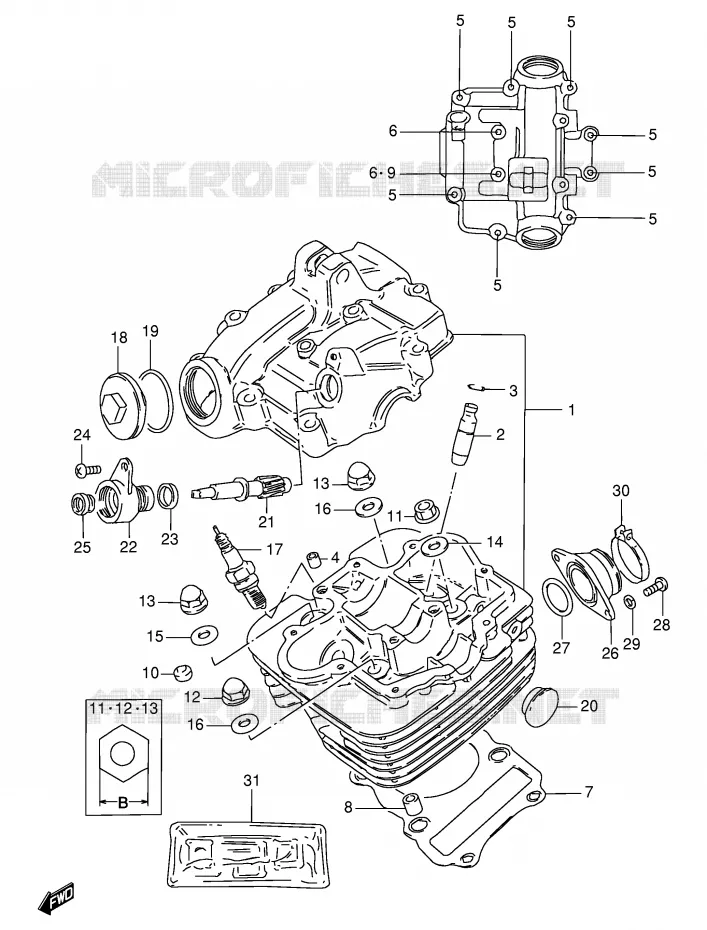

CYLINDER HEAD Suzuki MOTO 125 GS 1982 GS125EEZ(E1)
1
1
1
1
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
6
7
8
9
10
11
11
11
11
11
11
12
12
12
12
13
13
13
13
13
13
13
13
13
14
15
15
16
16
16
16
17
17
17
17
18
18
18
18
19
20
21
22
23
24
25
26
26
27
28
28
29
30
30
31
31
31
1
DISCONTINUED

11100-05261-000   1110005261000

1110005261000
Not available
1
DISCONTINUE
HEAD ASSY, CYLINDER

11100-05263-000   1110005263000

1110005263000
Not available
1
HEAD ASSY, CYLINDER

11100-05270-000   1110005270000

1110005270000
Not available
1
HEAD ASSY, CYLINDER

11100-05272-000   1110005272000

1110005272000
Not available
2
GUIDE, VALVE

11115-05270-000   1111505270000

1111505270000

Unit Price

3
RING, VALVE GUIDE
RING, VALVE GUIDE

09381-10004-000   0938110004000

0938110004000

Unit Price

4
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
BOLT

01517-06354-000  

01550-0635B-000
 0151706354000

Unit Price

5
BOLT

01517-06358-000  

01550-06357-000
 0151706358000

Unit Price

6
BOLT

01517-06605-000  

01550-06603-000
 0151706605000

Unit Price

6
BOLT

01517-06608-000  

01550-0660A-000
 0151706608000

Unit Price

7
GASKET.CYLINDER HEAD

11141-05201-000  

11141-05202-000
 1114105201000

Unit Price

8
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

9
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
10
PAD, CYLINDER HEAD
RUBBER PAD

11151-45000-000   1115145000000

1115145000000

Unit Price

11
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

11
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

11
NUT

09159-08031-000  

09159-08034-000
 0915908031000

Unit Price

12
CYLINDER HEAD NUT
NUT (B:14)

09159-08029-000   0915908029000

0915908029000

Unit Price

12
NUT<br />NUT (B:12)
NUT
NUT (B:12)

09159-08074-000   0915908074000

0915908074000

Unit Price

13
CYLINDER HEAD NUT

09159-08035-000  

09159-08029-000
 0915908035000

Unit Price

13
NUT

09159-08064-000  

09159-08049-000
 0915908064000

Unit Price

13
NUT<br />NUT (B:12)
NUT
NUT (B:12)

09159-08074-000   0915908074000

0915908074000

Unit Price

14
WASHER(8.5X19X2.3)
WASHER

09160-08039-000   0916008039000

0916008039000

Unit Price

15
WASHER(8.5X19X2.3)
WASHER

09160-08039-000   0916008039000

0916008039000

Unit Price

16
WASHER

09168-08012-000  

09168-08013-000
 0916808012000

Unit Price

16
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

17
DR8EA, NGK

09482-00144-000  

09482-00399-000
 0948200144000

Unit Price

17
DR8EA, NGK

09482-00223-000  

09482-00149-000
 0948200223000

Unit Price

17
DR8EA, NGK
SPARK PLUG (NGK, DR8EA)

09482-00399-000   0948200399000

0948200399000

Unit Price

17
SPARK PLUG (ND, X24ES-U)

09482-00145-000   0948200145000

0948200145000
Not available
18
CAP, INSPECTION

11175-32400-000  

11175-42A00-000
 1117532400000

Unit Price

18
CAP, INSPECTION
CAP, INSPECTION GN125/W-

11175-18900-000  

1117518900000
Not available
19
O RING,D:3 ID 29.5<br />O RING
O RING, D:3 ID 29.5
O RING

09280-30001-000   0928030001000

0928030001000

Unit Price

20
PLUG, CAM SHAFT
PLUG, HEAD

09241-22002-000   0924122002000

0924122002000

Unit Price

21
GEAR, TACHOMETER DRIVEN

26431-05201-000   2643105201000

2643105201000
Not available
22
SLEEVE,TACHOMETER DRIVE GEAR<br />SLEEVE
SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000   2644149000000

2644149000000

Unit Price

23
BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000   2645145000000

2645145000000

Unit Price

24
LOCK PLATE SCREW<br />SCREW
LOCK PLATE SCREW
SCREW

09128-05101-000   0912805101000

0912805101000

Unit Price

25
TACHO DRVN OIL SEAL<br />OIL SEAL
TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000   0928905002000

0928905002000

Unit Price

26
PIPE ASSY, INTAKE

13110-05300-000  

13101-05300-000
 1311005300000

Unit Price

26
PIPE, INTAKE

13110-05310-000   1311005310000

1311005310000
Not available
27
O RING(D:2.4,ID:31.7)<br />O RING
O RING(D:2.4, ID:31.7)
O RING

09280-32006-000   0928032006000

0928032006000

Unit Price

28
SCREW

02112-06164-000  

02112-0616A-000
 0211206164000

Unit Price

28
SCREW

02112-36163-000  

02112-3616B-000
 0211236163000

Unit Price

29
08321-0106A
.LOCK WASHER

08321-21064-000  

0832121064000
Not available
30
CLAMP

09402-44208-000   0940244208000

0940244208000

Unit Price

30
CLAMP

09402-46208-000   0940246208000

0940246208000

Unit Price

31
GASKET SET

11401-05861-000  

11401-05864-000
 1140105861000

Unit Price

31
DISCONTINUE

11400-05853-000  

1140005853000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of GS. Let us know if you have any questions.
