CARBURETOR (MODEL Z / D / F / K) REFER TO FIG.14A(C-6) FOR GS125ESK/ESL E24, MODEL M/R

CARBURETOR (GS125ESK / ESL E24, MODEL M / R) FOR SUZUKI GS 125 1982

CARBURETOR (MODEL R P37)

Item numbers

JET, MAIN(180)
JET, PILOT AIR (180)

09491-36005-000 0949136005000

$22,97

Unit Price

SPRING, THROTTLE VALVE

13503-33200-000

13503-05350-000

$15,97

Unit Price

DISCONTINUE
COVER

13502-33210-000

Not available

SCREW

02112-33083-000

02112-3308A-000

$3,97

Unit Price

PLATE

13389-37400-000 1338937400000

$9,97

Unit Price

PACKING

13431-05300-000 1343105300000

$6,97

Unit Price

WASHER

09160-04015-000 0916004015000

Not available

DISCONTINUE
SHAFT ASSY, STARTER

13410-05300-000

Not available

JET, PILOT
JET, PILOT (35)

09492-35008-000 0949235008000

$16,97

Unit Price

NEEDLE, JET (4DZ35-2)

13383-05310-000 1338305310000

Not available

JET, NEEDLE (P-2)

09494-00370-000 0949400370000

$53,97

Unit Price

PLUG, NEEDLE JET
PLUG

13357-44080-000 1335744080000

$8,97

Unit Price

GASKET

13246-44080-000 1324644080000

$6,97

Unit Price

PLUG, DRAIN
SCREW, DRAIN

13247-44080-000 1324744080000

$16,97

Unit Price

JET, MAIN
JET, MAIN (102.5)

09491-20012-000 0949120012000

$16,97

Unit Price

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

PLATE, NEEDLE VALVE FITING
PLATE

13373-11400-000 1337311400000

$22,97

Unit Price

PLATE

13373-39110-000 1337339110000

$10,97

Unit Price

SCREW

02112-04063-000

02112-0406B-000

$2,97

Unit Price

FLOAT

13250-05300-000 1325005300000

$46,97

Unit Price

PIN, FLOAT
PIN

13254-92311-000 1325492311000

$3,97

Unit Price

VALVE ASSY, NEEDLE
VALVE ASSY, NEEDLE (2.0)

13370-44500-000 1337044500000

$46,97

Unit Price

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

GASKET, FLOAT BODY

13251-05400-000

13251-20E20-000

$17,97

Unit Price

DISCONTINUE
DIAPHRAGM ASSY

13500-053D0-000

Not available

13500-053D0
.DIAPHRAGM ASSY

13500-33200-000

Not available

SPRING

13388-44030-000 1338844030000

$10,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

CLIP
E RING

13394-10010-000 1339410010000

$6,97

Unit Price

RING

13387-47010-000 1338747010000

$11,97

Unit Price

DISCONTINUE

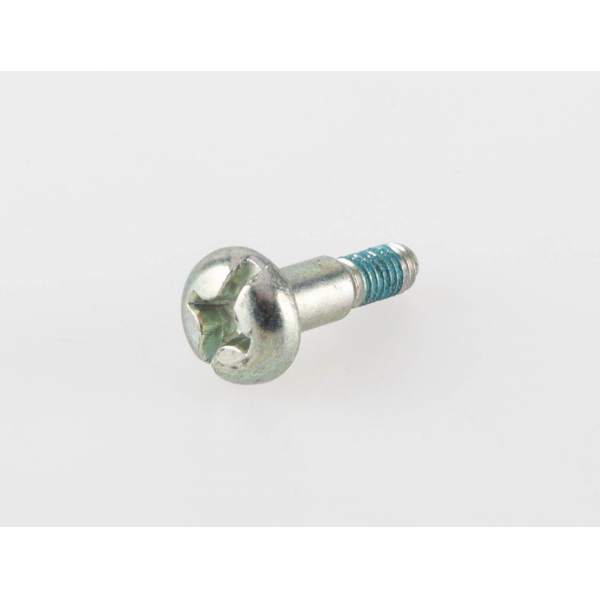

SCREW

13438-33110-000 1343833110000

Not available

DISCONTINUE
SPRING

13426-43010-000 1342643010000

Not available

WASHER, STARTER SHAFT
WASHER

13615-43010-000 1361543010000

$4,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

SCREW

02112-05083-000

02112-0508A-000

$3,97

Unit Price

DISCONTINUE
LEVER

13422-05300-000 1342205300000

Not available

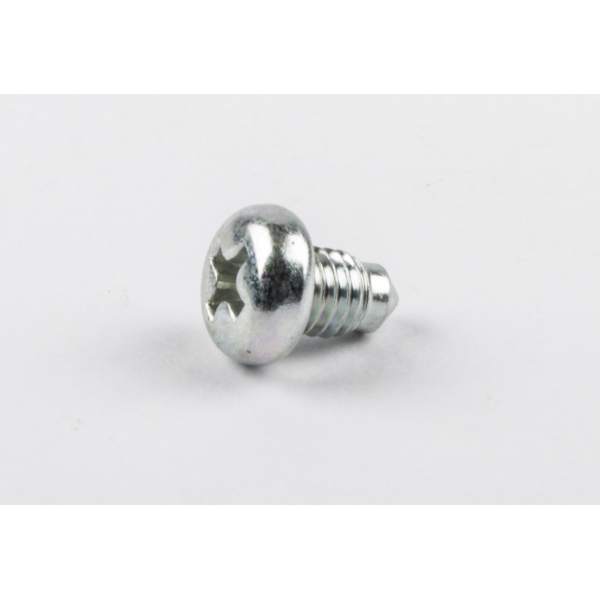

SCREW, SENSOR

13605-31210-000

13605-20C00-000

$6,97

Unit Price

HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600 0935135653600

$9,97

Unit Price

SPRING, THROTTLE SCREW
SPRING

13268-37420-000 1326837420000

$5,97

Unit Price

ADJUSTER

13267-37100-000

13267-25D00-000

$17,97

Unit Price

SCREW

02112-04163-000

02112-0416A-000

$2,97

Unit Price

WASHER, LOCK

08321-01043-000

08321-0104A-000

$2,97

Unit Price

SCREW, PILOT
SCREW, PILOT (1 7/8)

13279-45400-000 1327945400000

$20,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

PLUG

13357-36A00-000 1335736A00000

$8,97

Unit Price

99x

CARBURETOR ASSY

13200-05312-000 1320005312000

Not available

99x

CARBURETOR ASSY

13200-05313-000 1320005313000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (GS125ESK/ESL E24, MODEL M/R) of your Suzuki of GS. Let us know if you have any questions.
