INDICATORS (MODEL K / M / R E2)

TAIL LIGHT FOR SUZUKI GS 125 1982

WIRING HARNESS

Item numbers

LAMP ASSY, REAR COMBINATION

35710-05300-999 3571005300999

Not available

LAMP ASSY, REAR COMBINATION

35710-05340-000 3571005340000

Not available

LAMP ASSY, REAR COMBINATION

35710-05380-000 3571005380000

Not available

LENS

35712-17300-000 3571217300000

Not available

LENS

35712-36511-000 3571236511000

Not available

LENS

35712-39370-000 3571239370000

Not available

GASKET

35713-35300-000 3571335300000

Not available

SCREW

03212-04359-000 0321204359000

Not available

GASKET

35627-43010-000 3562743010000

$2,97

Unit Price

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

BULB(14V1.4W, T5)
BULB (12V, 23/8W)

09471-12035-000 0947112035000

$12,97

Unit Price

BULB(12V21/5W)
BULB

09471-12046-000 0947112046000

$16,97

Unit Price

DISCONTINUE
CUSHION

35764-26451-000 3576426451000

Not available

CUSHION

35765-05300-000 3576505300000

Not available

SPACER (6.1X8X12)

09180-06249-000 0918006249000

$3,97

Unit Price

WASHER

09160-05011-000

09160-05501-000

$2,97

Unit Price

WASHER

09160-05017-000

09160-05043-000

$3,97

Unit Price

WASHER(5.5X16X1.2)
WASHER (5.5X16X1.20)

09160-05037-000 0916005037000

$2,97

Unit Price

08310-0005A

08310-00053-000

Not available

BRACKET, LICENSE PLATE

35927-05300-000 3592705300000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

08310-0006A
NUT

08310-00063-000

Not available

08321-0106A
LOCK WASHER

08321-01063-000

Not available

PLUG

09250-20006-000 0925020006000

Not available

GROMMET

09308-09004-000 0930809004000

Not available

REFLEX REFLECTOR, REAR

35970-01A10-000 3597001A10000

Not available

DISCONTINUE

35970-17300-000

Not available

WASHER

08322-01053-000

08322-0105B-000

$3,97

Unit Price

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

08310-0005A

08310-00053-000

Not available

REFLEX REFLECTOR, REAR SIDE

35950-49410-000 3595049410000

Not available

WASHER, 5.2X16X1
WASHER (5.2X16X1.0)

09160-05013-000 0916005013000

$2,97

Unit Price

08310-0005A

08310-00053-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

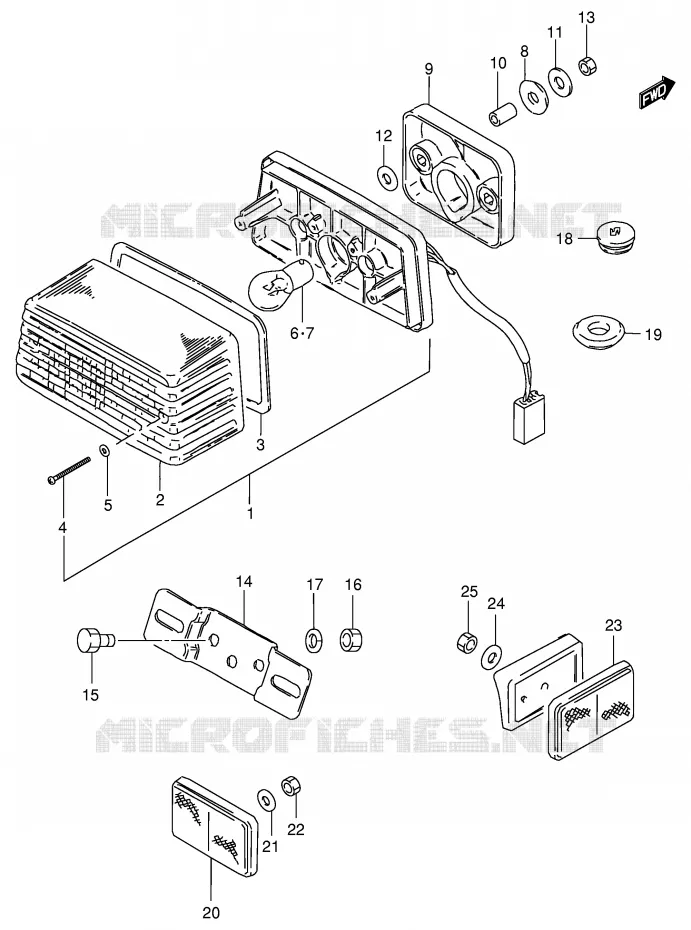

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki of GS. Let us know if you have any questions.

Select your Suzuki 1982 model
