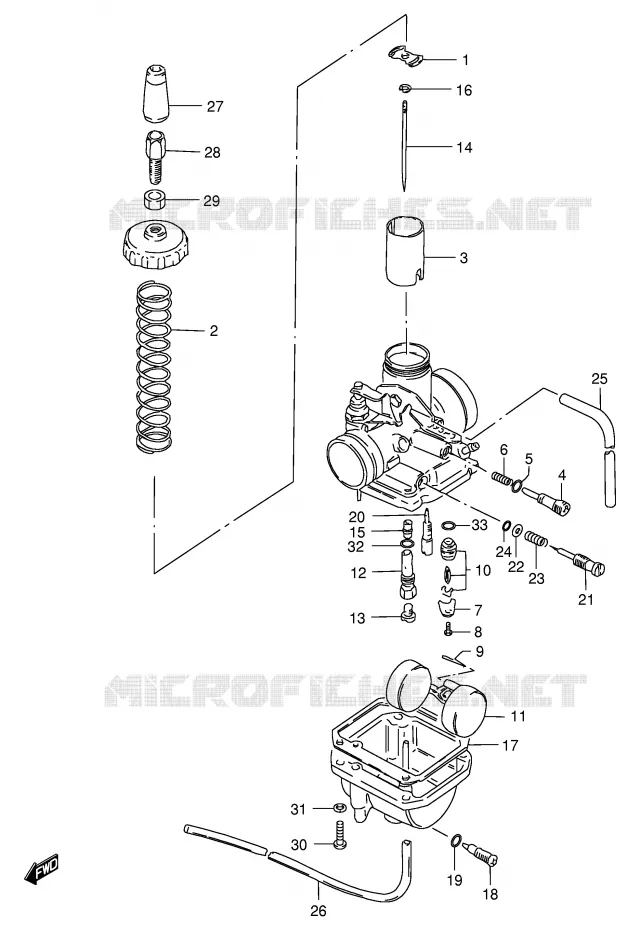

CARBURETOR (MODEL Z / D / F / K) FOR SUZUKI GS 125 1982

CARBURETOR (GS125ESK / ESL E24, MODEL M / R) REFER TO FIG.14B(C-8) FOR MODEL R P37

Item numbers

STOPPER, NEEDLE CLIP
CLIP, SPRING

13581-09210-000 1358109210000

$9,97

Unit Price

DISCONTINUE
SPRING

13573-05320-000 1357305320000

Not available

DISCONTINUE
THROTTLE VALVE (CA:1.5)

13551-05320-000 1355105320000

Not available

SCREW, THROTTLE STOP

13267-36600-000 1326736600000

$17,97

Unit Price

O RING

13295-33010-000 1329533010000

$6,97

Unit Price

SPRING

13268-35010-000 1326835010000

$6,97

Unit Price

PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000 1337346710000

$7,97

Unit Price

SCREW

02112-03066-000

02112-03063-000

$2,97

Unit Price

PIN, FLOAT
PIN

13254-01010-000 1325401010000

$5,97

Unit Price

VALVE ASSY, NEEDLE

13370-05320-000 1337005320000

$85,97

Unit Price

FLOAT

13250-05230-000 1325005230000

$48,97

Unit Price

HOLDER ASSY, JET

13385-05320-000 1338505320000

Not available

JET, MAIN (95)

09491-95005-000 0949195005000

$22,97

Unit Price

NEEDLE, JET

13383-05320-000 1338305320000

Not available

DISCONTINUE
JET, NEEDLE (O-4)

09494-00388-000 0949400388000

Not available

CLIP
E RING

13394-10010-000 1339410010000

$6,97

Unit Price

GASKET

13251-05320-000 1325105320000

$17,97

Unit Price

PLUG, DRAIN
SCREW, DRAIN

13247-02340-000 1324702340000

$8,97

Unit Price

O RING

13278-02340-000 1327802340000

$3,97

Unit Price

JET, PILOT
JET, PILOT (20)

09492-20009-000 0949220009000

$19,97

Unit Price

SCREW, PILOT

13279-47080-000

13279-47070-000

$19,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

HOSE

09352-50823-300

09352-50005-600

$11,97

Unit Price

HOSE, 3.5*6.5*600

13683-37420-000

09351-35653-600

$9,97

Unit Price

CAP

13681-16600-000

13681-16601-000

$16,97

Unit Price

ADJUSTER, CABLE

13577-48110-000 1357748110000

$12,97

Unit Price

NUT

13661-16600-000 1366116600000

$9,97

Unit Price

SCREW

02112-04166-000

02112-04163-000

$2,97

Unit Price

WASHER, LOCK

08321-21046-000

08321-0104A-000

$2,97

Unit Price

O RING

13246-43010-000

13246-43011-000

$6,97

Unit Price

O RING

13374-46710-000 1337446710000

$6,97

Unit Price

99x

CARBURETOR ASSY

13200-05320-000 1320005320000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL Z/D/F/K) of your Suzuki of GS. Let us know if you have any questions.
