FRONT FORK (GS125Z / D) REFER TO FIG.52A(H-13) FOR GS125UR E71

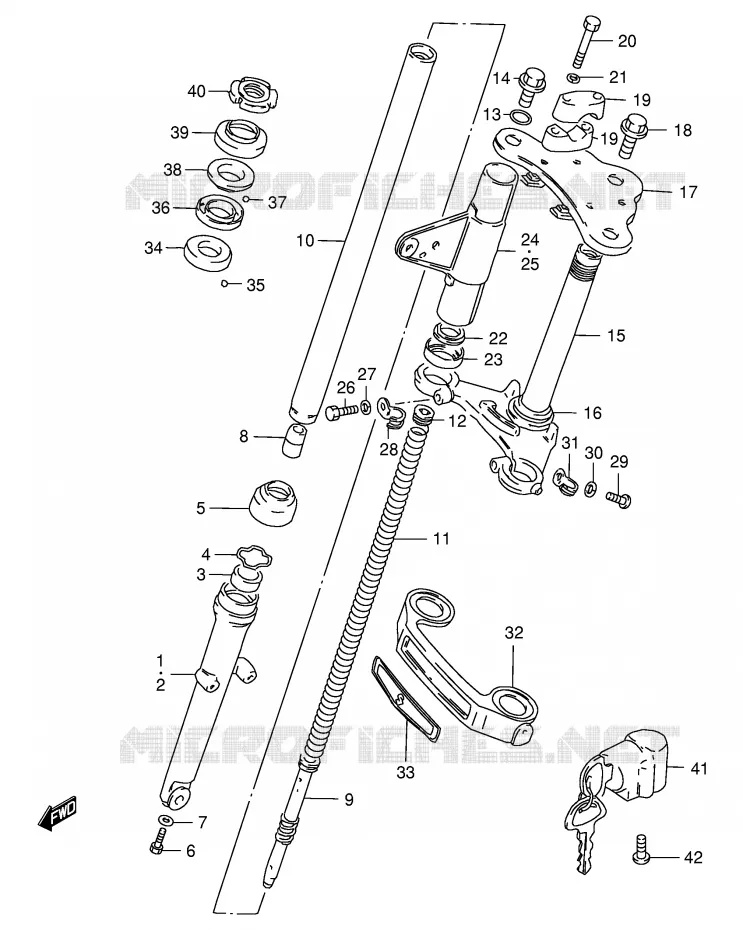

FRONT FORK (GS125UR E71) FOR SUZUKI GS 125 1985

FRONT FORK (GS125SR / ESR P37 '96.12~)

Item numbers

TUBE, OUTER RH

51130-36500-000 5113036500000

Not available

TUBE, OUTER LH

51140-05360-000 5114005360000

Not available

SEAL, OIL

51153-29400-000

51153-16F00-000

$23,97

Unit Price

RING, OIL SEAL STOPPER

51156-39260-000 5115639260000

Not available

DISCONTINUE
SEAL, DUST

51173-39610-000 5117339610000

Not available

BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000 5114716510000

$6,97

Unit Price

GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

PIECE, OIL LOCK

51195-36220-000 5119536220000

$17,97

Unit Price

CYLINDER

51146-05330-000 5114605330000

Not available

TUBE, INNER

51110-39680-000 5111039680000

Not available

SPRING

51171-05330-000 5117105330000

Not available

NUT

51353-36220-000 5135336220000

Not available

OIL PLUG O RING
O RING

09280-22001-000 0928022001000

$2,97

Unit Price

CAP

51351-39221-000 5135139221000

Not available

STEM, STEERING

51410-36231-000 5141036231000

Not available

RACE, STEERING OUTER LWR
OUTER RACE

51621-33001-000 5162133001000

$15,97

Unit Price

STEM HEAD, STEERING

51310-05330-291 5131005330291

Not available

BOLT

51352-39220-000 5135239220000

Not available

HOLDER, HANDLE UPR
HOLDER, HANDLE

56211-27200-291 5621127200291

$26,97

Unit Price

BOLT

01204-08557-000 0120408557000

$4,97

Unit Price

8 MM LOCK WASHER
LOCK WASHER

08321-01087-000 0832101087000

$2,97

Unit Price

CUSHION, HEAD LAMP BRACKET
CUSHION

51553-25210-000 5155325210000

$9,97

Unit Price

GUIDE, COVER

51551-10200-000 5155110200000

Not available

BRACKET, HEADLAMP RH

51530-05330-291 5153005330291

Not available

BRACKET, HEADLAMP LH

51540-05330-291 5154005330291

Not available

BOLT, FR FORK LWR(12X33)
BOLT

51451-28012-000 5145128012000

$16,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-01127-000 0832101127000

$3,97

Unit Price

CLIP

51455-36010-000 5145536010000

Not available

SCREW

02112-06107-000 0211206107000

$2,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-01067-000 0832101067000

$2,97

Unit Price

CLIP

51453-05110-000 5145305110000

Not available

COVER, FRONT FORK

51871-05351-291 5187105351291

Not available

EMBLEM, FR FORK COVER
EMBLEM

68211-38300-000 6821138300000

$23,97

Unit Price

RACE, STEERING INNER LWR
RACE, INNER LOWER

51611-33002-000 5161133002000

$15,97

Unit Price

STEEL BALL
STEEL BALL, LOWER

06111-08003-000 0611108003000

$1,97

Unit Price

RACE, STEERING INNER UPR
RACE, INNER UPPER

51611-20002-000 5161120002000

$11,97

Unit Price

BALL
STEEL BALL, UPPER

06111-06003-000 0611106003000

$2,97

Unit Price

RACE, STEERING OUTER UPR
RACE, OUTER UPPER

51621-28000-000 5162128000000

$11,97

Unit Price

DUST SEAL, STEERING UPR
DUST SEAL

51643-25001-000 5164325001000

$10,97

Unit Price

NUT, STEERING STEM(25X44X10)
NUT, STEERING STEM

51631-28000-000 5163128000000

$20,97

Unit Price

LOCK ASSY, STEERING

51910-25311-000 5191025311000

$39,97

Unit Price

SCREW

02112-35127-000 0211235127000

$2,97

Unit Price

99x

FRONT FORK ASSY

51100-053A0-291 51100053A0291

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (GS125UR E71) of your Suzuki of GS. Let us know if you have any questions.
