FAIRINGVER (GSX-S125ML:L8:P21) 291

FAIRINGVER (GSX-S125MLX:L8:P21) FOR SUZUKI GSX-S 125 2018

HEADLAMP HOUSING (GSX-S125ML:L8:P21)

Item numbers

COVER, FRAME, R(BLACK)

47111-23K00-291 4711123K00291

Not available

BRACKET, FRAME COVER FR, R

47160-23KA0-000 4716023KA0000

Not available

COVER, FRAME, L(BLACK)

47211-23K00-291 4721123K00291

Not available

SCREW, FRAME COVER

44513-23K00-000 4451323K00000

Not available

BRACKET, FRAME COVER FR, L

47260-23KA0-000 4726023KA0000

Not available

COVER COMP, FRAME UPPER RH(BLUE)

47310-23K50-YSF 4731023K50YSF

Not available

.EMBLEM, "125"(RED, BLUE)

68131-23K10-BJK 6813123K10BJK

Not available

.TAPE, FRAME COVER UPPER NO.1RH(BLUE)

68135-23K60-YSF 6813523K60YSF

Not available

.TAPE, FRAME COVER UPPER NO.2RH(BLUE)

68136-23K00-YSF 6813623K00YSF

Not available

CUSHION(10X24X13)

47312-37H00-000

47312-37H10-000

$5,97

Unit Price

COVER COMP, FRAME UPPER LH(BLUE)

47410-23K50-YSF 4741023K50YSF

Not available

.EMBLEM, "125"(RED, BLUE)

68131-23K10-BJK 6813123K10BJK

Not available

.TAPE, FRAME COVER UPPER NO.1LH(BLUE)

68145-23K60-YSF 6814523K60YSF

Not available

.TAPE, FRAME COVER UPPER NO.2LH(BLUE)

68146-23K00-YSF 6814623K00YSF

Not available

COVER, FRAME UPPER CTR(BLUE)

47511-23K00-YSF 4751123K00YSF

Not available

SCREW
SCREW(6X20)

09136-06105-000 0913606105000

$3,97

Unit Price

NUT

09148-04019-000

09148-04034-000

$3,97

Unit Price

NUT

09148-04019-000

09148-04034-000

$3,97

Unit Price

NUT

09148-05058-000 0914805058000

Not available

SPACER(6.5X10X7)

09180-06283-000 0918006283000

$3,97

Unit Price

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$4,97

Unit Price

CUSHION
CUSHION(9X18X9.5)

09320-09016-000 0932009016000

$3,97

Unit Price

CLIP
CLIP(5.9X20.5)

09409-06314-000 0940906314000

$3,97

Unit Price

CLIP
CLIP(5.9X20.5)

09409-06314-000 0940906314000

$3,97

Unit Price

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

BOLT

01550-0612A-000 015500612A000

$2,97

Unit Price

SCREW

03541-0412A-000 035410412A000

$2,97

Unit Price

SCREW

03541-0412A-000 035410412A000

$2,97

Unit Price

TAPE, FRAME COVER

47112-23K00-000 4711223K00000

Not available

CUSHION, FRAME COVER

47117-10J00-000 4711710J00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

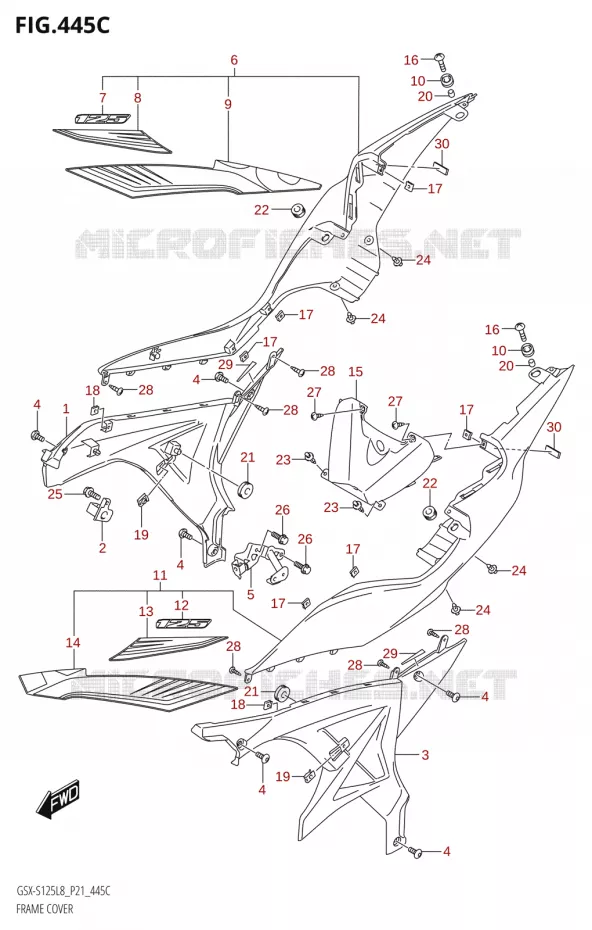

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRINGVER (GSX-S125MLX:L8:P21) of your Suzuki GSX-S 125 of GSX-S. Let us know if you have any questions.
