Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI GSX-S 125 2018

CRANKSHAFT

Item numbers

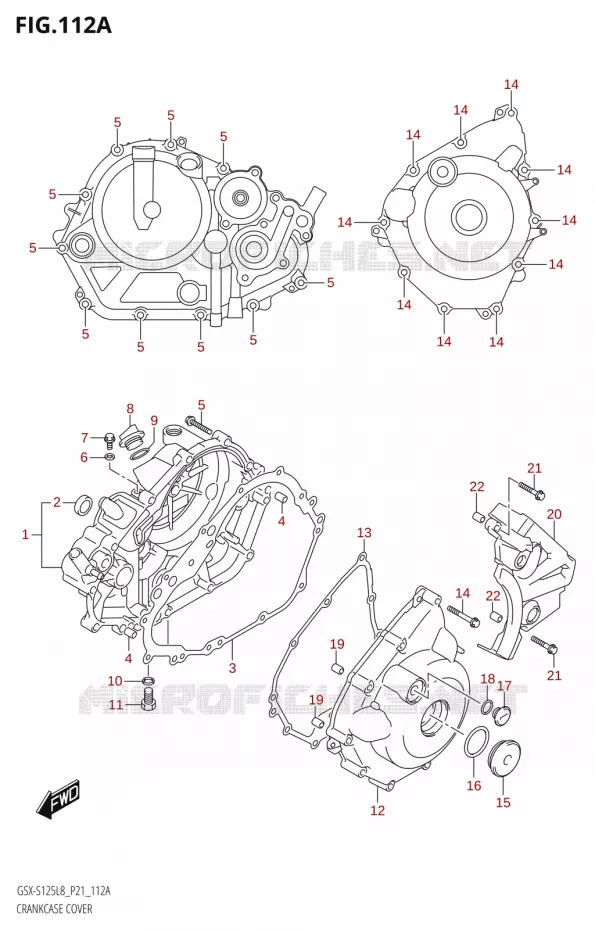

CRANKCASE COVER Suzuki MOTO 125 GSX-S 2018 GSX-S125MLX L8 (P21)
1
2
3
4
4
5
5
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
14
14
14
14
14
14
14
14
14
14
15
16
17
18
19
19
20
21
21
22
22
1
COVER, CLUTCH

11340-12K30-000   1134012K30000

1134012K30000
Not available
2
.LENS,OIL LEVEL CHECK
.LENS, OIL LEVEL CHECK

11971-45010-000   1197145010000

1197145010000

Unit Price

3
GASKET, CLUTCH COVER

11482-12K00-000   1148212K00000

1148212K00000
Not available
4
PIN(6.3X8X12)

09206-08008-000   0920608008000

0920608008000

Unit Price

5
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

6
GASKET,OIL GALLERY<br />GASKET(6.2X13X1.2)
GASKET, OIL GALLERY
GASKET(6.2X13X1.2)

09168-06018-000   0916806018000

0916806018000

Unit Price

7
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

8
PLUG, ENGINE OIL FILLER

11342-25G00-000   1134225G00000

1134225G00000
Not available
9
O-RING,OIL FILLER<br />O RING(D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING(D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

10
GASKET, OIL DRAIN(NA)

09168-10L02-000   0916810L02000

0916810L02000
Not available
11
BOLT

01500-1016A-000   015001016A000

015001016A000
Not available
12
COVER, MAGNETO

11351-12K20-000   1135112K20000

1135112K20000
Not available
13
GASKET, MAGNETO COVER

11483-12K00-000   1148312K00000

1148312K00000
Not available
14
BOLT
BOLT

01547-0640A-000   015470640A000

015470640A000

Unit Price

15
PLUG

09259-36016-000   0925936016000

0925936016000
Not available
16
O-RING,CRANK SHAFT<br />O-RING(D:3.1,ID:32.7)
O-RING, CRANK SHAFT
O-RING(D:3.1, ID:32.7)

09280-33004-000   0928033004000

0928033004000

Unit Price

17
PLUG, TOP

11352-22J00-000   1135222J00000

1135222J00000
Not available
18
O RING, 02.5, ID:13.8

09280-14003-000  

09280-14011-000
 0928014003000

Unit Price

19
PIN(6.3X8X12)

09206-08008-000   0920608008000

0920608008000

Unit Price

20
COVER, ENGINE SPROCKET

11360-12K00-000   1136012K00000

1136012K00000
Not available
21
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

22
PIN(6.3X8X12)

09206-08008-000   0920608008000

0920608008000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki GSX-S 125 of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 125 GSX-S 2018
