SWINGARM (RM125N)

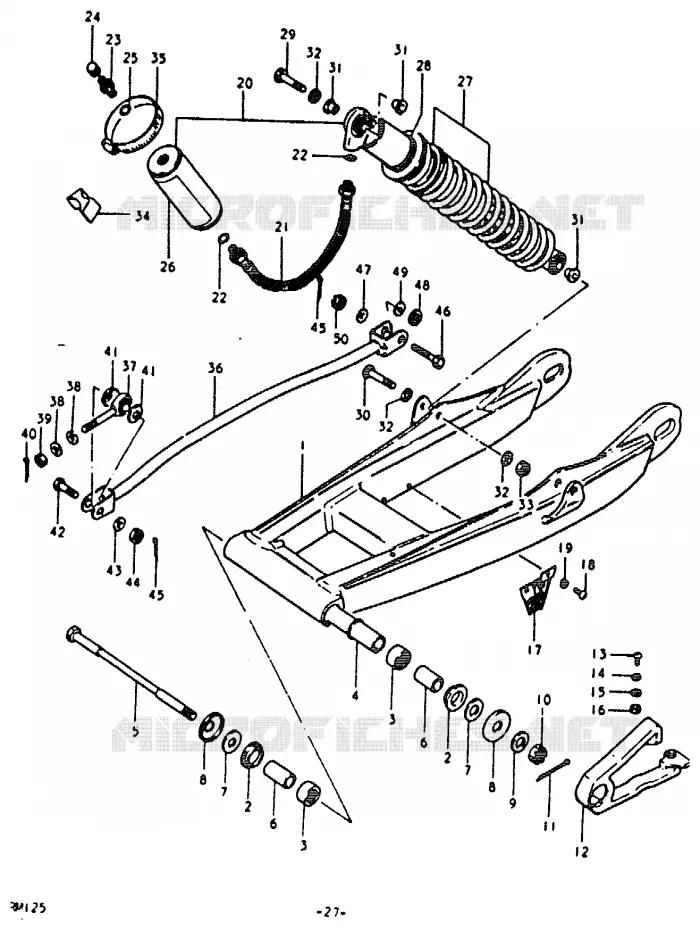

SWINGARM (RM125T) FOR SUZUKI RM 125 1980

CHAIN GUIDE (RM125N)

REAR SWINGING ARM SET

61100-40871-000 6110040871000

Not available

DISCONTINUE
BUSH

61261-40201-000 6126140201000

Not available

BEARING

09263-17011-000

09263-17027-000

$27,97

Unit Price

.SPACER, CENTER

61280-40200-000 6128040200000

Not available

DISCONTINUE
SHAFT, PIVOT

61211-40201-000 6121140201000

Not available

DISCONTINUE
SPACER

61251-40200-000 6125140200000

Not available

SHIM
THRUST WASHER

08211-12282-000 0821112282000

$3,97

Unit Price

COVER SWGARM PIVOT

61262-40200-000

61262-03B01-000

$15,97

Unit Price

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

NUT

08314-41128-000

08314-4012A-000

$4,97

Unit Price

04111-20308-000

04111-2030A-000

$2,97

Unit Price

BUFFER, CHAIN DEFENSE

61273-40233-000 6127340233000

Not available

.SCREW

02112-05108-000 0211205108000

Not available

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

SPACER(5.5X8X4)

09180-05015-000

09180-05046-000

$4,97

Unit Price

GUIDE BRAKE CABLE

58622-40200-000 5862240200000

Not available

.SCREW

02112-05108-000 0211205108000

Not available

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

SHOCK ABSORBER ASSY, REAR

62100-40230-000 6210040230000

Not available

.HOSE

62280-40220-000 6228040220000

Not available

O RING

62154-40200-000 6215440200000

Not available

DISCONTINUE
VALVE

51293-49001-000 5129349001000

Not available

CAP, VALVE AIR
VALVE, CAP

51294-40400-000 5129440400000

$9,97

Unit Price

DISCONTINUE
O RING

51117-41211-000 5111741211000

Not available

.TANK

62270-40200-000 6227040200000

Not available

SPRING

62210-40220-000 6221040220000

Not available

STOP, SPRING

62192-41630-000 6219241630000

Not available

BOLT

09100-08150-000 0910008150000

Not available

DISCONTINUE
BOLT

09100-08151-000 0910008151000

Not available

DISCONTINUE
SPACER

62316-40200-000 6231640200000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

NUT

08319-21088-000

08319-2108A-000

$3,97

Unit Price

DISCONTINUE
CUSHION

62331-41630-000 6233141630000

Not available

CLAMP

62332-41631-000 6233241631000

Not available

TORQUL LINK, REAR

64310-40210-000 6431040210000

Not available

BEARING

64337-40400-000 6433740400000

Not available

WASHER

09164-08011-000 0916408011000

$5,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

DISCONTINUE
DUST SEAL

64338-40400-000 6433840400000

Not available

DISCONTINUE
BOLT

09101-08003-000 0910108003000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

NUT

08314-41088-000

08314-4008B-000

$3,97

Unit Price

04111-20208-000

04111-2020A-000

$2,97

Unit Price

BOLT

09101-08010-000 0910108010000

Not available

WASHER

08322-11088-000

08322-01087-000

$3,97

Unit Price

DUST SEAL

64339-40400-000 6433940400000

Not available

WASHER(8.5X16X2.6)

09160-08050-000

09160-08144-000

$4,97

Unit Price

NUT

08314-41088-000

08314-4008B-000

$3,97

Unit Price
