Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION (MODEL E) NOTE 1: WHEN YOU USE THE COUNTERSHAFT ASSY (24120-14502),

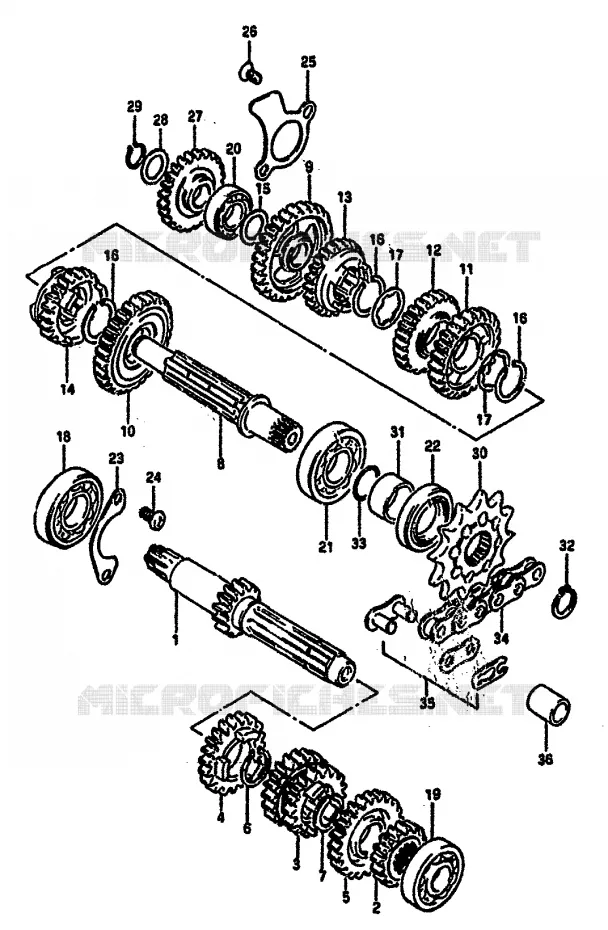

TRANSMISSION (MODEL F) FOR SUZUKI RM 125 1985

GEAR SHIFTING ASSY

COUNTERSHAFT (NT:14)

24121-14511-000 2412114511000

Not available

GEAR, 2ND DRIVE (NT:16)

24221-14510-000 2422114510000

Not available

GEAR, 3/4 DRIVE (NT:18/20)

24231-14510-000 2423114510000

Not available

DISCONTINUED

24250-14510-000 2425014510000

Not available

GEAR, 6TH DRIVE (NT:22)

24261-14510-000 2426114510000

Not available

CIRCLIP

09380-20007-000 0938020007000

$4,97

Unit Price

DISCONTINUE
CIRCLIP

09380-20012-000 0938020012000

Not available

DRIVESHAFT

24131-14510-000 2413114510000

Not available

GEAR, 1ST DRIVEN (NT:30)

24311-14511-000 2431114511000

Not available

GEAR, 2ND DRIVEN (NT:28)

24321-14510-000 2432114510000

Not available

GEAR, 3RD DRIVEN (NT:26)

24331-14510-000 2433114510000

Not available

GEAR, 4TH DRIVEN (NT:25)

24341-14510-000 2434114510000

Not available

GEAR, 5TH DRIVEN (NT:23)

24351-14510-000 2435114510000

Not available

GEAR, 6TH DRIVEN (NT:22)

24361-14510-000 2436114510000

Not available

WASHER

08211-15261-000

09181-15195-000

$4,97

Unit Price

4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000 0938022006000

$4,97

Unit Price

DRIVEN GEAR WASHER
WASHER

09167-22011-000 0916722011000

$4,97

Unit Price

BEARING

09262-20062-000

09262-20121-000

$43,97

Unit Price

BALL BEARING
BEARING, LH

08113-60020-000 0811360020000

$22,97

Unit Price

BEARING, FRONT WHEEL

08113-62027-000

08123-6202B-000

$25,97

Unit Price

DISCONTINUE
BEARING, LH

09262-20043-000 0926220043000

Not available

DRIVE SHAFT OIL SEAL
OIL SEAL

09283-25035-000 0928325035000

$10,97

Unit Price

RETAINER, CNTR SHAFT BEARING
HOLDER, BEARING

24741-48000-000 2474148000000

$7,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

HOLDER, BEARING

24751-14102-000 2475114102000

Not available

SCREW

02122-06128-000

02122-06127-000

$3,97

Unit Price

GEAR, KICK IDLE (NT:28)

26260-14100-000 2626014100000

Not available

SHIM(15X24X1)

08211-15241-000

09181-15166-000

$5,97

Unit Price

CIRCLIP

08331-31159-000

08331-3115A-000

$3,97

Unit Price

SPROCKET, ENGINE (NT:11)

27511-14100-000 2751114100000

Not available

SPROCKET, ENGINE (NT:12)

27511-14110-000 2751114110000

Not available

SPROCKET, ENGINE (NT:13)

27511-14120-000 2751114120000

Not available

ENG SPROCKET SPACER
SPACER

09180-20039-000 0918020039000

$12,97

Unit Price

CIRCLIP

09380-20007-000 0938020007000

$4,97

Unit Price

DR SHAFT BRG O RING
O RING

09280-20001-000 0928020001000

$3,97

Unit Price

DISCONTINUE

27600-14510-000

Not available

JOINT (RK)

27620-10221-000 2762010221000

Not available

DISCONTINUE

27620-36111-000

Not available

CUSHION, CHAIN

09180-12108-000 0918012108000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
