Parts catalogue

Parts diagram

* COLOR CHART *

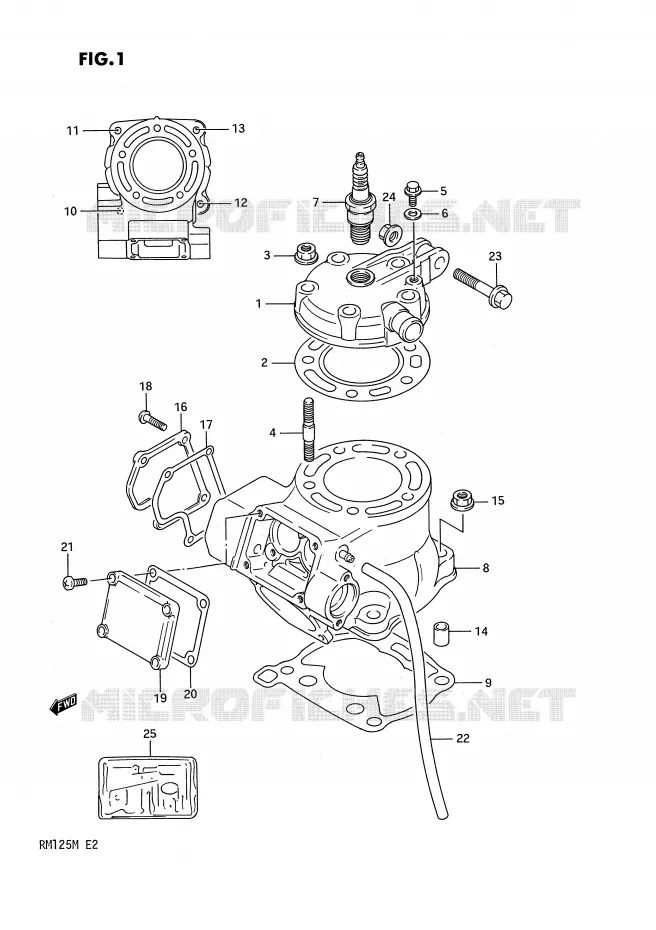

CYLINDER (MODEL K) FOR SUZUKI RM 125 1991

CYLINDER (MODEL L) REFER TO FIG.1B (B-4) FOR MODEL M

CYLINDER (MODEL K) Suzuki MOTO 125 RM 1991 RM125M(E2)
1
DISCONTINUE
HEAD, CYLINDER

11111-27C03-000   1111127C03000

1111127C03000
Not available
2
GASKET, CYLINDER HEAD

11141-27C00-000   1114127C00000

1114127C00000

Unit Price

3
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

4
BOLT, STUD 8X35
STUD BOLT (8X35)

09108-08198-000   0910808198000

0910808198000

Unit Price

5
UNION BOLT
BOLT, AIR DUCT

09360-06007-000   0936006007000

0936006007000

Unit Price

6
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

7
SPARK PLUG (NGK, BR9EV)

09482-00115-000   0948200115000

0948200115000
Not available
7
SPARK PLUG (NGK, B9EGV)

09482-00209-000   0948200209000

0948200209000
Not available
7
SPARK PLUG (ND, W27ES-ZU)

09482-00396-111   0948200396111

0948200396111
Not available
8
CYLINDER

11200-27810-000   1120027810000

1120027810000
Not available
9
GASKET, CYLINDER

11241-27C01-000  

11241-27C10-000
 1124127C01000

Unit Price

10
BOLT, STUD

01421-08258-000  

01421-0825A-000
 0142108258000

Unit Price

11
STUD BOLT L:30<br />STUD BOLT (8X30)
STUD BOLT L:30
STUD BOLT (8X30)

09108-08142-000   0910808142000

0910808142000

Unit Price

12
BOLT, STUD

01421-08358-000  

01421-0835A-000
 0142108358000

Unit Price

13
STUD BOLT L:40<br />STUD BOLT (8X40)
STUD BOLT L:40
STUD BOLT (8X40)

09108-08144-000   0910808144000

0910808144000

Unit Price

14
PIN

04211-11149-000   0421111149000

0421111149000

Unit Price

15
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

16
COVER, CYLINDER NO.1

11231-27C00-000   1123127C00000

1123127C00000
Not available
17
DISCONTINUED

11233-27C00-000   1123327C00000

1123327C00000
Not available
18
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

19
DISCONTINUED

11248-12C00-000   1124812C00000

1124812C00000
Not available
20
GASKET,CYL COVER NO.2<br />GASKET, CYLINDER COVER NO.2
GASKET, CYL COVER NO.2
GASKET, CYLINDER COVER NO.2

11238-01B30-H17   1123801B30H17

1123801B30H17

Unit Price

21
SCREW

02112-05168-000  

02112-05167-000
 0211205168000

Unit Price

22
DISCONTINUE<br />HOSE (4X7X600)
DISCONTINUE
HOSE (4X7X600)

09352-40703-600  

0935240703600
Not available
23
BOLT

01517-08408-000  

0151708408000
Not available
24
NUT

08316-16088-000  

08316-10087-000
 0831616088000

Unit Price

25
DISCONTINUE

11400-27874-000  

1140027874000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
