EXHAUST VALVE

CRANKCASE (MODEL K) FOR SUZUKI RM 125 1991

CRANKCASE (MODEL L / M)

Item numbers

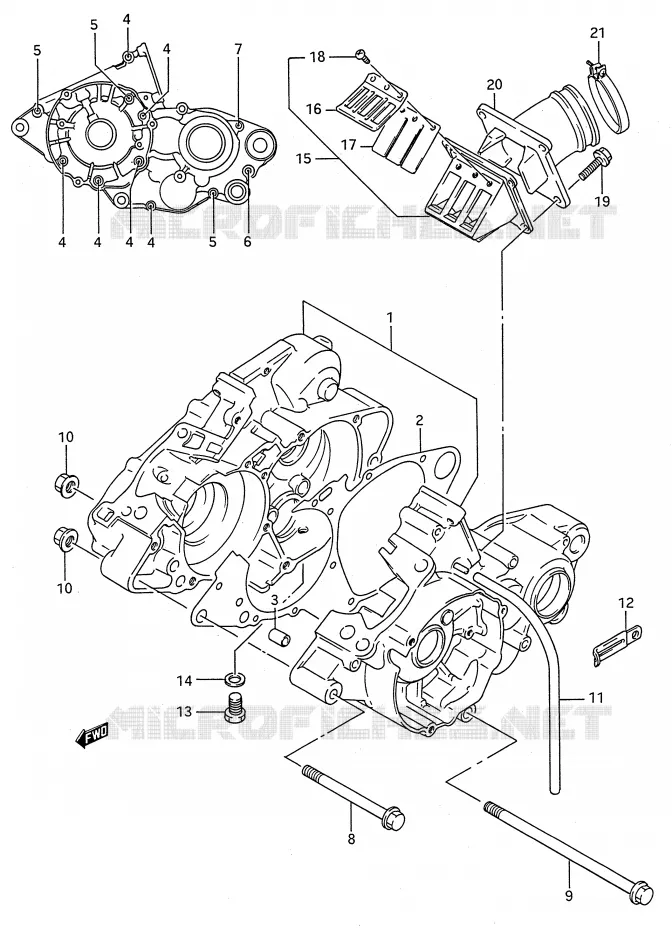

CRANKCASE (MODEL K) Suzuki MOTO 125 RM 1991 RM125M(E28)
1
2
3
4
4
4
4
4
4
5
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
DISCONTINUE

11300-27870-000  

1130027870000
Not available
2
.GASKET, CRANKCASE

11481-27C00-000   1148127C00000

1148127C00000
Not available
3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
BOLT,6X45<br />BOLT
BOLT, 6X45
BOLT

01547-06457-000   0154706457000

0154706457000

Unit Price

5
BOLT,6X55<br />BOLT
BOLT, 6X55
BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

6
BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

7
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

8
BOLT (8X90)

09103-08072-000   0910308072000

0910308072000
Not available
9
DISCONTINUE
BOLT (8X150)

09103-08113-000   0910308113000

0910308113000
Not available
10
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

11
DISCONTINUE<br />HOSE, BREATHER (4X7X600)
DISCONTINUE
HOSE, BREATHER (4X7X600)

09352-40703-600  

0935240703600
Not available
12
CLAMP(L:65)

09404-06401-000  

09404-06039-000
 0940406401000

Unit Price

13
BOLT

01107-08167-000  

01500-0816B-000
 0110708167000

Unit Price

14
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

15
VALVE ASSY, REED

13150-27C01-000   1315027C01000

1315027C01000
Not available
16
STOPPER, REED VALVE

13152-27C01-000   1315227C01000

1315227C01000
Not available
17
DISCONTINUE
VALVE, REED

13153-27C00-000   1315327C00000

1315327C00000
Not available
18
SCREW

02112-33088-000   0211233088000

0211233088000
Not available
19
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

20
DISCONTINUE
PIPE, INTAKE

13110-27C00-000   1311027C00000

1311027C00000
Not available
21
INLET PIPE CLAM<br />CLAMP REFER TO FIG.3A (B-8) FOR MODE
INLET PIPE CLAM
CLAMP REFER TO FIG.3A (B-8) FOR MODE

09402-50306-000   0940250306000

0940250306000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
