CARBURETOR (MODEL N / P) REFER TO FIG.6A(B-12) FOR MODEL R/S

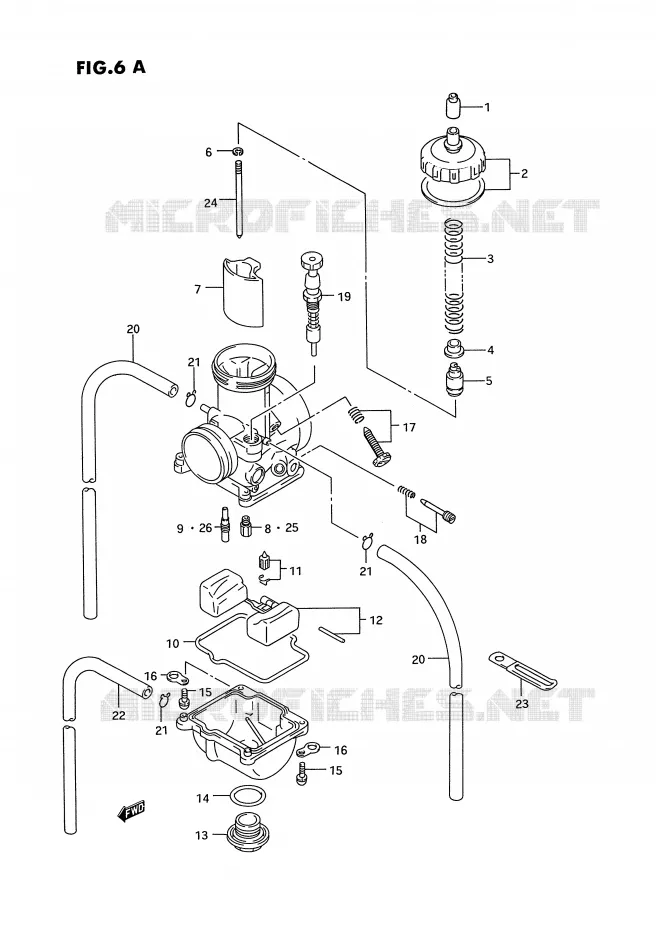

CARBURETOR (MODEL R / S) FOR SUZUKI RM 125 1992

AIR FILTER (MODEL N) REFER TO FIG.7A(B-16) FOR MODEL P/R/S

CAP, CARBURETOR

13681-43D30-000 1368143D30000

$18,97

Unit Price

DISCONTINUE
CAP SET, TOP

13260-43D30-000 1326043D30000

Not available

DISCONTINUE
SPRING, THROTTLE VALVE

13573-43D30-000 1357343D30000

Not available

COLLAR, THROTTLE VALVE

13424-43D30-000 1342443D30000

$11,97

Unit Price

HOLDER, CABLE

13581-43D30-000 1358143D30000

$39,97

Unit Price

CLIP, NEEDLE

13394-28E00-000 1339428E00000

$7,97

Unit Price

DISCONTINUE
VALVE, THROTTLE

13551-43D30-000 1355143D30000

Not available

JET, MAIN (168)

09491-33010-000 0949133010000

$33,97

Unit Price

JET, MAIN (180)

09491-36008-000 0949136008000

$33,97

Unit Price

JET, SLOW, 50
JET, PILOT (50)

09492-50023-000 0949250023000

$25,97

Unit Price

JET, SLOW(52)
JET, PILOT (52)

09492-52011-000 0949252011000

$25,97

Unit Price

DISCONTINUE
GASKET, FLOAT CHAMBER

13696-28E00-000 1369628E00000

Not available

VALVE SET, FLOAT

13370-43D30-000 1337043D30000

$84,97

Unit Price

DISCONTINUE
FLOAT SET

13240-28E00-000 1324028E00000

Not available

BOLT, DRAIN

13247-28E00-000 1324728E00000

$29,97

Unit Price

O RING

13246-28E00-000 1324628E00000

$8,97

Unit Price

SCREW

02112-34163-000

02112-3416B-000

$3,97

Unit Price

PLATE

13693-28E00-000 1369328E00000

$9,97

Unit Price

SCREW SET, STOP

13270-43D30-000 1327043D30000

$29,97

Unit Price

SCREW SET, AIR

13280-43D30-000 1328043D30000

$39,97

Unit Price

STARTER VALVE

13410-43D30-000 1341043D30000

$138,97

Unit Price

HOSE(4X7X620)

13686-28E00-000

13686-36E00-000

$17,97

Unit Price

CLIP

09401-06101-000 0940106101000

$3,97

Unit Price

HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600 0935135653600

$9,97

Unit Price

CLAMP, L:120 T:1.0

09404-08405-000

09404-08420-000

$4,97

Unit Price

CLAMP, L:82

09404-08418-000

09404-08206-000

$4,97

Unit Price

NEEDLE SET, JET

13380-43D30-000 1338043D30000

Not available

DISCONTINUE
NEEDLE, JET (R1469MS)

13383-28E00-000 1338328E00000

Not available

DISCONTINUE
NEEDLE, JET (R1469NS)

13383-28E10-000 1338328E10000

Not available

DISCONTINUE
NEEDLE, JET (R1470MS)

13383-28E20-000 1338328E20000

Not available

NEEDLE(R1470NS)
NEEDLE, JET (R1470NS)

13383-28E30-000 1338328E30000

Not available

DISCONTINUE
NEEDLE, JET (R1471MS)

13383-28E40-000 1338328E40000

Not available

DISCONTINUE
NEEDLE, JET (R1471NS)

13383-28E50-000 1338328E50000

Not available

NEEDLE, JET (R1468NS)

13383-43D30-000 1338343D30000

Not available

DISCONTINUE
NEEDLE, JET (R1468MS)

13383-43D40-000 1338343D40000

Not available

DISCONTINUE
JET NEEDLE (OPT) (R1467NS)

13383-43D50-000 1338343D50000

Not available

NEEDLE, JET (R1467MS)

13383-43D60-000 1338343D60000

Not available

JET, MAIN (145)

09491-29014-000 0949129014000

$25,97

Unit Price

JET, MAIN (150)

09491-30018-000 0949130018000

$33,97

Unit Price

JET, MAIN (152)

09491-30019-000 0949130019000

$33,97

Unit Price

JET, MAIN (155)

09491-31012-000 0949131012000

$33,97

Unit Price

JET, MAIN (158)

09491-31013-000 0949131013000

$33,97

Unit Price

JET, MAIN (160)

09491-32010-000 0949132010000

$31,97

Unit Price

JET, MAIN (162)

09491-32011-000 0949132011000

$33,97

Unit Price

JET, MAIN (165)

09491-33009-000 0949133009000

$25,97

Unit Price

JET, MAIN (168)

09491-33010-000 0949133010000

$33,97

Unit Price

JET, MAIN (172)

09491-34011-000 0949134011000

$33,97

Unit Price

JET, MAIN (175)

09491-35009-000 0949135009000

$33,97

Unit Price

JET, MAIN (178)

09491-35010-000 0949135010000

$33,97

Unit Price

JET, MAIN (180)

09491-36008-000 0949136008000

$33,97

Unit Price

JET, MAIN (185)

09491-37008-000 0949137008000

$29,97

Unit Price

JET, MAIN (190)

09491-38011-000 0949138011000

$33,97

Unit Price

JET, MAIN (195)

09491-39001-000 0949139001000

$33,97

Unit Price

JET, MAIN
JET, MAIN (200)

09491-40013-000 0949140013000

$32,97

Unit Price

JET, MAIN (148)

09491-29015-000 0949129015000

Not available

JET, MAIN (170)

09491-34010-000 0949134010000

$33,97

Unit Price

JET, SLOW, 35
JET, PILOT (35)

09492-35019-000 0949235019000

$33,97

Unit Price

JET, SLOW, 40
JET, PILOT (40)

09492-40022-000 0949240022000

$33,97

Unit Price

JET, SLOW
JET, PILOT (45)

09492-45032-000 0949245032000

$22,97

Unit Price

JET, SLOW, 50
JET, PILOT (50)

09492-50023-000 0949250023000

$25,97

Unit Price

JET, SLOW(52)
JET, PILOT (52)

09492-52011-000 0949252011000

$25,97

Unit Price

JET, SLOW, 55
JET, PILOT (55)

09492-55017-000 0949255017000

$25,97

Unit Price

JET, SLOW, 60
JET, PILOT (60)

09492-60016-000 0949260016000

$33,97

Unit Price

JET, PILOT (65)

09492-65008-000 0949265008000

Not available

DISCONTINUE
JET, PILOT (70)

09492-70009-000 0949270009000

Not available

99x

CARBURETOR ASSY

13200-43D30-000 1320043D30000

Not available

99x

DISCONTINUE
CARBURETOR ASSY

13200-43D40-000 1320043D40000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
