CRANKSHAFT

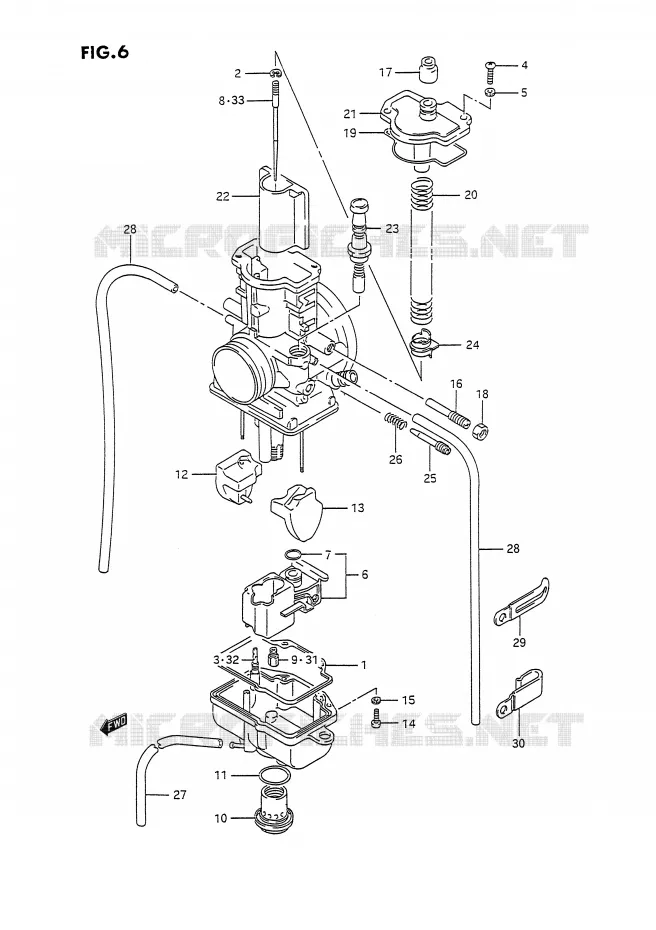

CARBURETOR (MODEL N / P) FOR SUZUKI RM 125 1993

CARBURETOR (MODEL R / S)

DISCONTINUE
O RING, FLOAT CHAMBER

13696-26C00-000 1369626C00000

Not available

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

JET, PILOT (50)

09492-50018-000 0949250018000

$33,97

Unit Price

DISCONTINUE
JET, PILOT (55)

09492-55013-000 0949255013000

Not available

SCREW

02112-04126-000

02112-0412A-000

$2,97

Unit Price

WASHER, LOCK

08321-21046-000

08321-0104A-000

$2,97

Unit Price

VALVE ASSY, NEEDLE

13370-27C00-000

Not available

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

DISCONTINUE
NEEDLE, JET (6AEJ02-63-3)

13383-27C30-000 1338327C30000

Not available

NEEDLE, JET (6BEJ6-66-3)

13383-43D00-000 1338343D00000

Not available

JET, MAIN (330)

09491-66002-000 0949166002000

$22,97

Unit Price

JET, MAIN (360)

09491-72011-000 0949172011000

$19,97

Unit Price

DISCONTINUE
CAP, DRAIN

13247-27C00-000 1324727C00000

Not available

DISCONTINUE
O RING

13389-27C00-000 1338927C00000

Not available

DISCONTINUE
FLOAT, RH

13252-01B20-000 1325201B20000

Not available

DISCONTINUE
FLOAT, LH

13252-01B21-000 1325201B21000

Not available

SCREW

02112-03086-000

02112-0308A-000

$3,97

Unit Price

WASHER, LOCK

08321-21036-000

08321-2103B-000

$2,97

Unit Price

DISCONTINUE
ADJUSTER

13279-26C00-000 1327926C00000

Not available

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

NUT

13607-47070-000 1360747070000

$5,97

Unit Price

O RING, TOP CAP

13251-26C00-000 1325126C00000

$17,97

Unit Price

DISCONTINUE
SPRING, THROTTLE VALVE

13573-26C00-000 1357326C00000

Not available

CAP, TOP

13261-01B30-000 1326101B30000

Not available

DISCONTINUE
VALVE, THROTTLE (CA:4.0)

13551-27C00-000 1355127C00000

Not available

DISCONTINUE
PLUNGER

13411-26C00-000 1341126C00000

Not available

DISCONTINUE
RING

13424-26C00-000 1342426C00000

Not available

SCREW, AIR
SCREW, PILOT (1 1/2)

13267-09400-000 1326709400000

$12,97

Unit Price

SPRING

13268-35010-000 1326835010000

$6,97

Unit Price

HOSE, 3X5X600

09351-30503-600

09351-30001-600

$8,97

Unit Price

HOSE, 3.5*6.5*600
HOSE, AIR VENT (3.5X6.5X600)

09351-35653-600 0935135653600

$9,97

Unit Price

CLAMP(L:65)

09404-06402-000

09404-06039-000

$3,97

Unit Price

CLAMP

09403-06307-000

09403-06329-000

$5,97

Unit Price

JET, MAIN (300)

09491-60007-000 0949160007000

$24,97

Unit Price

JET, MAIN (320)

09491-64002-000 0949164002000

$22,97

Unit Price

JET, MAIN (330)

09491-66002-000 0949166002000

$22,97

Unit Price

JET, MAIN (340)

09491-68002-000 0949168002000

$22,97

Unit Price

JET, MAIN (350)

09491-70011-000 0949170011000

$22,97

Unit Price

JET, MAIN (360)

09491-72011-000 0949172011000

$19,97

Unit Price

JET, MAIN
JET, MAIN (370)

09491-74003-000 0949174003000

$22,97

Unit Price

JET, MAIN (380)

09491-76003-000 0949176003000

$22,97

Unit Price

JET, MAIN (400)

09491-80010-000 0949180010000

$22,97

Unit Price

JET, MAIN, 440
JET, MAIN (410)

09491-88001-000 0949188001000

$31,97

Unit Price

DISCONTINUE
JET, MAIN (290)

09491-58002-000 0949158002000

Not available

JET, MAIN (310)

09491-62005-000 0949162005000

Not available

JET, MAIN (390)

09491-78005-000 0949178005000

Not available

JET, PILOT (50)

09492-50018-000 0949250018000

$33,97

Unit Price

DISCONTINUE
JET, PILOT (45)

09492-45026-000 0949245026000

Not available

DISCONTINUE
JET, PILOT (55)

09492-55013-000 0949255013000

Not available

JET, PILOT (60)

09492-60013-000 0949260013000

Not available

JET, PILOT (65)

09492-65007-000 0949265007000

Not available

DISCONTINUE
JET, PILOT (70)

09492-70008-000 0949270008000

Not available

NEEDLE, JET (6AEJ02-64)

13383-27C10-000 1338327C10000

Not available

DISCONTINUE
NEEDLE, JET (6AEJ02-63)

13383-27C30-000 1338327C30000

Not available

NEEDLE, JET (6AEJ02-62)

13383-27C40-000 1338327C40000

Not available

NEEDLE, JET (6BEJ6-65)

13383-43D10-000 1338343D10000

Not available

NEEDLE, JET (6BEJ6-67)

13383-43D20-000 1338343D20000

Not available

99x

DISCONTINUE
CARBURETOR ASSY

13200-43D10-000 1320043D10000

Not available

99x

CARBURETOR ASSY

13200-43D20-000 1320043D20000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
