Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKSHAFT

CARBURETOR (MODEL N / P) FOR SUZUKI RM 125 1993

CARBURETOR (MODEL R / S)

Item numbers

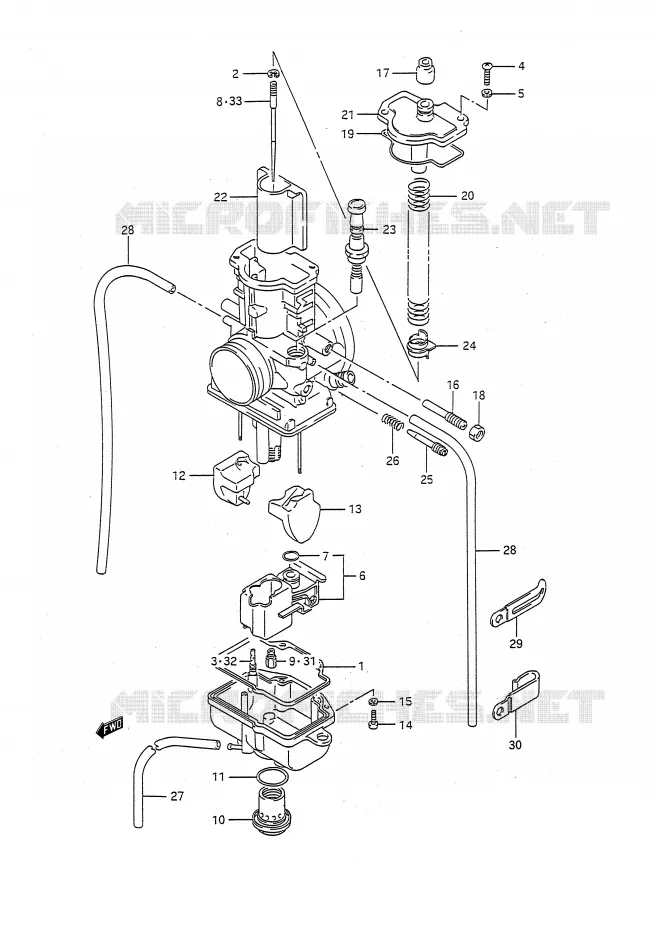

CARBURETOR (MODEL N/P) Suzuki MOTO 125 RM 1993 RM125P(E28)
1
2
3
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
31
31
31
31
31
31
31
31
31
31
31
31
31
32
32
32
32
32
32
33
33
33
33
33
1
DISCONTINUE
O RING, FLOAT CHAMBER

13696-26C00-000   1369626C00000

1369626C00000
Not available
2
CLIP,NEEDLE<br />E RING
CLIP, NEEDLE
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

3
JET, PILOT (50)

09492-50018-000   0949250018000

0949250018000

Unit Price

3
DISCONTINUE
JET, PILOT (55)

09492-55013-000   0949255013000

0949255013000
Not available
4
SCREW

02112-04126-000  

02112-0412A-000
 0211204126000

Unit Price

5
WASHER, LOCK

08321-21046-000  

08321-0104A-000
 0832121046000

Unit Price

6
VALVE ASSY, NEEDLE

13370-27C00-000  

1337027C00000
Not available
7
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

8
DISCONTINUE
NEEDLE, JET (6AEJ02-63-3)

13383-27C30-000   1338327C30000

1338327C30000
Not available
8
NEEDLE, JET (6BEJ6-66-3)

13383-43D00-000   1338343D00000

1338343D00000
Not available
9
JET, MAIN (320)

09491-64002-000   0949164002000

0949164002000

Unit Price

9
JET, MAIN (360)

09491-72011-000   0949172011000

0949172011000

Unit Price

10
DISCONTINUE
CAP, DRAIN

13247-27C00-000   1324727C00000

1324727C00000
Not available
11
DISCONTINUE
O RING

13389-27C00-000   1338927C00000

1338927C00000
Not available
12
DISCONTINUE
FLOAT, RH

13252-01B20-000   1325201B20000

1325201B20000
Not available
13
DISCONTINUE
FLOAT, LH

13252-01B21-000   1325201B21000

1325201B21000
Not available
14
SCREW

02112-03086-000  

02112-0308A-000
 0211203086000

Unit Price

15
WASHER, LOCK

08321-21036-000  

08321-2103B-000
 0832121036000

Unit Price

16
DISCONTINUE
ADJUSTER

13279-26C00-000   1327926C00000

1327926C00000
Not available
17
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

18
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

19
O RING, TOP CAP
O RING, TOP CAP

13251-26C00-000   1325126C00000

1325126C00000

Unit Price

20
DISCONTINUE
SPRING, THROTTLE VALVE

13573-26C00-000   1357326C00000

1357326C00000
Not available
21
CAP, TOP

13261-01B30-000   1326101B30000

1326101B30000
Not available
22
DISCONTINUE
VALVE, THROTTLE (CA:4.0)

13551-27C00-000   1355127C00000

1355127C00000
Not available
23
DISCONTINUE
PLUNGER

13411-26C00-000   1341126C00000

1341126C00000
Not available
24
DISCONTINUE<br />RING
DISCONTINUE
RING

13424-26C00-000   1342426C00000

1342426C00000
Not available
25
SCREW, AIR
SCREW, PILOT (1 1/2)

13267-09400-000   1326709400000

1326709400000

Unit Price

26
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

27
HOSE,3X5X600
HOSE, 3X5X600

09351-30503-600  

09351-30001-600
 0935130503600

Unit Price

28
HOSE,3.5*6.5*600<br />HOSE, AIR VENT (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE, AIR VENT (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

29
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

30
CLAMP
CLAMP

09403-06307-000  

09403-06329-000
 0940306307000

Unit Price

31
JET, MAIN (300)

09491-60007-000   0949160007000

0949160007000

Unit Price

31
JET, MAIN (320)

09491-64002-000   0949164002000

0949164002000

Unit Price

31
JET, MAIN (330)

09491-66002-000   0949166002000

0949166002000

Unit Price

31
JET, MAIN (340)

09491-68002-000   0949168002000

0949168002000

Unit Price

31
JET, MAIN (350)

09491-70011-000   0949170011000

0949170011000

Unit Price

31
JET, MAIN (360)

09491-72011-000   0949172011000

0949172011000

Unit Price

31
JET, MAIN
JET, MAIN (370)

09491-74003-000   0949174003000

0949174003000

Unit Price

31
JET, MAIN (380)

09491-76003-000   0949176003000

0949176003000

Unit Price

31
JET, MAIN (400)

09491-80010-000   0949180010000

0949180010000

Unit Price

31
JET, MAIN, 440
JET, MAIN (410)

09491-88001-000   0949188001000

0949188001000

Unit Price

31
DISCONTINUE
JET, MAIN (290)

09491-58002-000   0949158002000

0949158002000
Not available
31
JET, MAIN (310)

09491-62005-000   0949162005000

0949162005000
Not available
31
JET, MAIN (390)

09491-78005-000   0949178005000

0949178005000
Not available
32
JET, PILOT (50)

09492-50018-000   0949250018000

0949250018000

Unit Price

32
DISCONTINUE
JET, PILOT (45)

09492-45026-000   0949245026000

0949245026000
Not available
32
DISCONTINUE
JET, PILOT (55)

09492-55013-000   0949255013000

0949255013000
Not available
32
JET, PILOT (60)

09492-60013-000   0949260013000

0949260013000
Not available
32
JET, PILOT (65)

09492-65007-000   0949265007000

0949265007000
Not available
32
DISCONTINUE
JET, PILOT (70)

09492-70008-000   0949270008000

0949270008000
Not available
33
NEEDLE, JET (6AEJ02-64)

13383-27C10-000   1338327C10000

1338327C10000
Not available
33
DISCONTINUE
NEEDLE, JET (6AEJ02-63)

13383-27C30-000   1338327C30000

1338327C30000
Not available
33
NEEDLE, JET (6AEJ02-62)

13383-27C40-000   1338327C40000

1338327C40000
Not available
33
NEEDLE, JET (6BEJ6-65)

13383-43D10-000   1338343D10000

1338343D10000
Not available
33
NEEDLE, JET (6BEJ6-67)

13383-43D20-000   1338343D20000

1338343D20000
Not available
99x
DISCONTINUE

13200-43D00-000  

1320043D00000
Not available
99x
CARBURETOR ASSY

13200-43D20-000   1320043D20000

1320043D20000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
