SHOCK ABSORBER (MODEL V) REFER TO FIG.34B(H- 9) FOR MODEL W

SHOCK ABSORBER (MODEL W) FOR SUZUKI RM 125 1996

SHOCK ABSORBER (MODEL X) REFER TO FIG.34D(H-11) FOR MODEL Y

Item numbers

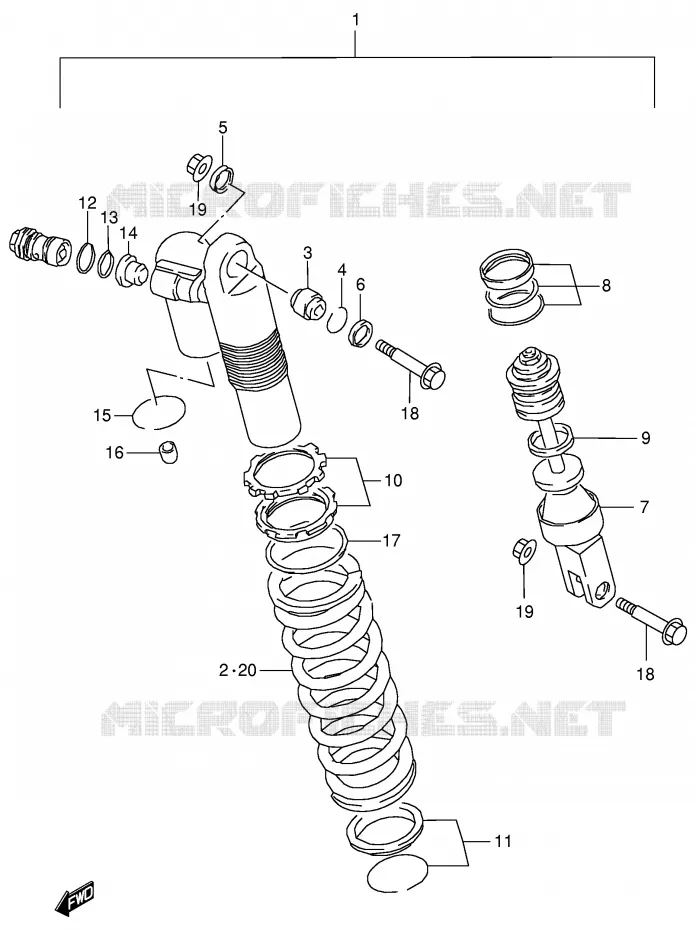

SHOCK ABSORBER (MODEL W) Suzuki MOTO 125 RM 1996 RM125T(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
1
ABSORBER ASSY, REAR SHOCK (BLUE)

62100-36E70-Y5H   6210036E70Y5H

6210036E70Y5H
Not available
2
SPRING (K=4.7)

62211-36E20-000   6221136E20000

6221136E20000
Not available
3
BEARING, RR SHOCK ABSORBER
BEARING (10X26X22)

62175-36E00-000   6217536E00000

6217536E00000

Unit Price

4
RING, STOPPER
RING

62277-27C40-000   6227727C40000

6227727C40000

Unit Price

5
SEAL, DUST UPR, R
SEAL, DUST RH

62226-36E00-000   6222636E00000

6222636E00000

Unit Price

6
SEAL, DUST UPR, L
SEAL, DUST LH

62226-36E10-000   6222636E10000

6222636E10000

Unit Price

7
ROD, PISTON

62120-36E60-000   6212036E60000

6212036E60000
Not available
8
O RING SET

62150-36E50-000   6215036E50000

6215036E50000

Unit Price

9
DISCONTINUE
RING, STOPPER

62279-36E50-000   6227936E50000

6227936E50000
Not available
10
ADJUSTER SET
ADJUSTER NUT SET

62190-36E50-000   6219036E50000

6219036E50000

Unit Price

11
DISCONTINUE
SPRING SEAT SET

62220-36E50-000   6222036E50000

6222036E50000
Not available
12
O RING

62131-28E00-000   6213128E00000

6213128E00000

Unit Price

13
O RING, CTR BOLT UPR
O RING, INNER

51174-43D00-000   5117443D00000

5117443D00000

Unit Price

14
DISCONTINUE
COLLAR

62227-36E00-000   6222736E00000

6222736E00000
Not available
15
RING, STOPPER

62278-36E00-000   6227836E00000

6227836E00000

Unit Price

16
CAP

51294-20400-000   5129420400000

5129420400000

Unit Price

17
SEAT, SPRING

62195-36E50-000   6219536E50000

6219536E50000
Not available
18
BOLT (10X47.5)

09103-10149-000   0910310149000

0910310149000

Unit Price

19
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

20
SPRING (SOFT, K=4.5)

62211-36E10-000   6221136E10000

6221136E10000
Not available
20
SPRING (HARD, K=4.9)

62211-36E30-000   6221136E30000

6221136E30000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
