CYLINDER

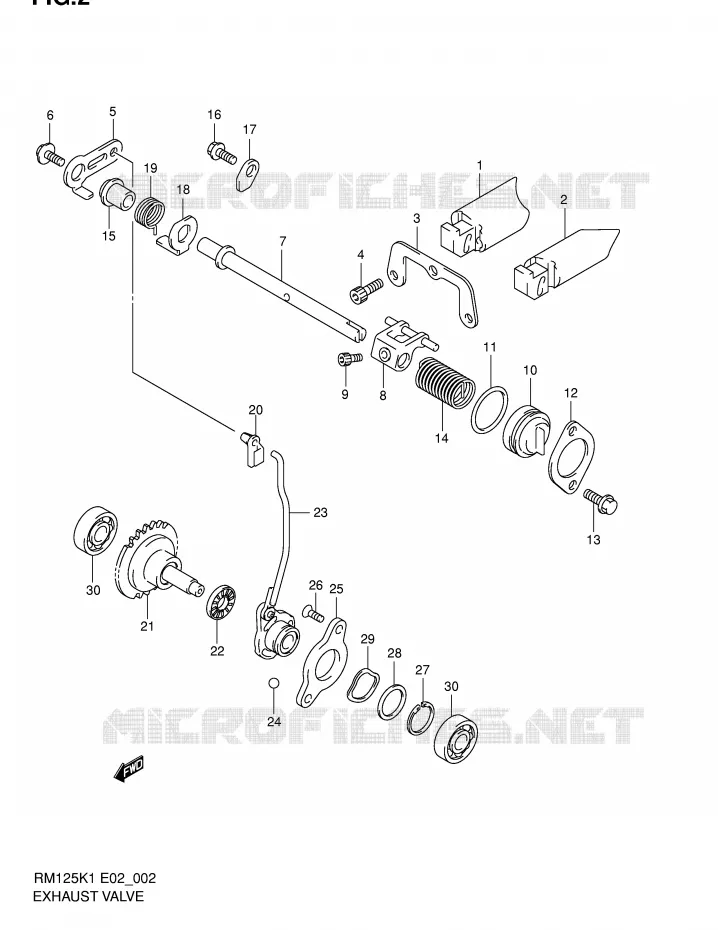

EXHAUST VALVE FOR SUZUKI RM 125 2002

CRANKCASE

Item numbers

DISCONTINUE
VALVE, EXHAUST RH

11254-36E31-000 1125436E31000

Not available

DISCONTINUE
VALVE, EXHAUST RH

11254-36F00-000 1125436F00000

Not available

DISCONTINUE
VALVE, EXHAUST LH

11255-36E31-000 1125536E31000

Not available

DISCONTINUE
VALVE, EXHAUST LH

11255-36F00-000 1125536F00000

Not available

DISCONTINUE
PLATE, EXHAUST VALVE

11261-36F00-000 1126136F00000

Not available

BOLT

07130-05123-000

07130-0512B-000

$4,97

Unit Price

LEVER, EXHAUST VALVE NO.1

11266-00B21-000 1126600B21000

$10,97

Unit Price

BOLT (5X12)

09118-05003-000 0911805003000

$6,97

Unit Price

DISCONTINUE
SHAFT, EXHAUST VALVE

11259-36E30-000 1125936E30000

Not available

DISCONTINUE
ARM, EXHAUST VALVE SHAFT

11270-36E30-000 1127036E30000

Not available

BOLT, EXHAUST VALVE
SCREW

09106-04003-000 0910604003000

$2,97

Unit Price

DISCONTINUE
CAP, EXHAUST VALVE

11258-27C01-000 1125827C01000

Not available

O RING

09280-23002-000

09280-23003-000

$4,97

Unit Price

DISCONTINUE
RETAINER, EXHAUST VALVE

11265-00B22-000 1126500B22000

Not available

SCREW

02162-05123-000

02162-0512A-000

$3,97

Unit Price

SPRING, EXHAUST VALVE
SPRING

11257-36E00-000 1125736E00000

$14,97

Unit Price

SPACER, EXHAUST VALVE
SPACER

11268-01B01-000 1126801B01000

$19,97

Unit Price

BOLT

01547-06103-000

01547-0610B-000

$4,97

Unit Price

BOLT, EXHAUST VALVE S
BOLT

09103-06256-000 0910306256000

$3,97

Unit Price

RETAINER

24741-21A00-000 2474121A00000

$4,97

Unit Price

LEVER, EXHAUST VALVE NO.2

11267-00B21-000 1126700B21000

$15,97

Unit Price

SPRING

09444-16010-000 0944416010000

Not available

BUSH, EXHAUST VALVE ROD NO.1
BUSH, EXHAUST VALVE ROD

12686-01B00-000 1268601B00000

Not available

DISCONTINUE
GOVERNOR ASSY, EXHAUST VALVE

12670-36F00-000 1267036F00000

Not available

RD SFT ARM PIN BRG
BEARING

09263-10002-000 0926310002000

$14,97

Unit Price

DISCONTINUE
ACTUATOR, EXHAUST VALVE

12680-36810-000 1268036810000

Not available

BALL

06111-06003-000 0611106003000

$2,97

Unit Price

STARTER, EXHAUST VALVE ACTUATOR
STATOR, ACTUATOR

12682-01B02-000 1268201B02000

$55,97

Unit Price

SCREW (5X10)

09120-05003-000 0912005003000

$2,97

Unit Price

CIRCLIP

09380-19003-000 0938019003000

$3,97

Unit Price

SHIM
SHIM (19.1X25X0.3)

09181-19004-000 0918119004000

$6,97

Unit Price

WASHER
LOCK WASHER

09164-19001-000 0916419001000

$10,97

Unit Price

BEARING
BEARING (8X22X7)

09262-08005-000 0926208005000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
