CARBURETOR (MODEL K2) REFER TO FIG.6B(C- 8) FOR MODEL K3

CARBURETOR (MODEL K3) FOR SUZUKI RM 125 2003

CARBURETOR (MODEL K4) REFER TO FIG.6D(C-14) FOR MODEL K5

Item numbers

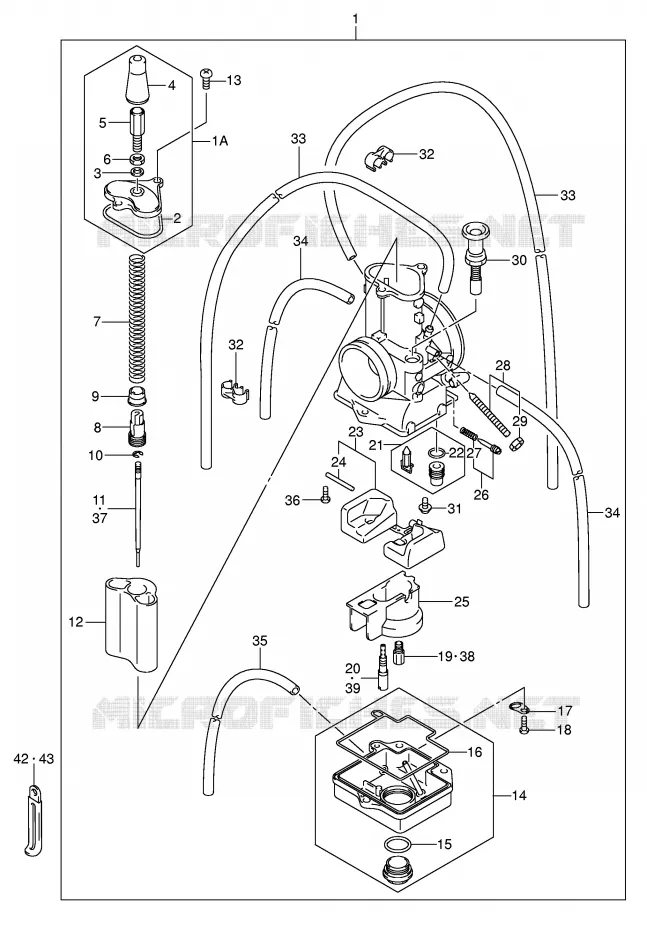

CARBURETOR (MODEL K3) Suzuki MOTO 125 RM 2003 RM125K3
1
1
1A
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
33
34
34
35
36
37
37
37
37
37
37
37
37
37
37
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
39
39
39
39
39
39
39
39
39
39
42
43
1
DISCONTINUE
CARBURETOR ASSY

13200-36F20-000  

1320036F20000
Not available
1A
DISCONTINUE
TOP CAP ASSY

13260-36F00-000   1326036F00000

1326036F00000
Not available
2
PACKING

13258-36F00-000   1325836F00000

1325836F00000

Unit Price

3
WASHER, DRAIN PLUG
..WASHER

13531-09300-000   1353109300000

1353109300000

Unit Price

4
CAP

13681-16600-000  

13681-16601-000
 1368116600000

Unit Price

5
ADJUSTER, CABLE
ADJUSTER, CABLE

13577-41612-000   1357741612000

1357741612000

Unit Price

6
NUT<br />NUT, CABLE ADJUSTER LOCK
NUT
NUT, CABLE ADJUSTER LOCK

13661-16600-000   1366116600000

1366116600000

Unit Price

7
SPRING

13573-36F00-000   1357336F00000

1357336F00000

Unit Price

8
GUIDE HOLDER
GUIDE

13518-36F00-000   1351836F00000

1351836F00000

Unit Price

9
RING

13424-36F00-000   1342436F00000

1342436F00000

Unit Price

10
E RING, MULTIPLE JET NOZZLE
E RING, MULTIPLE JET NOZZLE

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

11
DISCONTINUE
NEEDLE, JET (6BGY27-77)

13383-36FC0-000   1338336FC0000

1338336FC0000
Not available
11
DISCONTINUE
NEEDLE, JET (6BGY28-77)

13383-36FD0-000   1338336FD0000

1338336FD0000
Not available
12
VALVE, PISTON
PISTON, VALVE

13551-36F10-000   1355136F10000

1355136F10000

Unit Price

13
SCREW

13602-48B10-000   1360248B10000

1360248B10000

Unit Price

14
DISCONTINUE
FLOAT BODY ASSY

13250-36F10-000   1325036F10000

1325036F10000
Not available
15
O RING

13246-29630-000   1324629630000

1324629630000

Unit Price

16
O RING

13251-36F00-000   1325136F00000

1325136F00000

Unit Price

17
PLATE,CARBURETOR<br />PLATE
PLATE, CARBURETOR
PLATE

13693-36500-000   1369336500000

1369336500000

Unit Price

18
SCREW(5X14)

13601-05148-000  

13601-05148-XC0
 1360105148000

Unit Price

19
JET, MAIN(460)
JET, MAIN (#460)

09491-92002-000   0949192002000

0949192002000

Unit Price

19
DISCONTINUE
JET, MAIN (#560)

09491-56005-000   0949156005000

0949156005000
Not available
20
JET, PILOT(40)
JET, PILOT (#40)

09492-40028-000   0949240028000

0949240028000

Unit Price

21
VALVE ASSY, NEEDLE

13370-36F00-000  

13370-36F01-000
 1337036F00000

Unit Price

22
O RING,NEEDLE VALVE SEAT<br />O RING
O RING, NEEDLE VALVE SEAT
O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

23
FLOAT SET

13240-36F00-000   1324036F00000

1324036F00000

Unit Price

24
PIN, FLOAT

13254-20010-000   1325420010000

1325420010000

Unit Price

25
HOLDER

13418-36F00-000   1341836F00000

1341836F00000

Unit Price

26
ADJUSTER SET (AS)

13280-36F20-000   1328036F20000

1328036F20000

Unit Price

27
SPRING
SPRING

13268-35010-000   1326835010000

1326835010000

Unit Price

28
ADJUSTER SET (PV)

13270-36F00-000   1327036F00000

1327036F00000

Unit Price

29
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

30
PLUNGER ASSY

13411-36F00-000   1341136F00000

1341136F00000

Unit Price

31
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

32
CLIP

13619-42E00-000   1361942E00000

1361942E00000

Unit Price

33
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

34
HOSE,3.5*6.5*600<br />HOSE (3.5X6.5X600)
HOSE, 3.5*6.5*600
HOSE (3.5X6.5X600)

09351-35653-600   0935135653600

0935135653600

Unit Price

35
HOSE,3X5X600
HOSE, 3X5X600

09351-30503-600  

09351-30001-600
 0935130503600

Unit Price

36
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

37
DISCONTINUE
NEEDLE, JET (6BGY27-79)

13383-36FA0-000   1338336FA0000

1338336FA0000
Not available
37
NEEDLE, JET (6BGY28-79)

13383-36FB0-000   1338336FB0000

1338336FB0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY27-77)

13383-36FC0-000   1338336FC0000

1338336FC0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY28-77)

13383-36FD0-000   1338336FD0000

1338336FD0000
Not available
37
NEEDLE, JET (6BGY27-75)

13383-36FE0-000   1338336FE0000

1338336FE0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY28-75)

13383-36FF0-000   1338336FF0000

1338336FF0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY27-73)

13383-36FG0-000   1338336FG0000

1338336FG0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY28-73)

13383-36FH0-000   1338336FH0000

1338336FH0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY27-71)

13383-36FJ0-000   1338336FJ0000

1338336FJ0000
Not available
37
DISCONTINUE
NEEDLE, JET (6BGY28-71)

13383-36FK0-000   1338336FK0000

1338336FK0000
Not available
38
JET, MAIN(540)
JET, MAIN (#540)

09491-54003-000   0949154003000

0949154003000

Unit Price

38
JET, MAIN(400)
JET, MAIN (#400)

09491-80010-000   0949180010000

0949180010000

Unit Price

38
JET, MAIN(410)
JET, MAIN (#410)

09491-82007-000   0949182007000

0949182007000

Unit Price

38
JET, MAIN(420)
JET, MAIN (#420)

09491-84008-000   0949184008000

0949184008000

Unit Price

38
JET, MAIN
JET, MAIN (#430)

09491-86002-000   0949186002000

0949186002000

Unit Price

38
JET, MAIN, 440
JET, MAIN (#440)

09491-88001-000   0949188001000

0949188001000

Unit Price

38
JET, MAIN, 450
JET, MAIN (#450)

09491-90005-000   0949190005000

0949190005000

Unit Price

38
JET, MAIN(460)
JET, MAIN (#460)

09491-92002-000   0949192002000

0949192002000

Unit Price

38
JET, MAIN(470)
JET, MAIN (#470)

09491-94004-000   0949194004000

0949194004000

Unit Price

38
JET, MAIN (#500)

09491-10001-000   0949110001000

0949110001000
Not available
38
JET, MAIN (#520)

09491-52008-000   0949152008000

0949152008000
Not available
38
DISCONTINUE
JET, MAIN (#560)

09491-56005-000   0949156005000

0949156005000
Not available
38
JET, MAIN (#580)

09491-58007-000   0949158007000

0949158007000
Not available
38
JET, MAIN (#600)

09491-60013-000   0949160013000

0949160013000
Not available
38
JET, MAIN (#480)

09491-96001-000   0949196001000

0949196001000
Not available
38
JET, MAIN (#490)

09491-98001-000   0949198001000

0949198001000
Not available
39
JET, PILOT (25)

09492-25011-000   0949225011000

0949225011000

Unit Price

39
JET, PILOT (27.5)

09492-27011-000   0949227011000

0949227011000

Unit Price

39
JET, PILOT(30)
JET, PILOT (30.0)

09492-30014-000   0949230014000

0949230014000

Unit Price

39
JET, PILOT (32.5)

09492-32010-000   0949232010000

0949232010000

Unit Price

39
JET, PILOT(35)
JET, PILOT (35.0)

09492-35021-000   0949235021000

0949235021000

Unit Price

39
JET, PILOT (37.5)

09492-37003-000   0949237003000

0949237003000

Unit Price

39
JET, PILOT(40)
JET, PILOT (40.0)

09492-40028-000   0949240028000

0949240028000

Unit Price

39
JET, PILOT (42.5)

09492-42023-000   0949242023000

0949242023000

Unit Price

39
JET, PILOT (47.5)

09492-47022-000   0949247022000

0949247022000

Unit Price

39
JET, PILOT (45.0)

09492-45034-000   0949245034000

0949245034000
Not available
40
WASHER, JET NEEDLE CLIP

13394-36F20-000   1339436F20000

1339436F20000

Unit Price

41
HOLDER, GUIDE

13518-36F20-000   1351836F20000

1351836F20000

Unit Price

42
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

43
CLAMP,L:82<br />CLAMP
CLAMP, L:82
CLAMP

09404-08206-000   0940408206000

0940408206000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 125 RM 2003

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
STAND FOOTREST (MODEL K1/K2) for Suzuki RM 125 2003

STAND - FOOTREST (MODEL K1 / K2)
for Suzuki RM 125 2003

STAND FOOTREST (MODEL K3/K4/K5) for Suzuki RM 125 2003

STAND - FOOTREST (MODEL K3 / K4 / K5)
for Suzuki RM 125 2003

REAR BRAKE (MODEL K1/K2) for Suzuki RM 125 2003

REAR BRAKE (MODEL K1 / K2)
for Suzuki RM 125 2003

REAR BRAKE (MODEL K3/K4/K5/K6) for Suzuki RM 125 2003

REAR BRAKE (MODEL K3 / K4 / K5 / K6)
for Suzuki RM 125 2003

HANDLEBAR (MODEL K1/K2/K3/K4) for Suzuki RM 125 2003

HANDLEBAR (MODEL K1 / K2 / K3 / K4)
for Suzuki RM 125 2003

HANDLEBAR (MODEL K5/K6) for Suzuki RM 125 2003

HANDLEBAR (MODEL K5 / K6)
for Suzuki RM 125 2003

LEVERS HANDGRIPS (MODEL K1/K2/K3) for Suzuki RM 125 2003

LEVERS - HANDGRIPS (MODEL K1 / K2 / K3)
for Suzuki RM 125 2003

LEVERS HANDGRIPS (MODEL K4/K5/K6) for Suzuki RM 125 2003

LEVERS - HANDGRIPS (MODEL K4 / K5 / K6)
for Suzuki RM 125 2003

FRONT FORK (MODEL K1) for Suzuki RM 125 2003

FRONT FORK (MODEL K1)
for Suzuki RM 125 2003

FRONT FORK (MODEL K2) for Suzuki RM 125 2003

FRONT FORK (MODEL K2)
for Suzuki RM 125 2003

FRONT FORK (MODEL K3) for Suzuki RM 125 2003

FRONT FORK (MODEL K3)
for Suzuki RM 125 2003

FRONT FORK (MODEL K4) for Suzuki RM 125 2003

FRONT FORK (MODEL K4)
for Suzuki RM 125 2003

FRONT FORK (MODEL K5) for Suzuki RM 125 2003

FRONT FORK (MODEL K5)
for Suzuki RM 125 2003

FRONT FORK (MODEL K6) for Suzuki RM 125 2003

FRONT FORK (MODEL K6)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K1) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K1)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K2) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K2)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K3) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K3)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K4) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K4)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K5) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K5)
for Suzuki RM 125 2003

STEERING COLUMN (MODEL K6) for Suzuki RM 125 2003

STEERING COLUMN (MODEL K6)
for Suzuki RM 125 2003

FRONT WHEEL (MODEL K1/K2/K3/K4) for Suzuki RM 125 2003

FRONT WHEEL (MODEL K1 / K2 / K3 / K4)
for Suzuki RM 125 2003

FRONT WHEEL (MODEL K5/K6) for Suzuki RM 125 2003

FRONT WHEEL (MODEL K5 / K6)
for Suzuki RM 125 2003

FRONT CALIPER (MODEL K1/K2/K3/K4) for Suzuki RM 125 2003

FRONT CALIPER (MODEL K1 / K2 / K3 / K4)
for Suzuki RM 125 2003

FRONT CALIPER (MODEL K5/K6) for Suzuki RM 125 2003

FRONT CALIPER (MODEL K5 / K6)
for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K1/K2/K3) for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K1 / K2 / K3)
for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K4) for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K4)
for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K5/K6) for Suzuki RM 125 2003

FRONT MASTER CYLINDER (MODEL K5 / K6)
for Suzuki RM 125 2003

SWINGARM (MODEL K1/K2/K3) for Suzuki RM 125 2003

SWINGARM (MODEL K1 / K2 / K3)
for Suzuki RM 125 2003

SWINGARM (MODEL K4) for Suzuki RM 125 2003

SWINGARM (MODEL K4)
for Suzuki RM 125 2003

SWINGARM (MODEL K5/K6) for Suzuki RM 125 2003

SWINGARM (MODEL K5 / K6)
for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K1/K2) for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K1 / K2)
for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K3) for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K3)
for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K4) for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K4)
for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K5) for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K5)
for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K6) for Suzuki RM 125 2003

REAR SHOCK ABSORBER (MODEL K6)
for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K1) for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K1)
for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K2/K3) for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K2 / K3)
for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K4/K5/K6) for Suzuki RM 125 2003

SHOCK ABSORBER LINKAGE (MODEL K4 / K5 / K6)
for Suzuki RM 125 2003

REAR WHEEL (MODEL K1/K2) for Suzuki RM 125 2003

REAR WHEEL (MODEL K1 / K2)
for Suzuki RM 125 2003

REAR WHEEL (MODEL K3) for Suzuki RM 125 2003

REAR WHEEL (MODEL K3)
for Suzuki RM 125 2003

REAR WHEEL (MODEL K4) for Suzuki RM 125 2003

REAR WHEEL (MODEL K4)
for Suzuki RM 125 2003

REAR WHEEL (MODEL K5) for Suzuki RM 125 2003

REAR WHEEL (MODEL K5)
for Suzuki RM 125 2003

REAR WHEEL (MODEL K6) for Suzuki RM 125 2003

REAR WHEEL (MODEL K6)
for Suzuki RM 125 2003

REAR CALIPER (MODEL K1/K2/K3) for Suzuki RM 125 2003

REAR CALIPER (MODEL K1 / K2 / K3)
for Suzuki RM 125 2003

REAR CALIPER (MODEL K4) for Suzuki RM 125 2003

REAR CALIPER (MODEL K4)
for Suzuki RM 125 2003

REAR CALIPER (MODEL K5/K6) for Suzuki RM 125 2003

REAR CALIPER (MODEL K5 / K6)
for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K1/K2) for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K1 / K2)
for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K3) for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K3)
for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K4) for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K4)
for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K5/K6) for Suzuki RM 125 2003

REAR BRAKE MASTER CYLINDER (MODEL K5 / K6)
for Suzuki RM 125 2003

Suzuki 125 RM 2003

Choose your Suzuki 125 2003 RM model

125 RM 2003 RM125K3

RM 125

Suzuki RM

Displacement: 125 cc
Year: 2003
Model code RM125K3
Drapeau EUROPE
Europe
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
