Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GASKET SET (MODEL K3 / K4 / K5 / K6)

CYLINDER FOR SUZUKI RM 125 2004

EXHAUST VALVE (MODEL K1 / K2) REFER TO FIG.2A(B- 8) FOR MODEL K3

Item numbers

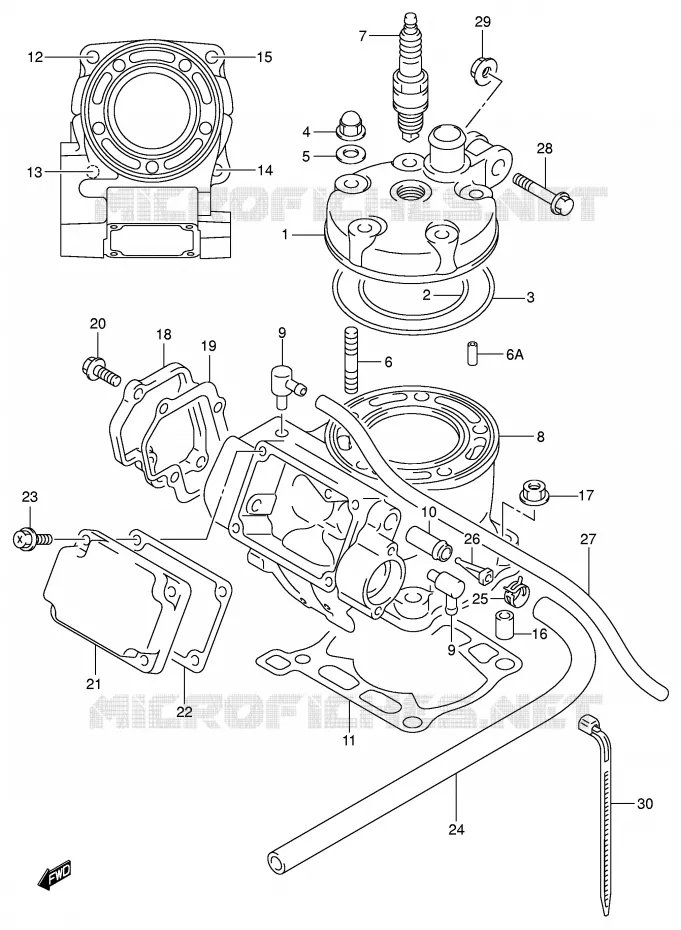

CYLINDER Suzuki MOTO 125 RM 2004 RM125K4(E3/E28)
1
1
1
1
2
3
4
5
6A
6
7
8
8
8
8
9
9
9
9
10
11
11
12
13
14
15
16
17
17
18
19
20
20
21
22
23
23
24
24
25
26
27
28
29
29
30
1
HEAD, CYLINDER

11111-36F20-000   1111136F20000

1111136F20000

Unit Price

1
HEAD, CYLINDER

11111-36F30-000   1111136F30000

1111136F30000

Unit Price

1
DISCONTINUE

11111-36F00-000  

1111136F00000
Not available
2
O RING, CYLINDER HEAD NO.1

11147-27C11-000   1114727C11000

1114727C11000

Unit Price

3
O RING, CYLINDER HEAD NO.2

11148-27C11-000   1114827C11000

1114827C11000

Unit Price

4
NUT

09159-08049-000  

09159-08074-000
 0915908049000

Unit Price

5
GASKET 8.5X17X2.3<br />WASHER
GASKET 8.5X17X2.3
WASHER

09168-08021-000   0916808021000

0916808021000

Unit Price

6
STUD BOLT

09108-08227-000  

09108-08231-000
 0910808227000

Unit Price

6A
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

7
R6918B-8, NGK
SPARK PLUG (NGK, R6918B-8)

09482-00509-000   0948200509000

0948200509000

Unit Price

8
CYLINDER SET

11200-36870-000   1120036870000

1120036870000

Unit Price

8
DISCONTINUE
CYLINDER SET

11200-36840-000   1120036840000

1120036840000
Not available
8
DISCONTINUE
CYLINDER SET

11200-36850-000   1120036850000

1120036850000
Not available
8
DISCONTINUE
CYLINDER SET

11200-36860-000   1120036860000

1120036860000
Not available
9
UNION,BREATHER HOSE<br />UNION, CYLINDER
UNION, BREATHER HOSE
UNION, CYLINDER

16910-09401-000   1691009401000

1691009401000

Unit Price

10
UNION, ROOF DRAIN HOS
UNION, EXHAUST VALVE BREATHER HOSE

09364-10003-000   0936410003000

0936410003000
Not available
11
GASKET, CYLINDER

11241-27C10-000   1124127C10000

1124127C10000

Unit Price

11
GASKET, CYLINDER

11241-36F00-000   1124136F00000

1124136F00000

Unit Price

12
BOLT STUD L:33
STUD BOLT (8X33)

09108-08220-000   0910808220000

0910808220000

Unit Price

13
STUD BOLT L:30<br />STUD BOLT (8X30)
STUD BOLT L:30
STUD BOLT (8X30)

09108-08142-000   0910808142000

0910808142000

Unit Price

14
BOLT, STUD

01421-08358-000  

01421-0835A-000
 0142108358000

Unit Price

15
STUD BOLT L:40<br />STUD BOLT (8X40)
STUD BOLT L:40
STUD BOLT (8X40)

09108-08144-000   0910808144000

0910808144000

Unit Price

16
PIN, L:14
PIN

09206-11004-000   0920611004000

0920611004000

Unit Price

17
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

17
NUT, CYLINDER
NUT

09159-08124-000   0915908124000

0915908124000

Unit Price

18
COVER, CYLINDER NO.1

11231-27C30-000   1123127C30000

1123127C30000

Unit Price

19
GASKET, CYL COVER NO.1

11233-27C33-000  

11233-27C34-000
 1123327C33000

Unit Price

20
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

20
BOLT, 6X16
BOLT

09103-06234-000   0910306234000

0910306234000

Unit Price

21
COVER, CYLINDER NO.2

11248-36E00-000   1124836E00000

1124836E00000

Unit Price

22
GASKET, CYL COVER NO.2
GASKET, CYLINDER COVER NO.2

11238-36E01-000   1123836E01000

1123836E01000

Unit Price

23
SCREW

02162-05163-000  

02162-0516A-000
 0216205163000

Unit Price

23
BOLT

09103-05023-000  

09103-05016-000
 0910305023000

Unit Price

24
HOSE
HOSE (9X14X220)

09343-09501-000   0934309501000

0934309501000

Unit Price

24
HOSE

09359-50823-600  

09359-50824-600
 0935950823600

Unit Price

25
CLIP

09401-12405-000   0940112405000

0940112405000

Unit Price

26
DISCONTINUE
FILTER

11271-28E20-000   1127128E20000

1127128E20000
Not available
27
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

28
BOLT 10X47.5
BOLT, ENG MTG

09103-10149-000   0910310149000

0910310149000

Unit Price

29
NUT 10MM
NUT

09159-10060-000   0915910060000

0915910060000

Unit Price

29
NUT

09159-10078-000   0915910078000

0915910078000

Unit Price

30
CLAMP,WIRING HARNESS<br />CLAMP
CLAMP, WIRING HARNESS
CLAMP

09407-18402-000   0940718402000

0940718402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
