CRANKCASE COVER-WATER PUMP

CRANKSHAFT FOR SUZUKI RM 125 2005

CARBURETOR (MODEL K1) REFER TO FIG.6A(C- 5) FOR MODEL K2

Item numbers

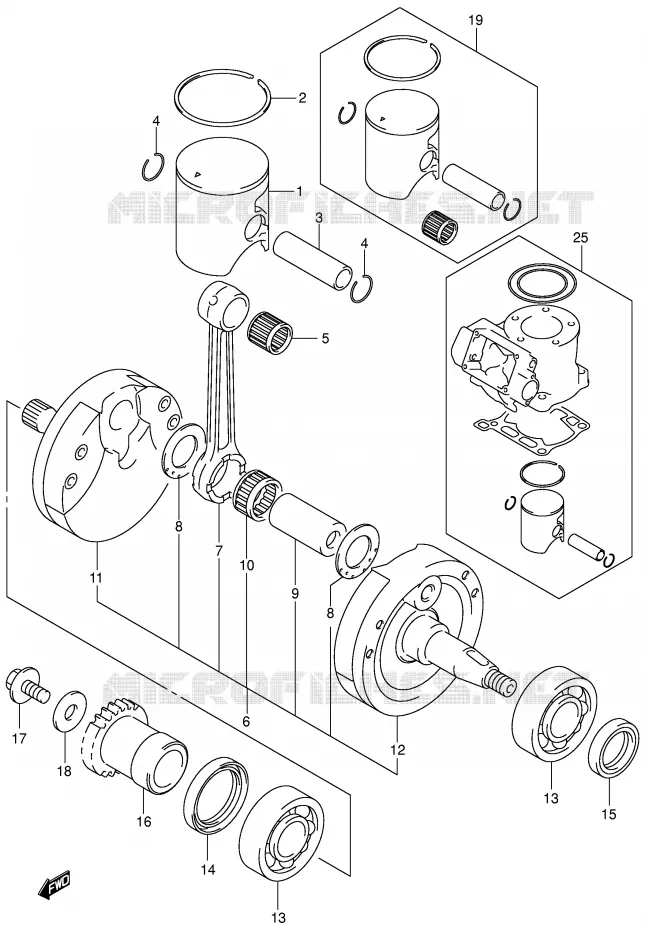

CRANKSHAFT Suzuki MOTO 125 RM 2005 RM125K5
1
1
1
1
2
2
3
4
4
5
6
6
6
6
6
7
7
7
7
8
8
8
8
9
10
11
11
11
11
12
12
12
12
13
13
14
15
16
17
17
18
19
19
19
19
25
25
25
25
1
PISTON

12110-36F00-0F0   1211036F000F0

1211036F000F0

Unit Price

1
DISCONTINUE

12110-36E30-0F0  

1211036E300F0
Not available
2
RING, PISTON

12141-36F00-000   1214136F00000

1214136F00000

Unit Price

2
DISCONTINUE
RING, PISTON

12141-36E01-000   1214136E01000

1214136E01000
Not available
3
PIN, PISTON

12151-01B41-000   1215101B41000

1215101B41000

Unit Price

4
CIRCLIP

09381-15001-000   0938115001000

0938115001000

Unit Price

5
BEARING, 15X19X20
BEARING, PISTON PIN

09263-15040-000   0926315040000

0926315040000

Unit Price

6
CRANKSHAFT ASSY

12200-36F40-000   1220036F40000

1220036F40000

Unit Price

6
DISCONTINUE

12200-36F00-000  

1220036F00000
Not available
6
DISCONTINUE

12200-36F20-000  

1220036F20000
Not available
6
DISCONTINUE
CRANKSHAFT ASSY

12200-36F30-000   1220036F30000

1220036F30000
Not available
7
CONNECTING ROD

12161-36F20-000  

12161-36F21-000
 1216136F20000

Unit Price

7
DISCONTINUE

12161-36E11-000  

1216136E11000
Not available
8
WASHER

09160-22077-000   0916022077000

0916022077000

Unit Price

8
WASHER, CRANK PIN BEA
WASHER

09160-22079-000   0916022079000

0916022079000

Unit Price

9
PIN, CRANK

12211-27C00-000   1221127C00000

1221127C00000

Unit Price

10
BEARING<br />BEARING (22X28X16)
BEARING
BEARING (22X28X16)

09263-22060-000   0926322060000

0926322060000

Unit Price

11
DISCONTINUE
CRANKSHAFT, RH

12220-36F00-000   1222036F00000

1222036F00000
Not available
11
DISCONTINUE
CRANKSHAFT, RH

12220-36F20-000   1222036F20000

1222036F20000
Not available
11
CRANKSHAFT, RH

12220-36F30-000   1222036F30000

1222036F30000
Not available
11
CRANKSHAFT, RH

12220-36F40-000   1222036F40000

1222036F40000
Not available
12
DISCONTINUE
CRANKSHAFT, LH

12260-36F00-000   1226036F00000

1226036F00000
Not available
12
DISCONTINUE
CRANKSHAFT, LH

12260-36F20-000   1226036F20000

1226036F20000
Not available
12
CRANKSHAFT, LH

12260-36F30-000   1226036F30000

1226036F30000
Not available
12
CRANKSHAFT, LH

12260-36F40-000   1226036F40000

1226036F40000
Not available
13
BEARING<br />BEARING (22X56X16)
BEARING
BEARING (22X56X16)

09262-22025-000   0926222025000

0926222025000

Unit Price

14
OIL SEAL

09283-30061-000  

09283-30076-000
 0928330061000

Unit Price

15
SEAL, OIL CRANKSHAFT

09283-18007-000  

09283-18010-000
 0928318007000

Unit Price

16
GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:19)

21111-36E11-000   2111136E11000

2111136E11000

Unit Price

17
BOLT, PRIMARY DRIVE G
BOLT

09103-10339-000   0910310339000

0910310339000

Unit Price

18
WASHER, PRIMARY DRIVE
WASHER

09164-11004-000   0916411004000

0916411004000

Unit Price

19
PISTON KIT

12101-36821-000   1210136821000

1210136821000

Unit Price

19
DISCONTINUE

12100-36830-000  

1210036830000
Not available
19
DISCONTINUE
PISTON KIT

12101-36810-000   1210136810000

1210136810000
Not available
20
PISTON

12110-36F00-0F0   1211036F000F0

1211036F000F0

Unit Price

20
DISCONTINUE

12110-36E30-0F0  

1211036E300F0
Not available
21
RING, PISTON

12141-36F00-000   1214136F00000

1214136F00000

Unit Price

21
DISCONTINUE
RING, PISTON

12141-36E01-000   1214136E01000

1214136E01000
Not available
22
PIN, PISTON

12151-01B41-000   1215101B41000

1215101B41000

Unit Price

23
BEARING, 15X19X20
BEARING

09263-15040-000   0926315040000

0926315040000

Unit Price

24
CIRCLIP

09381-15001-000   0938115001000

0938115001000

Unit Price

25
DISCONTINUE

12100-36840-000  

1210036840000
Not available
25
DISCONTINUE
TOP END KIT, ENGINE

12100-36860-000   1210036860000

1210036860000
Not available
25
DISCONTINUE
TOP END KIT, ENGINE

12100-36871-000   1210036871000

1210036871000
Not available
26
O RING, CYLINDER HEAD NO.1

11147-27C11-000   1114727C11000

1114727C11000

Unit Price

27
O RING, CYLINDER HEAD NO.2

11148-27C11-000   1114827C11000

1114827C11000

Unit Price

28
GASKET, CYLINDER

11241-27C10-000   1124127C10000

1124127C10000

Unit Price

28
GASKET, CYLINDER

11241-36F00-000   1124136F00000

1124136F00000

Unit Price

29
PISTON

12110-36F00-0F0   1211036F000F0

1211036F000F0

Unit Price

29
DISCONTINUE

12110-36E30-0F0  

1211036E300F0
Not available
30
RING, PISTON

12141-36F00-000   1214136F00000

1214136F00000

Unit Price

30
DISCONTINUE
RING, PISTON

12141-36E01-000   1214136E01000

1214136E01000
Not available
31
CIRCLIP

09381-15001-000   0938115001000

0938115001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
