REAR BRAKE

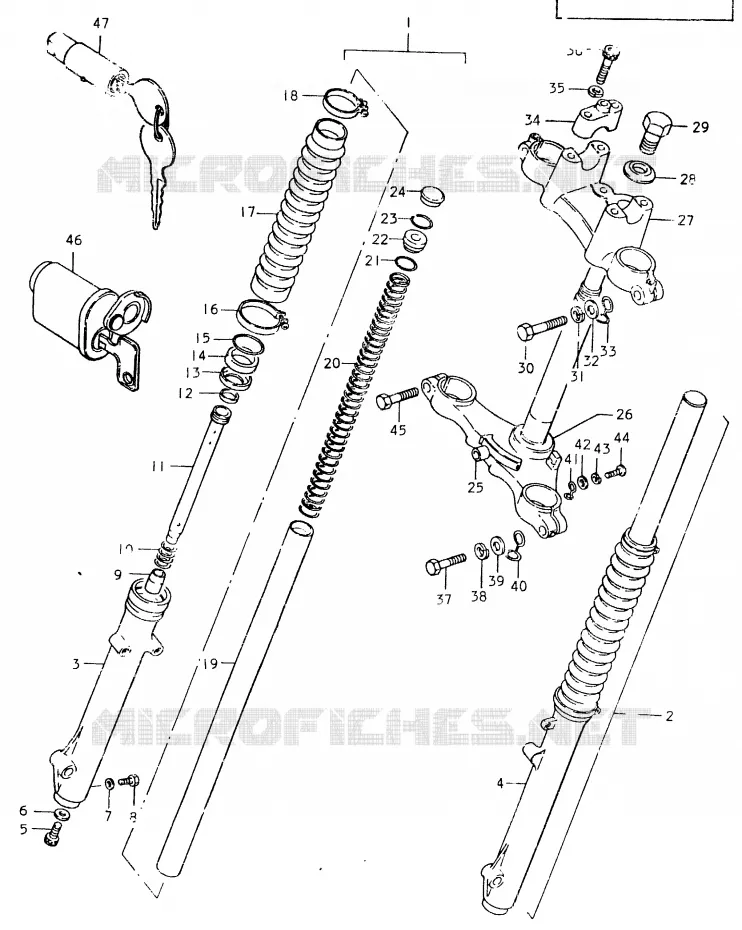

FRONT FORK FOR SUZUKI TS-ER 125 1996

FRONT WHEEL

DAMPER ASSY, RH

51103-48540-000 5110348540000

Not available

DAMPER ASSY, LH

51104-48540-000 5110448540000

Not available

OUTER TUBE, RH

51130-48500-000 5113048500000

Not available

OUTER TUBE, LH

51140-48500-000 5114048500000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

GASKET, DRAIN, PLUG
GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

BOLT(6X8)
BOLT

09100-06011-000 0910006011000

$3,97

Unit Price

PIECE, OIL LOCK

51195-48000-000 5119548000000

$19,97

Unit Price

REBUND SPRING

51177-36030-000 5117736030000

Not available

CYLINDER

51146-48540-000 5114648540000

Not available

RING, PISTON

51196-33130-000 5119633130000

$14,97

Unit Price

DISCONTINUED

51168-48500-000 5116848500000

Not available

DISCONTINUED

51153-48500-000 5115348500000

Not available

DISCONTINUED

51156-48500-000 5115648500000

Not available

TUBE CLAMP
BAND

09402-58306-000 0940258306000

$7,97

Unit Price

DISCONTINUED

51571-48500-000 5157148500000

Not available

BAND

51575-48500-000 5157548500000

Not available

DISCONTINUED

51110-48500-000 5111048500000

Not available

SPRING

51171-48540-000 5117148540000

Not available

O RING

51181-33131-000 5118133131000

$9,97

Unit Price

SEAT SPRING

51175-48500-000 5117548500000

$16,97

Unit Price

RING, STOPPER
STOPPER RING

51169-48500-000 5116948500000

$5,97

Unit Price

DISCONTINUED

51189-48500-000 5118948500000

Not available

STEM, STEERING (CHAMPAGNE GOLD)

51410-48500-08C 514104850008C

Not available

DISCONTINUED

51410-48500-291 5141048500291

Not available

STEM, STEERING (CHAMPAGNE GOLD)

51410-48510-08C 514104851008C

Not available

STEM, STEERING (BLACK)

51410-48510-291 5141048510291

Not available

STEM, STEERING (CHAMPAGNE GOLD)

51410-48520-08C 514104852008C

Not available

STEM, STEERING (BLACK)

51410-48520-291 5141048520291

Not available

RACE, STEERING OUTER LWR
OUTER RACE

51621-33001-000 5162133001000

$15,97

Unit Price

HEAD, STEERING STEM (CHAMPAGNE GOLD)

51311-48500-08C 513114850008C

Not available

DISCONTINUED

51311-48500-291 5131148500291

Not available

WASHER(10.5X30X2.3)
WASHER

51356-46030-000 5135646030000

$8,97

Unit Price

BOLT

51352-46030-000 5135246030000

$12,97

Unit Price

BOLT

51451-27431-000 5145127431000

$8,97

Unit Price

.LOCK WASHER

08321-21108-000 0832121108000

Not available

WASHER

08322-21108-000

08322-01107-000

$2,97

Unit Price

CLIP

51455-48500-000 5145548500000

Not available

HOLDER, HANDLE (CHAMPAGNE GOLD)

56211-48500-08C 562114850008C

Not available

DISCONTINUED

56211-48500-291 5621148500291

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

DISCONTINUED

09106-08004-000 0910608004000

Not available

BOLT

01107-12458-000

01500-12457-000

$8,97

Unit Price

WASHER, LOCK

08321-21128-000

08321-01127-000

$3,97

Unit Price

WASHER

08322-11128-000

08322-01127-000

$2,97

Unit Price

CLIP

51455-48510-000 5145548510000

Not available

CLIP

51452-48500-000 5145248500000

Not available

WASHER

08322-21068-000 0832221068000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

SCREW

02112-06128-000

02112-06127-000

$2,97

Unit Price

DISCONTINUED

01104-12408-000 0110412408000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
