RADIATOR (MODEL K / L / M / N) REFER TO FIG.12A(C-8) FOR MODEL P/R

RADIATOR (MODEL P / R) FOR SUZUKI TS-R 125 1991

CLUTCH

Item numbers

DISCONTINUE
RADIATOR, WATER

17710-03D12-000 1771003D12000

Not available

DISCONTINUE

17730-03D00-000

Not available

SCREW, RADIATOR CAP

17733-03D00-000

17733-03D10-000

$3,97

Unit Price

CUSHION, RADIATOR LWR
CUSHION, RADIATOR

17787-19A00-000 1778719A00000

$5,97

Unit Price

HOUSING UP SPACER
SPACER

09180-07004-000 0918007004000

$4,97

Unit Price

WASHER, 6.5X24X1.2

09160-06113-000

09160-06114-000

$3,97

Unit Price

BOLT

01517-06254-000

01550-0625B-000

$3,97

Unit Price

BOLT

01550-06253-000

01550-0625A-000

$3,97

Unit Price

BOLT
BOLT (6X20)

09116-06149-000 0911606149000

$6,97

Unit Price

HOSE, RADIATOR, INLET

17851-03D00-000 1785103D00000

Not available

HOSE, RADIATOR, OUTLET

17852-03D00-000 1785203D00000

Not available

CLAMP

09402-25502-000

09402-28511-000

$13,97

Unit Price

COVER, RADIATOR, RH (BLUE)

17761-03D00-0NF 1776103D000NF

Not available

DISCONTINUE
COVER, RADIATOR, RH (YELLOW)

17761-03D00-25Y 1776103D0025Y

Not available

TAPE, RADIATOR COVER, RH

68665-03D20-A4H 6866503D20A4H

Not available

TAPE, RADIATOR COVER, RH

68665-03D20-A6L 6866503D20A6L

Not available

TAPE, RADIATOR COVER, RH

68665-03D30-C2M 6866503D30C2M

Not available

TAPE, RADIATOR COVER, RH

68665-03D30-C5L 6866503D30C5L

Not available

DISCONTINUE
COVER, RADIATOR, LH (BLUE)

17762-03D00-0NF 1776203D000NF

Not available

DISCONTINUE
COVER, RADIATOR, LH (YELLOW)

17762-03D00-25Y 1776203D0025Y

Not available

TAPE, RADIATOR COVER, LH

68675-03D20-A4H 6867503D20A4H

Not available

TAPE, RADIATOR COVER, LH

68675-03D20-A6L 6867503D20A6L

Not available

TAPE, RADIATOR COVER, LH

68675-03D30-C2M 6867503D30C2M

Not available

TAPE, RADIATOR COVER, LH

68675-03D30-C5L 6867503D30C5L

Not available

SCREW

02142-06107-000 0214206107000

$3,97

Unit Price

DISCONTINUE
LOUVER, RADIATOR

17821-03D00-000 1782103D00000

Not available

SPRING

09446-11002-000 0944611002000

Not available

GUARD, RADIATOR LOUVER, RH

17822-03D00-000 1782203D00000

Not available

GUARD, RADIATOR LOUVER, LH

17823-03D00-000 1782303D00000

Not available

DISCONTINUE
TANK ASSY, RESERVE

17910-03D01-000 1791003D01000

Not available

DISCONTINUE

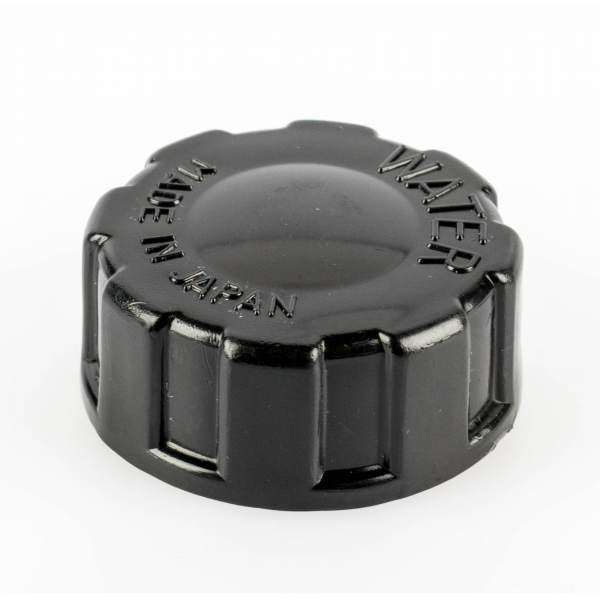

CAP

17845-13700-000 1784513700000

Not available

DISCONTINUE
GASKET

17844-13700-000 1784413700000

Not available

HOSE (5X9X300)

09352-50901-300 0935250901300

Not available

CLIP

09401-08407-000

Not available

HOSE, 5 X 9 X 2000

09352-50901-00A

09352-50901-00B

$30,97

Unit Price

HOLDER, RESERVE TANK

17920-03D00-000 1792003D00000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

DISCONTINUE
PLATE, RESERVE TANK CAP

17934-03D00-000 1793403D00000

Not available

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

SCREW(6X16)
SCREW (6X6)

09136-06061-000 0913606061000

$4,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR (MODEL P/R) of your Suzuki of TS-R. Let us know if you have any questions.
