FRONT MASTER CYLINDER

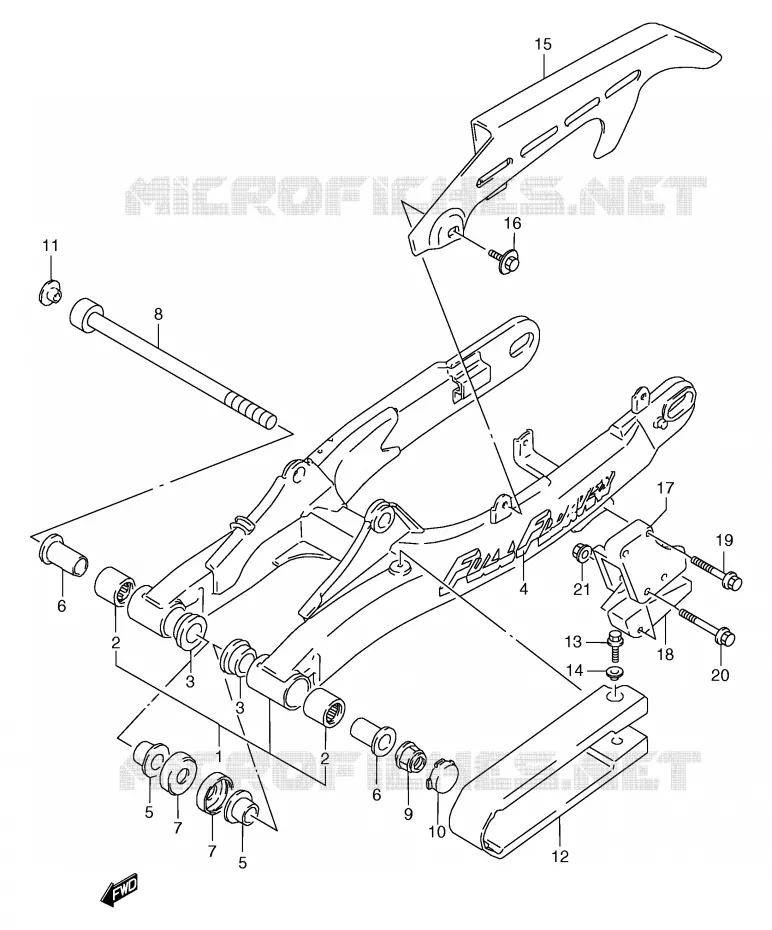

SWINGARM (MODEL K / L) FOR SUZUKI TS-R 125 1994

SWINGARM (MODEL M / N / P) REFER TO FIG.45B(G-9) FOR MODEL R

Item numbers

SWINGING ARM ASSY, REAR

61000-03D00-000 6100003D00000

Not available

ROLLER BEARING

09263-20073-000

09263-20121-000

$32,97

Unit Price

DISCONTINUE
BUSHING

61261-14101-000 6126114101000

Not available

.EMBLEM (YELLOW/BLUE)

68381-44A00-97J 6838144A0097J

Not available

DISCONTINUE
SPACER, PIVOT INNER

61252-14100-000 6125214100000

Not available

DISCONTINUE
SPACER, SWINGING ARM PIVOT

61251-14100-000 6125114100000

Not available

SEAL, DUST

61262-40400-000

61262-40401-000

$12,97

Unit Price

DISCONTINUE

61211-03D00-000

Not available

NUT

08319-31148-000

08319-3114A-000

$16,97

Unit Price

DISCONTINUE
CAP, PIVOT (BLACK)

61222-13A00-019 6122213A00019

Not available

CAP, SHAFT (BLACK)

61223-13A00-019 6122313A00019

Not available

61273-44A00

61273-44A00-000

Not available

DISCONTINUED

01517-05168-000 0151705168000

Not available

WASHER

09169-05012-000 0916905012000

$3,97

Unit Price

CASE, CHAIN (BLACK)

61310-03D00-000 6131003D00000

Not available

DISCONTINUE

61311-36A00-291

Not available

BOLT

09116-06060-000 0911606060000

Not available

DISCONTINUE
GUIDE, CHAIN

61342-02B02-000 6134202B02000

Not available

DEFENSE, CHAIN GUIDE

61348-02B20-000 6134802B20000

$25,97

Unit Price

BOLT

01517-06307-000

01550-06307-000

$3,97

Unit Price

BOLT

01517-06458-000

01550-06457-000

$4,97

Unit Price

NUT 6MM
NUT

08319-31067-000 0831931067000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (MODEL K/L) of your Suzuki of TS-R. Let us know if you have any questions.
