FRONT FORK (MODEL E) REFER TO FIG. 37 (F-3) FOR MODEL E E18 F.NO.106210~

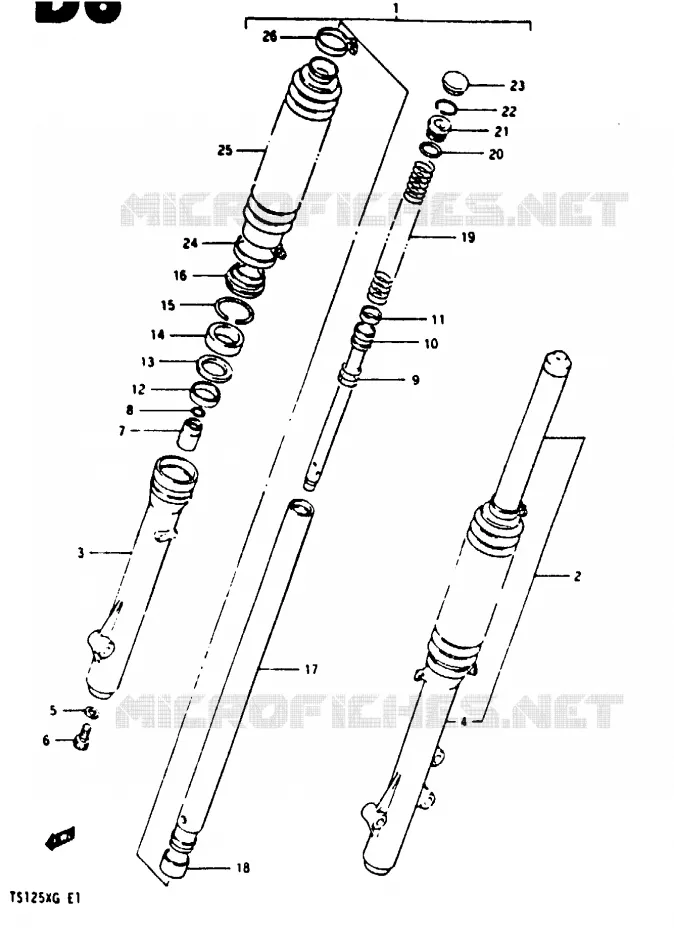

FRONT FORK (MODEL F / G) FOR SUZUKI TS-X 125 1985

STEERING COLUMN (MODEL E) REFER TO FIG. 40 (F-6) FOR MODEL F/G

DAMPER ASSY, RH

51103-01A40-000 5110301A40000

Not available

DAMPER ASSY, LH

51104-01A40-000 5110401A40000

Not available

TUBE, OUTER, R
TUBE, OUTER RH

51131-01A01-000 5113101A01000

$411,97

Unit Price

TUBE, OUTER, L
TUBE, OUTER LH

51141-01A01-000 5114101A01000

$411,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

DISCONTINUE
PIECE, OIL LOCK

51195-01A30-000 5119501A30000

Not available

DISCONTINUE
RING, STOPPER

51169-01A30-000 5116901A30000

Not available

SPRING, REBOUND

51177-01A00-000 5117701A00000

$9,97

Unit Price

CYLINDER

51146-01A30-000 5114601A30000

Not available

RING, PISTON

51196-45200-000 5119645200000

$7,97

Unit Price

BUSH, GUIDE

51152-33300-000 5115233300000

$23,97

Unit Price

SPACER, SEAL

51168-01A30-000

51168-30B00-000

$12,97

Unit Price

DISCONTINUED

51153-20520-000 5115320520000

Not available

DISCONTINUED

51156-31231-000 5115631231000

Not available

SEAL, DUST
DUST SEAL

51173-01A00-000 5117301A00000

$22,97

Unit Price

TUBE, INNER

51110-01A30-000 5111001A30000

$488,97

Unit Price

PISTON

51121-33300-000 5112133300000

$25,97

Unit Price

SPRING

51171-01A00-000 5117101A00000

Not available

O RING

51181-31030-000 5118131030000

$6,97

Unit Price

SPRING SEAT B
SEAT, SPRING

51175-47400-000 5117547400000

$14,97

Unit Price

RING, STOPPER

51169-47400-000 5116947400000

$5,97

Unit Price

CAP

51189-31230-000 5118931230000

$11,97

Unit Price

DISCONTINUE
BAND, LOWER

51576-01A00-000 5157601A00000

Not available

BOOT

51571-01A00-019

51571-01A01-019

$69,97

Unit Price

51571-01A00-34S
DISCONTINUED

51571-01A00-19F

Not available

BAND
BAND, UPPER

51575-01A00-000 5157501A00000

$13,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL F/G) of your Suzuki of TS-X. Let us know if you have any questions.
