HANDLEBAR FOR SUZUKI ACCESS 125 2021

LEVERS - HANDGRIPS

HANDLEBAR

56110-02L00-000 5611002L00000

Not available

STOPPER, HANDLEBAR

51358-09G00-000 5135809G00000

$6,97

Unit Price

BOLT(10X48)

09103-10126-000 0910310126000

$7,97

Unit Price

NUT, FR HUB

64147-33G10-000 6414733G10000

Not available

MIRROR ASSY, REAR VIEW, R

56500-28GA0-000 5650028GA0000

Not available

.ADAPTER, RR VIEW MIRROR

56533-33G60-000 5653333G60000

Not available

MIRROR ASSY, REAR VIEW, L

56600-28GA0-000 5660028GA0000

Not available

.ADAPTER, RR VIEW MIRROR

56533-33G60-000 5653333G60000

Not available

CABLE, FRONT BRAKE

58110-44K01-000 5811044K01000

Not available

CABLE ASSY, THROTTLE NO.1

58300-02L30-000 5830002L30000

Not available

CABLE ASSY, THROTTLE NO.2

58300-02L20-000 5830002L20000

Not available

BOLT

01550-0510A-000

Not available

CABLE, REAR BRAKE NO.1

58510-08K30-000 5851008K30000

Not available

CABLE, REAR BRAKE NO.2

58510-08K40-000 5851008K40000

Not available

SPRING, REAR BRAKE CABLE

58562-08K00-000 5856208K00000

Not available

BRAKE CAM LEVER PIN
PIN(11X18)

09209-11002-000 0920911002000

$3,97

Unit Price

NUT

09150-06010-000

Not available

PLATE, REAR BRAKE CABLE

58575-39J00-000 5857539J00000

Not available

BOLT

01547-0610A-000 015470610A000

$3,97

Unit Price

CLAMP, RR BK CABLE CRKC FR

58577-39J10-000 5857739J10000

Not available

GUIDE, CABLE

58620-02L10-000 5862002L10000

Not available

BOLT

01547-0610A-000 015470610A000

$3,97

Unit Price

SCREW

03541-0520A-000

03541-0520B-000

$3,97

Unit Price

CLAMP(L:235)

58623-08K00-000 5862308K00000

Not available

SCREW

02142-0510B-000 021420510B000

$2,97

Unit Price

CAP, GRIP END

57216-02L01-000 5721602L01000

Not available

SCREW(6X16)

09139-06165-000

09139-06168-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

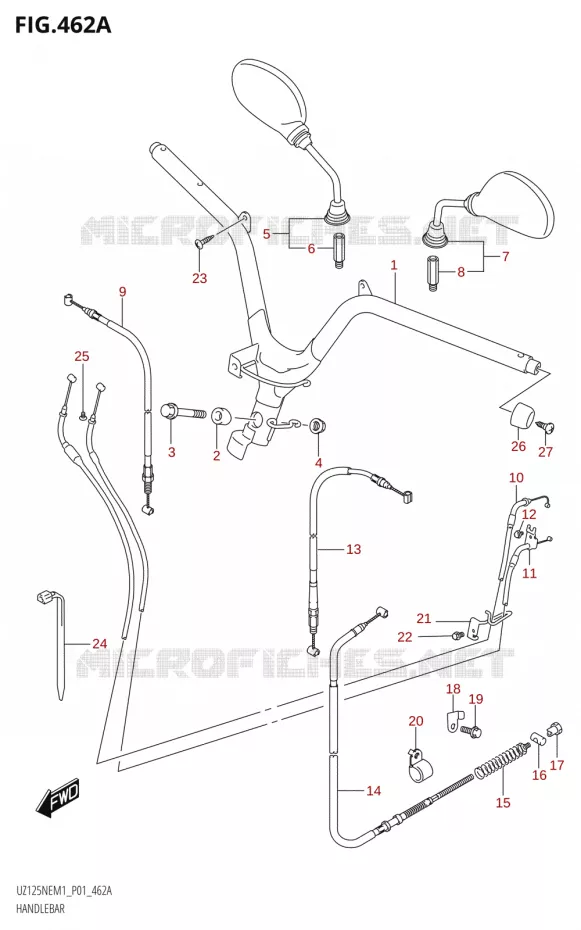

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR of your Suzuki ACCESS 125 of ACCESS. Let us know if you have any questions.
