FRONT FORK FOR SUZUKI ACCESS 125 2023

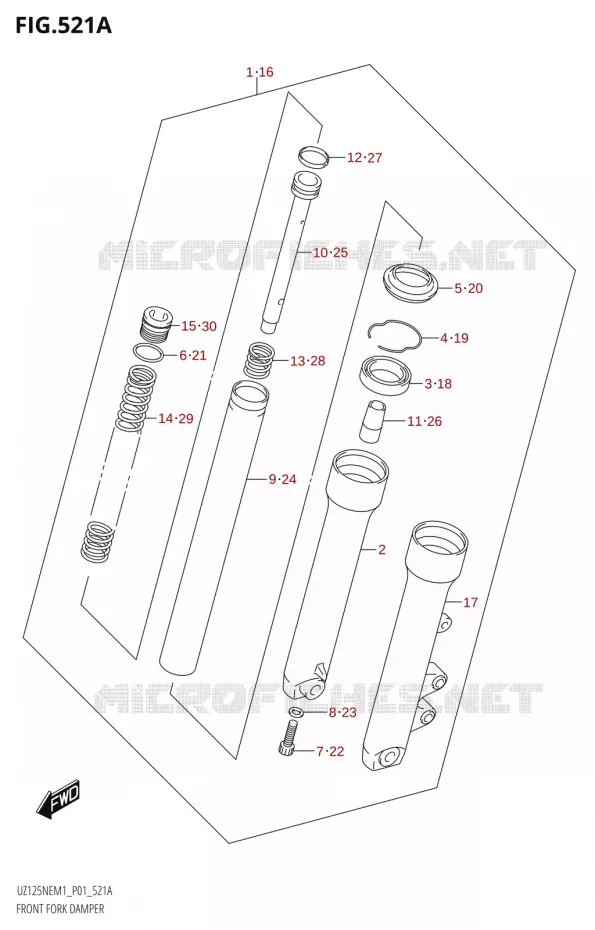

FRONT FORK

DAMPER, FR FORK RH(SILVER)

51103-08K10-13L 5110308K1013L

Not available

.TUBE, OUTER RH(SILVER)

51131-08K10-13L 5113108K1013L

Not available

.SEAL, OIL

51153-33G10-000 5115333G10000

Not available

.RING, SNAP

51156-33G10-000 5115633G10000

Not available

.SEAL, DUST

51173-33G10-000 5117333G10000

Not available

.O-RING

51117-33G10-000 5111733G10000

Not available

.BOLT

51147-33G10-000 5114733G10000

Not available

.GASKET

51148-33G10-000 5114833G10000

Not available

.TUBE, INNER

51110-08K10-000 5111008K10000

Not available

.CYLINDER, FRONT FORK

51146-08K10-000 5114608K10000

Not available

.OIL LOCK PIECE

51195-33G50-000 5119533G50000

Not available

.RING, PISTON

51196-33G10-000 5119633G10000

Not available

.SPRING, REBOUND

51177-33G10-000 5117733G10000

Not available

.SPRING, FRONT

51171-08K10-000 5117108K10000

Not available

.BOLT

51351-33G10-000 5135133G10000

Not available

DAMPER, FR FORK LH(SILVER)

51104-08K10-13L 5110408K1013L

Not available

.TUBE, OUTER LH(SILVER)

51141-08K10-13L 5114108K1013L

Not available

.SEAL, OIL

51153-33G10-000 5115333G10000

Not available

.RING, SNAP

51156-33G10-000 5115633G10000

Not available

.SEAL, DUST

51173-33G10-000 5117333G10000

Not available

.O-RING

51117-33G10-000 5111733G10000

Not available

.BOLT

51147-33G10-000 5114733G10000

Not available

.GASKET

51148-33G10-000 5114833G10000

Not available

.TUBE, INNER

51110-08K10-000 5111008K10000

Not available

.CYLINDER, FRONT FORK

51146-08K10-000 5114608K10000

Not available

.OIL LOCK PIECE

51195-33G50-000 5119533G50000

Not available

.RING, PISTON

51196-33G10-000 5119633G10000

Not available

.SPRING, REBOUND

51177-33G10-000 5117733G10000

Not available

.SPRING, FRONT

51171-08K10-000 5117108K10000

Not available

.BOLT

51351-33G10-000 5135133G10000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki ACCESS 125 of ACCESS. Let us know if you have any questions.
