FAIRING (MODEL S) REFER TO FIG.33A(E-11) FOR MODEL T/V

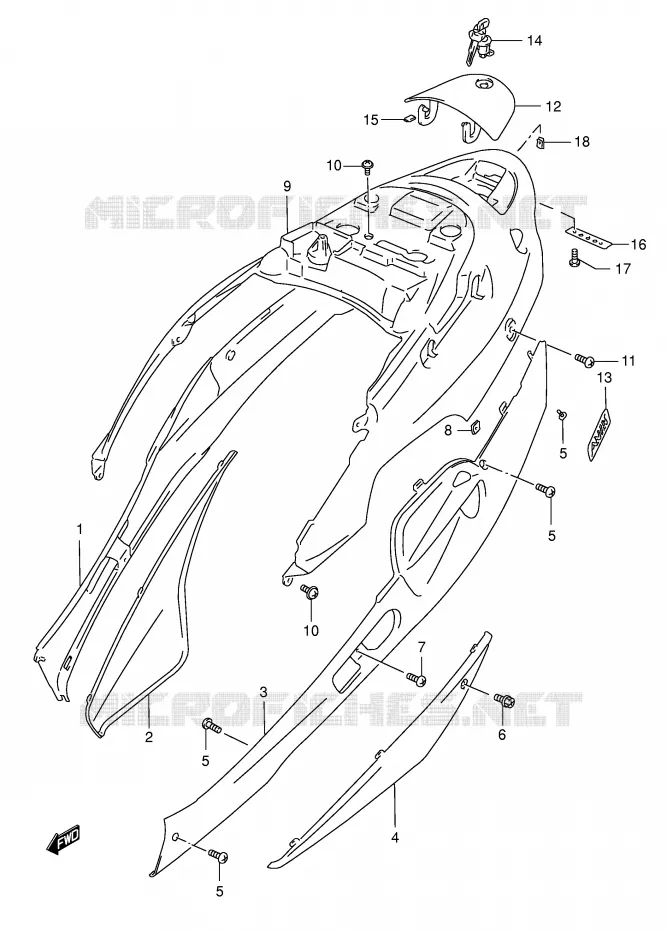

FAIRING (MODEL T / V) FOR SUZUKI BURGMAN 125 1998

FAIRING (MODEL W / X / Y)

Item numbers

COVER, SIDE RH (GRAY)

47111-20E00-26B 4711120E0026B

Not available

COVER, SIDE LOWER RH (GRAY)

47131-20E00-26B 4713120E0026B

Not available

COVER, SIDE LH (GRAY)

47211-20E00-26B 4721120E0026B

Not available

COVER, SIDE LOWER LH (GRAY)

47231-20E10-26B 4723120E1026B

Not available

SCREW

03242-05163-000

03241-0516A-000

$2,97

Unit Price

CLIP
CLIP (BLACK)

09409-06322-5PK 09409063225PK

$4,97

Unit Price

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

NUT

09148-05020-000 0914805020000

$3,97

Unit Price

COVER, FRAME UPPER (MAROON)

47311-20E00-20F 4731120E0020F

Not available

COVER, FRAME UPPER (SILVER)

47311-20E00-20H 4731120E0020H

Not available

COVER, FRAME UPPER (BLUE)

47311-20E00-Y0N 4731120E00Y0N

Not available

COVER, FRAME UPPER (GREEN)

47311-20E00-Y98 4731120E00Y98

Not available

SCREW (6X12)

09136-06002-000 0913606002000

$3,97

Unit Price

SCREW

03242-05163-000

03241-0516A-000

$2,97

Unit Price

LID, FUEL (MAROON)

47371-20E00-20F 4737120E0020F

Not available

LID, FUEL (SILVER)

47371-20E00-20H 4737120E0020H

Not available

LID, FUEL (BLUE)

47371-20E00-Y0N 4737120E00Y0N

Not available

LID, FUEL (GREEN)

47371-20E00-Y98 4737120E00Y98

Not available

EMBLEM, FRAME COVER

68132-20E40-Y3B 6813220E40Y3B

Not available

EMBLEM, FRAME COVER

68132-20E40-Y95 6813220E40Y95

Not available

EMBLEM, FRAME COVER

68132-20E40-Z27 6813220E40Z27

Not available

EMBLEM, FRAME COVER

68132-20E40-Z74 6813220E40Z74

Not available

LOCK SET, UPPER COVER LID

92100-25840-000 9210025840000

Not available

CUSHION, FRAME COVER

47376-20E00-000

47161-19C00-000

$3,97

Unit Price

PLATE, FUEL LID HINGE

47375-20E00-000 4737520E00000

Not available

SCREW

03541-04123-000

03541-0412A-000

$2,97

Unit Price

NUT

09148-05020-000 0914805020000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL T/V) of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
