CYLINDER

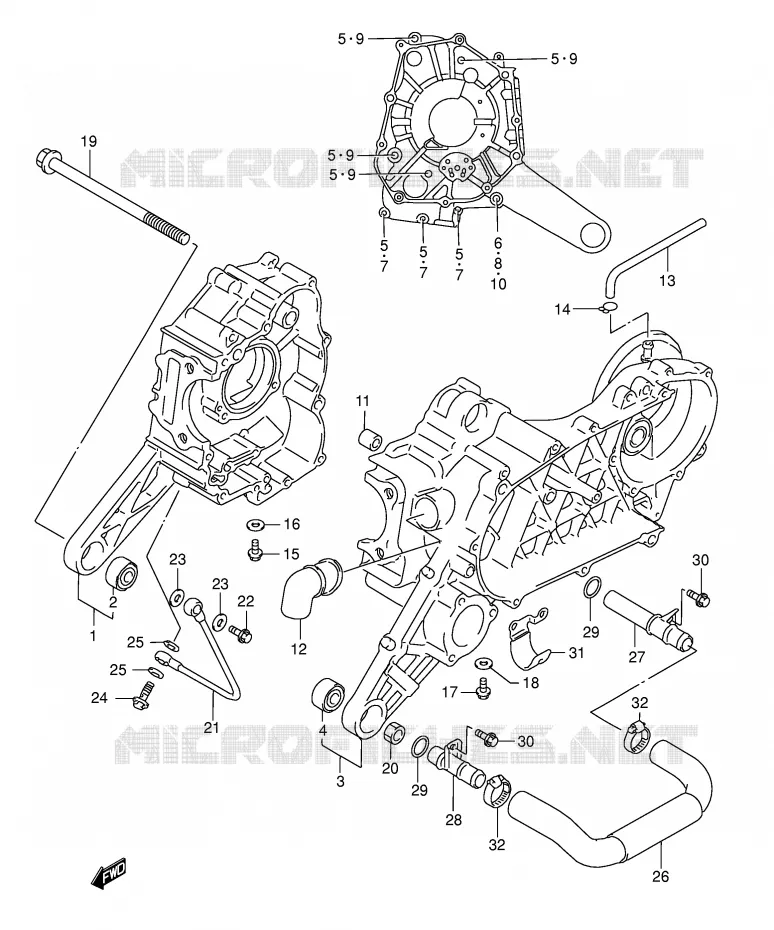

CRANKCASE FOR SUZUKI BURGMAN 125 1999

CRANKCASE COVER (MODEL S) REFER TO FIG.5A (B-8) FOR MODEL T/V/W/X/Y

Item numbers

CRANKCASE SET, RH

11310-20812-000 1131020812000

Not available

CRANKCASE SET, RH

11310-20820-000 1131020820000

Not available

BUSH (12X30.1X22)

09319-12051-000 0931912051000

Not available

CRANKCASE SET, LH

11320-20814-000 1132020814000

Not available

CRANKCASE SET, LH

11320-20820-000 1132020820000

Not available

BUSH (12X30.1X22)

09319-12051-000 0931912051000

Not available

SCREW

02112-06503-000

02112-06508-000

$3,97

Unit Price

SCREW

02112-06853-000

02112-0685B-000

$4,97

Unit Price

SCREW

02112-06503-000

02112-06508-000

$3,97

Unit Price

BOLT

07120-08903-000

07120-0890B-000

$9,97

Unit Price

BOLT

07130-08553-000

07130-0855B-000

$5,97

Unit Price

GASKET, 8.2X14X1
GASKET

09168-08016-000 0916808016000

$2,97

Unit Price

PIN
KNOCK PIN

04211-13189-000 0421113189000

$3,97

Unit Price

TUBE, CRANKCASE

11325-20E00-000 1132520E00000

Not available

HOSE

09343-07150-000 0934307150000

Not available

CLIP, FUELHOSE
CLIP

09401-11403-000 0940111403000

$3,97

Unit Price

PLUG

01551-10163-000 0155110163000

Not available

CRNK DRAIN PLUG GASK
GASKET (10X14X3.6)

09168-10002-000 0916810002000

$2,97

Unit Price

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

GASKET (8.2X14X1.6)

09168-08015-000 0916808015000

$4,97

Unit Price

BOLT (12X204)

09103-12046-000 0910312046000

Not available

NUT

08310-00123-000

08310-0012A-000

$3,97

Unit Price

PIPE, OIL

11280-20E00-000 1128020E00000

Not available

UNION
BOLT (8X25)

09360-08011-000 0936008011000

$6,97

Unit Price

GASKET, 8.2X14X1

09168-08008-000

09168-08016-000

$2,97

Unit Price

UNION

09360-10032-000

09360-10055-000

$6,97

Unit Price

GASKET ****
GASKET (10.1X16X1)

09168-10007-000 0916810007000

$2,97

Unit Price

HOSE, OIL RETURN

11271-20E00-000 1127120E00000

Not available

PIPE, OIL RETURN LOWER

11270-20E01-000 1127020E01000

Not available

PIPE, OIL RETURN

11290-20E01-000 1129020E01000

Not available

O RING

09280-18009-000 0928018009000

$14,97

Unit Price

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

CLAMP, OIL HOSE RETURN

11272-20E00-000 1127220E00000

Not available

CLAMP

09402-28511-000 0940228511000

$13,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
