FUEL PUMP

WATER PUMP FOR SUZUKI BURGMAN 125 2006

RADIATOR

Item numbers

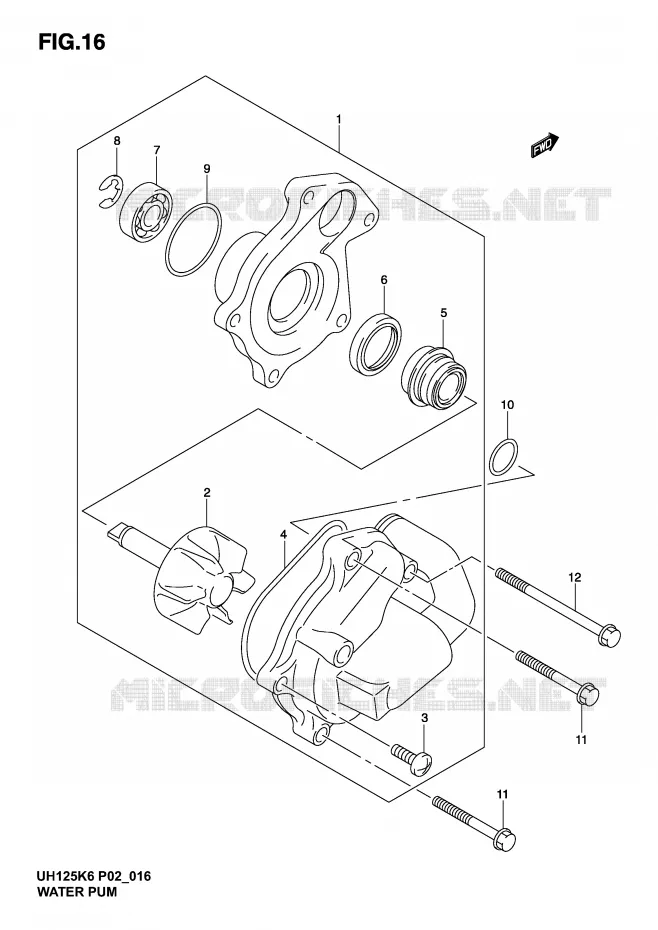

WATER PUMP Suzuki SCOOTER 125 BURGMAN 2006 UH125K6(P2)
1
2
3
4
5
6
7
8
9
10
11
11
12
1
PUMP ASSY, WATER

17400-21F11-000   1740021F11000

1740021F11000
Not available
2
IMPELLER

17491-21F00-000   1749121F00000

1749121F00000

Unit Price

3
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

4
O RING

17418-14F00-000  

17418-14F01-000
 1741814F00000

Unit Price

5
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

6
OIL SEAL, WATER PUMP<br />OIL SEAL
OIL SEAL, WATER PUMP
OIL SEAL

09283-10004-000   0928310004000

0928310004000

Unit Price

7
BEARING,10X26X8<br />BEARING
BEARING, 10X26X8
BEARING

09262-10014-000   0926210014000

0926210014000

Unit Price

8
08332-1108A
E RING

08332-11086-000  

0833211086000
Not available
9
O RING,WATER PUMP HOLDER<br />O RING
O RING, WATER PUMP HOLDER
O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

10
OIL PLUG O RING<br />O RING (D:2.4, ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

11
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

12
BOLT

01547-06553-000  

01547-0655B-000
 0154706553000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 125 BURGMAN 2006
