COOLING FAN

STARTER MOTOR FOR SUZUKI BURGMAN 125 2007

IGNITION

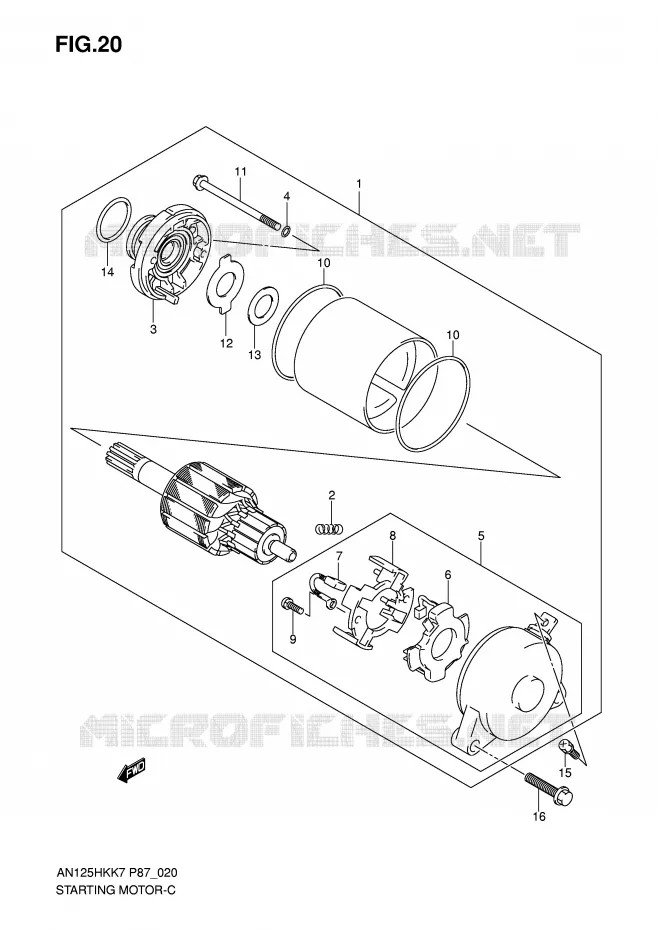

STARTER MOTOR Suzuki SCOOTER 125 BURGMAN 2007 AN125HKK7(P87)
1
STARTER ASSY

31100-20E00-000   3110020E00000

3110020E00000
Not available
2
SPRING
SPRING

31135-32C10-000   3113532C10000

3113532C10000

Unit Price

3
BRACKET
BRACKET

31150-06C00-000   3115006C00000

3115006C00000

Unit Price

4
O RING<br />O RING, STARTER MOTOR
O RING
O RING, STARTER MOTOR

31156-38300-000   3115638300000

3115638300000

Unit Price

5
FRAME ASSY, COMMUTATOR

31175-20E00-000   3117520E00000

3117520E00000
Not available
6
BRUSH SUB ASSY, STARTER
BRUSH SUB ASSY, STARTER

31130-32C20-000   3113032C20000

3113032C20000

Unit Price

7
BRUSH
BRUSH

31132-32C10-000   3113232C10000

3113232C10000

Unit Price

8
HOLDER, BRUSH
HOLDER, BRUSH

31133-32C10-000   3113332C10000

3113332C10000

Unit Price

9
SCREW

02112-34123-000  

02112-3412B-000
 0211234123000

Unit Price

10
O RING
O RING

31264-32C10-000   3126432C10000

3126432C10000

Unit Price

11
BOLT

31281-20E00-000   3128120E00000

3128120E00000

Unit Price

12
PLATE, LOCK

31361-32C10-000   3136132C10000

3136132C10000

Unit Price

13
SHIM
SHIM

31361-38300-000   3136138300000

3136138300000

Unit Price

14
RING,STARTER MOTOR<br />O RING, DD:3, ID:24.5
RING, STARTER MOTOR
O RING, DD:3, ID:24.5

09280-24003-000   0928024003000

0928024003000

Unit Price

15
SCREW(5X8)<br />SCREW, STG MOT TERM, 5X8
SCREW(5X8)
SCREW, STG MOT TERM, 5X8

09137-05004-000   0913705004000

0913705004000

Unit Price

16
BOLT<br />BOLT, STG MOT
BOLT
BOLT, STG MOT

01547-0625B-000   015470625B000

015470625B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 125 BURGMAN 2007

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 125 BURGMAN 2007

Select your Suzuki 2007 model

125 BURGMAN 2007 AN125HKK7(P87)

BURGMAN 125

Suzuki BURGMAN

Displacement: 125 cc
Year: 2007
Model code AN125HKK7(P87)
