CAMSHAFT - VALVES

TIMING FOR SUZUKI BURGMAN 125 2009

THROTTLE BODY

Item numbers

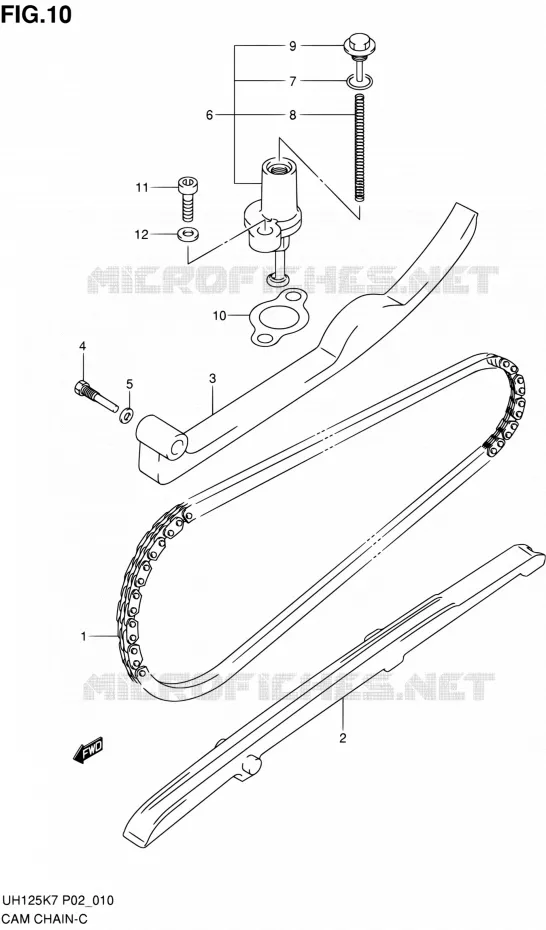

TIMING Suzuki SCOOTER 125 BURGMAN 2009 UH125K9(E19)
1
2
3
4
5
6
7
8
9
10
11
12
1
CHAIN, CAMSHAFT DRIVE

12760-04B00-000   1276004B00000

1276004B00000

Unit Price

2
GUIDE, CAM CHAIN

12771-21F00-000   1277121F00000

1277121F00000
Not available
3
TENSIONER, CAM CHAIN

12811-21F00-000   1281121F00000

1281121F00000
Not available
4
BOLT, CAM CHAIN TENSIONER

12812-32400-000  

12812-32410-000
 1281232400000

Unit Price

5
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

6
ADJUSTER ASSY, TENSIONER

12830-02A00-000   1283002A00000

1283002A00000

Unit Price

7
.O RING
.O RING

12832-02A00-000   1283202A00000

1283202A00000

Unit Price

8
.SPRING

12833-02A00-000   1283302A00000

1283302A00000

Unit Price

9
.PLUG, ADJUSTER
.PLUG, ADJUSTER

12834-02A00-000   1283402A00000

1283402A00000

Unit Price

10
GASKET, TENSIONER ADJUSTER

12837-14D00-000  

12837-19B10-000
 1283714D00000

Unit Price

11
BOLT

07130-0620A-000  

07130-0620B-000
 071300620A000

Unit Price

12
GASKET<br />GASKET, TENSIONER ADJUSTER BOL
GASKET
GASKET, TENSIONER ADJUSTER BOL

09168-06023-000   0916806023000

0916806023000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
