FRONT WHEEL (MODEL EXECUTIVE P19 AND RACING P19)

FRONT CALIPER FOR SUZUKI BURGMAN 125 2011

BRAKE HOSE

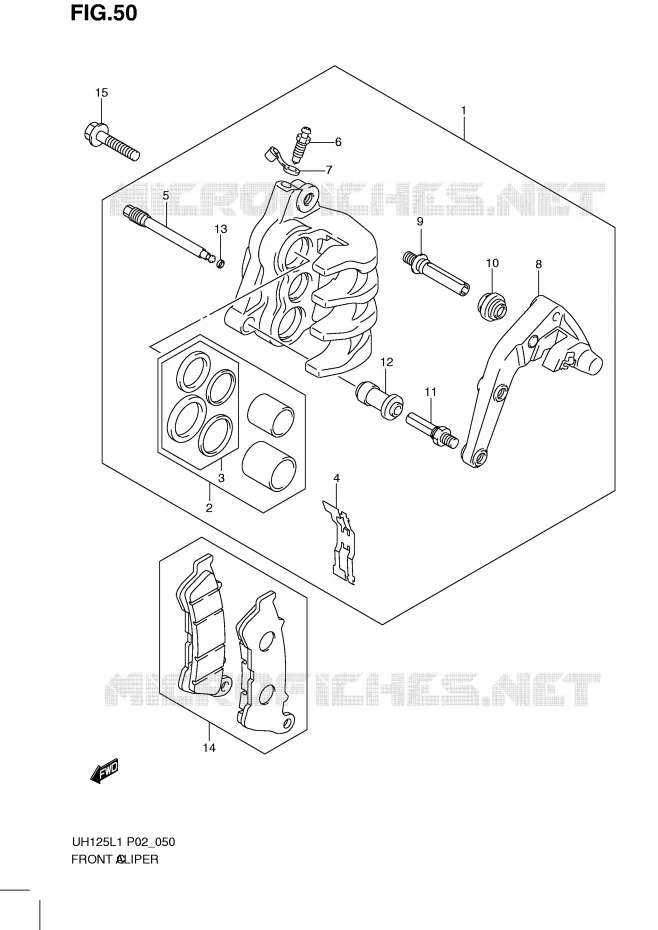

FRONT CALIPER Suzuki SCOOTER 125 BURGMAN 2011 UH125GL1(P2)
1
CALIPER ASSY, FRONT

59100-C03-H00J999   59100C03H00J999

59100C03H00J999
Not available
2
PISTON SET

59100-C03-890J000   59100C03890J000

59100C03890J000
Not available
3
SEAL SET, PISTON

59301-C14-830J000   59301C14830J000

59301C14830J000
Not available
4
SPRING, PAD

59115-C03-H00J000   59115C03H00J000

59115C03H00J000
Not available
5
PIN, PAD

59135-C03-H00J000   59135C03H00J000

59135C03H00J000
Not available
6
BLEEDER

59121-C01-A00J000   59121C01A00J000

59121C01A00J000
Not available
7
CAP, BLEEDER

59122-C01-A00J000   59122C01A00J000

59122C01A00J000
Not available
8
BRACKET

59150-C03-H00J000   59150C03H00J000

59150C03H00J000
Not available
9
PIN, BOLT A

59187-C21-E10J000   59187C21E10J000

59187C21E10J000
Not available
10
BOOT, B

59303-C14-500J000   59303C14500J000

59303C14500J000
Not available
11
PIN, BOLT

59382-C14-500J000   59382C14500J000

59382C14500J000
Not available
12
BOOT, BUSH

59386-C13-A00J000   59386C13A00J000

59386C13A00J000
Not available
13
STOPPER, RING

59145-C37-F00J000   59145C37F00J000

59145C37F00J000
Not available
14
PAD SET

59101-C03-810J000   59101C03810J000

59101C03810J000
Not available
15
BOLT
BOLT (8X35)

01550-0835B-000   015500835B000

015500835B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT CALIPER of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.

Genuine parts for Suzuki 125 BURGMAN 2011
