REAR WHEEL (MODEL EXECUTIVE P19 AND RACING P19)

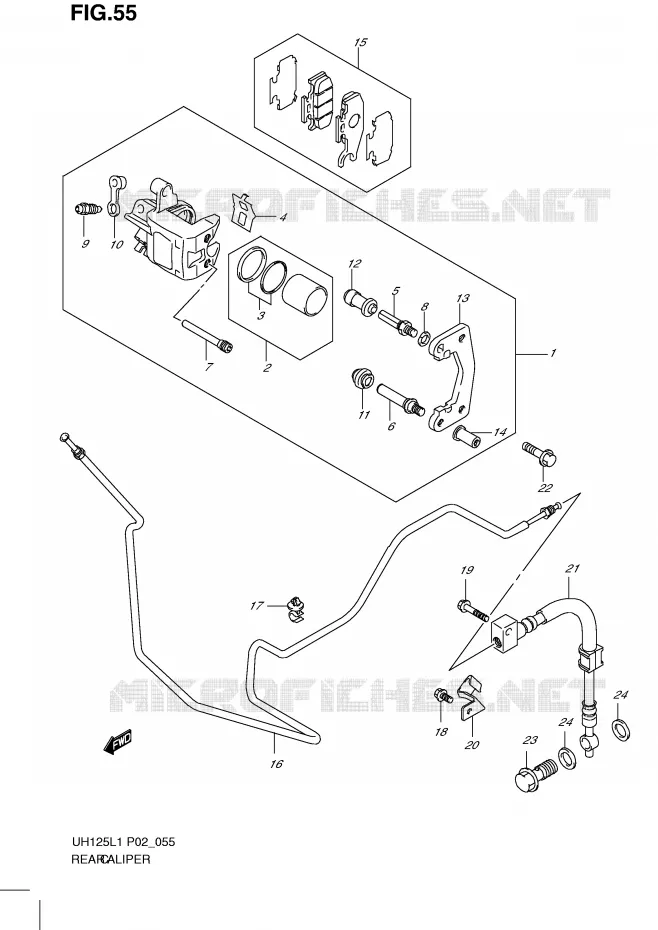

REAR CALIPER FOR SUZUKI BURGMAN 125 2011

REAR BRAKE MASTER CYLINDER

CALIPER ASSY, REAR

69100-C03-H00J000 69100C03H00J000

Not available

PISTON SET

69100-C03-830J000 69100C03830J000

Not available

SEAL SET, PISTON

59100-C38-860J000 59100C38860J000

Not available

SPRING, PAD

59135-C27-C10J000 59135C27C10J000

Not available

59382-C13-A00J000 59382C13A00J000

Not available

PIN, A

59387-C00-B20J000 59387C00B20J000

Not available

PIN, HANGER

69141-C03-H00J000 69141C03H00J000

Not available

WASHER, SPRING

59314-C13-A00J000 59314C13A00J000

Not available

BLEEDER

59121-C01-A00J000 59121C01A00J000

Not available

CAP, BLEEDER

59122-C01-A00J000 59122C01A00J000

Not available

BOOT, B

59303-C14-500J000 59303C14500J000

Not available

BOOT, BUSH

59386-C13-A00J000 59386C13A00J000

Not available

BRACKET, REAR

69151-C03-H00J000 69151C03H00J000

Not available

NUT

59388-C03-H00J000 59388C03H00J000

Not available

PAD & SHIM SET

69100-C03-890J000 69100C03890J000

Not available

PIPE, REAR BRAKE

69250-03H00-000 6925003H00000

Not available

CLAMP
CLAMP, REAR BRAKE PIPE

09403-07331-000 0940307331000

$4,97

Unit Price

BOLT, UH125&200/K8

D1557-0612B-000

D1557-0616B-000

$0,97

Unit Price

BOLT

D1557-0630B-000 D15570630B000

Not available

CLAMP, RR BRAKE HOSE
CLAMP, REAR BRAKE HOSE

69245-03H00-000 6924503H00000

$7,97

Unit Price

HOSE, REAR BRAKE NO.3

69480-03H00-000 6948003H00000

Not available

BOLT

07120-0855B-000

07120-0855A-000

$5,97

Unit Price

BOLT, BRAKE FLUID
BOLT

09360-10062-000 0936010062000

$11,97

Unit Price

WASHER
WHASER

09161-10009-000 0916110009000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
