STARTER MOTOR CLUTCH

CAMSHAFT / VALVE FOR SUZUKI BURGMAN 125 2012

CAMCHAIN

Item numbers

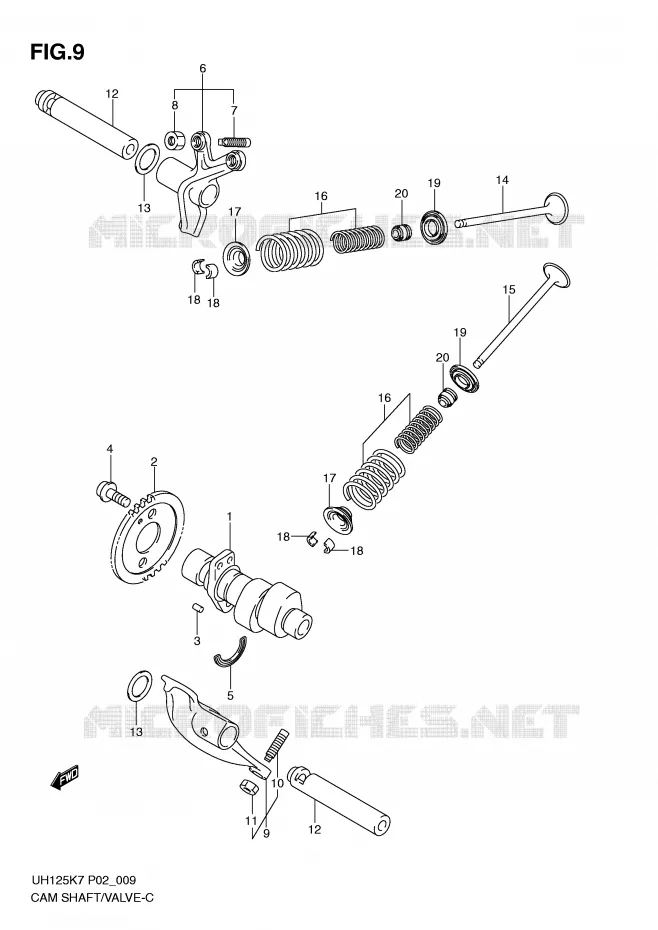

CAMSHAFT/VALVE Suzuki SCOOTER 125 BURGMAN 2012 UH125GL0(P2)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
16
17
17
18
18
18
18
19
19
20
20
1
CAMSHAFT

12710-03H00-000   1271003H00000

1271003H00000
Not available
2
SPROCKET, CAMSHAFT
SPROCKET, CAM SHAFT (NT:34)

12741-04B01-000   1274104B01000

1274104B01000

Unit Price

3
KNOCK PIN, SPROCKET
ROLLER

09261-05005-000   0926105005000

0926105005000

Unit Price

4
BOLT

07120-0610A-000  

07120-0610B-000
 071200610A000

Unit Price

5
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

6
ARM, VALVE ROCKER, INTAKE

12840-49F00-000   1284049F00000

1284049F00000
Not available
7
SCREW, TAPPET ADJUSTING

12842-17C50-000   1284217C50000

1284217C50000

Unit Price

8
NUT, TAPPET ADJUSTING
NUT, TAPPET ADJUSTING

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

9
ARM, VALVE ROCKER, EXHAUST

12850-49F00-000   1285049F00000

1285049F00000
Not available
10
SCREW, TAPPET ADJUSTING

12842-17C50-000   1284217C50000

1284217C50000

Unit Price

11
NUT, TAPPET ADJUSTING
NUT, TAPPET ADJUSTING

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

12
SHAFT, VALVE ROCKER ARM

12861-21F50-000   1286121F50000

1286121F50000
Not available
13
WASHER, V LKR ARM SFT
WASHER, VALVE ROCKER ARM SHAFT

09164-12018-000   0916412018000

0916412018000

Unit Price

14
VALVE, INTAKE

12911-21F00-000   1291121F00000

1291121F00000
Not available
15
VALVE, EXHAUST

12912-21F00-000   1291221F00000

1291221F00000
Not available
16
SPRING, VALVE

12921-03G00-000   1292103G00000

1292103G00000

Unit Price

17
RETAINER, VALVE SPRING

12931-27A20-000   1293127A20000

1293127A20000

Unit Price

18
COTTER, VALVE
COTTER, VALVE

12932-27A00-000   1293227A00000

1293227A00000

Unit Price

19
SEAT, VALVE SPRING
SEAT, VALVE SPRING

12933-81400-000   1293381400000

1293381400000

Unit Price

20
OIL SEAL
OIL SEAL

09289-05011-000   0928905011000

0928905011000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT/VALVE of your Suzuki BURGMAN 125 of BURGMAN. Let us know if you have any questions.
