Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

WATER PUMP FOR SUZUKI SIXTEEN 125 2011

RADIATOR

Item numbers

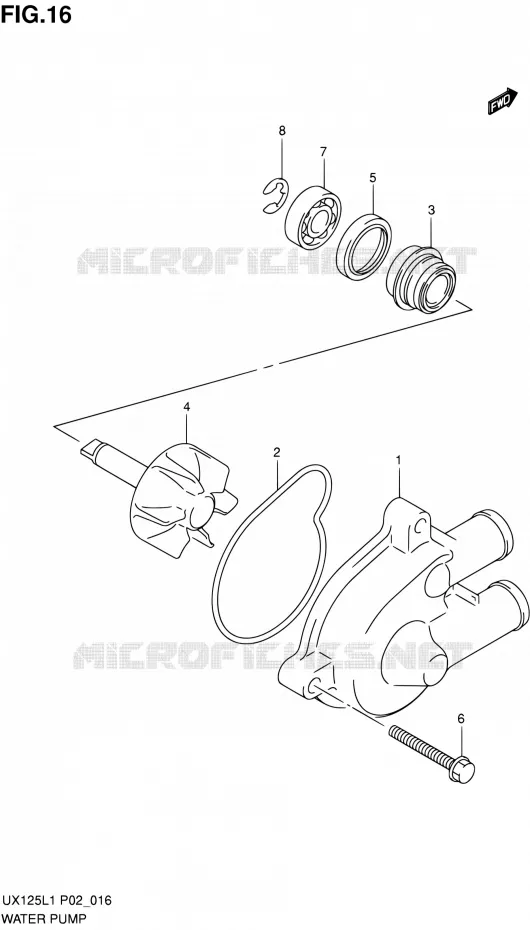

WATER PUMP Suzuki SCOOTER 125 SIXTEEN 2011 UX125L1(P19)
1
2
3
4
5
6
7
8
1
CASE, WATER PUMP

17411-20H00-000   1741120H00000

1741120H00000
Not available
2
O RING,WATER PUMP CASE<br />O RING
O RING, WATER PUMP CASE
O RING

17435-12C00-000   1743512C00000

1743512C00000

Unit Price

3
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

4
IMPELLER, WATER PUMP

17491-20H00-000   1749120H00000

1749120H00000
5
SEAL

09283-10012-000   0928310012000

0928310012000
6
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

7
BEARING
BEARING (10X26X8)

09262-10015-000   0926210015000

0926210015000

Unit Price

8
E RING
E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.

Genuine parts for Suzuki 125 SIXTEEN 2011

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 SIXTEEN 2011

Select your Suzuki 2011 model

125 SIXTEEN 2011 UX125L1(P19)

SIXTEEN 125

Suzuki SIXTEEN

Displacement: 125 cc
Year: 2011
Model code UX125L1(P19)
