Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRACKCASE COVER FOR SUZUKI SIXTEEN 125 2012

CRACKCASE COVER

Item numbers

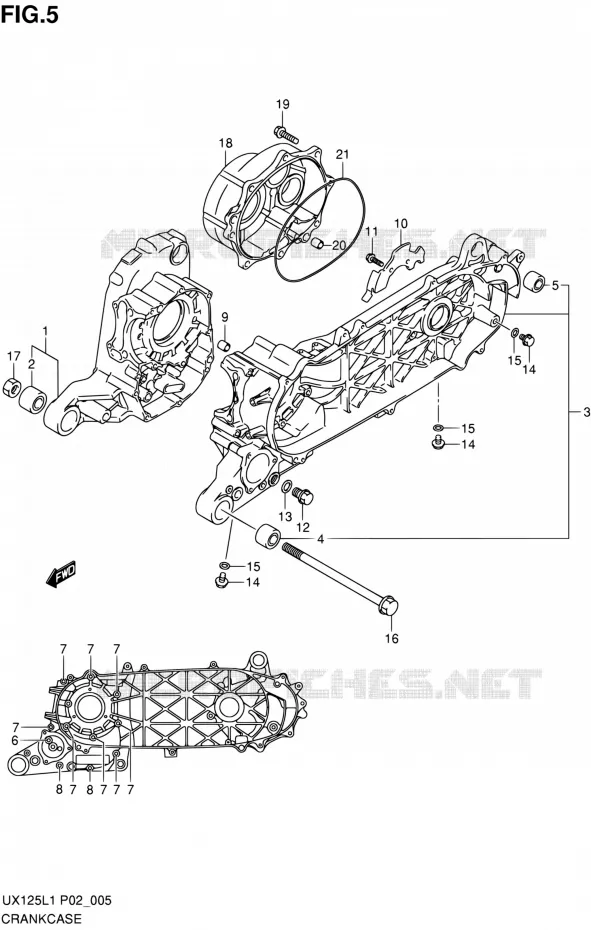

CRACKCASE COVER Suzuki SCOOTER 125 SIXTEEN 2012 UX125L1(P19)
1
2
3
4
5
6
7
7
7
7
7
7
7
7
8
8
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
21
1
CRANKCASE SET, RH

11310-20870-000   1131020870000

1131020870000
Not available
2
.BUSH

11315-33G10-000   1131533G10000

1131533G10000
Not available
3
CRANKCASE SET, LH

11320-21810-000   1132021810000

1132021810000
Not available
4
.BUSH

11315-33G10-000   1131533G10000

1131533G10000
Not available
5
BUSH(10.2X22.3X20)
.BUSH

09319-10032-000   0931910032000

0931910032000

Unit Price

6
BOLT

01547-0660B-000   015470660B000

015470660B000

Unit Price

7
BOLT

01547-0665A-000   015470665A000

015470665A000

Unit Price

8
BOLT

01547-0695A-000  

01547-0695B-000
 015470695A000

Unit Price

9
PIN<br />PIN, CRANKCASE
PIN
PIN, CRANKCASE

04211-09149-000   0421109149000

0421109149000

Unit Price

10
PLATE, GEAR BOX

11323-20H00-000   1132320H00000

1132320H00000
Not available
11
BOLT

01547-0612A-000   015470612A000

015470612A000

Unit Price

12
PLUG
PLUG, OIL DRAIN (12X10)

09247-12006-000   0924712006000

0924712006000

Unit Price

13
GASKET OIL GALLERY<br />GASKET (12.1X16.2X1.2)
GASKET OIL GALLERY
GASKET (12.1X16.2X1.2)

09168-12002-000   0916812002000

0916812002000
Not available
14
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

15
GASKET (8.2X14X1)
GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

16
BOLT (12X230)

09103-12096-000   0910312096000

0910312096000
Not available
17
NUT
NUT

08316-1012A-000   083161012A000

083161012A000

Unit Price

18
COVER SET, GEAR BOX

11431-20H00-000   1143120H00000

1143120H00000
Not available
19
BOLT

01550-0840A-000   015500840A000

015500840A000

Unit Price

20
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

21
O RING (D:2.4, ID:161)

22871-84G10-000   2287184G10000

2287184G10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRACKCASE COVER of your Suzuki SIXTEEN 125 of SIXTEEN. Let us know if you have any questions.
