Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI BANDIT-S 1250 2007

CLUTCH MASTER CYLINDER (GSF1250K7 / AK7 / K8 / AK8 / K9 / AK9) REFER TO FIG.67(J- 9) FOR GSF1250SK7/SAK7/SK8/SAK8/SK9/SAK9/SAZK9/

Item numbers

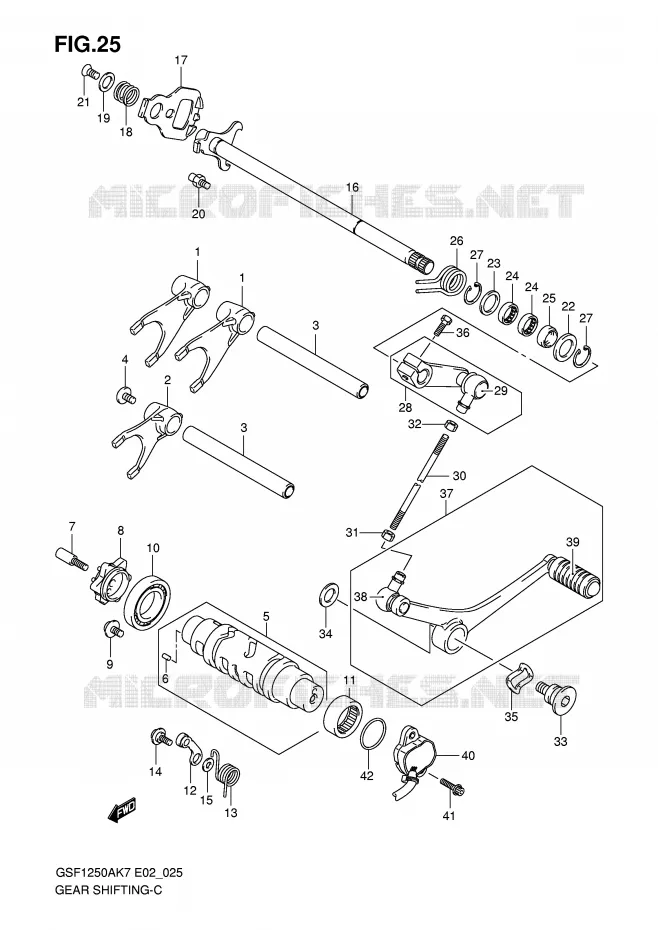

GEAR SHIFTING ASSY Suzuki MOTO 1250 BANDIT-S 2007 GSF1250SAK7(E2)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
FORK, GEAR SHIFT NO.1

25211-01H01-000   2521101H01000

2521101H01000

Unit Price

2
FORK, GEAR SHIFT NO.3

25231-01H01-000  

25231-01H02-000
 2523101H01000

Unit Price

3
SHAFT, GEAR SHIFT FORK (L:128)
SHAFT, GEAR SHIFT FORK (L:128)

25411-27A00-000   2541127A00000

2541127A00000

Unit Price

4
SCREW, 6X12
SCREW, GEAR SHIFT RTNR

09136-06147-000   0913606147000

0913606147000

Unit Price

5
CAM, GEAR SHIFT

25310-18H00-000   2531018H00000

2531018H00000
Not available
6
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

7
BOLT, GEAR SHIFT CAM PLATE
BOLT, GEAR SHIFT CAM

25312-42F01-000   2531242F01000

2531242F01000

Unit Price

8
PLATE, GEAR SHIFT CAM

25381-13E30-000   2538113E30000

2538113E30000

Unit Price

9
SCREW, 6X12
SCREW, GEAR SHIFT RTNR

09136-06147-000   0913606147000

0913606147000

Unit Price

10
BEARING, ROLLER KOYO<br />BEARING, GEAR SHIFT CAM
BEARING, ROLLER KOYO
BEARING, GEAR SHIFT CAM

09262-25006-000   0926225006000

0926225006000

Unit Price

11
R BEARING 25X32X12<br />BEARING, GEAR SHIFT, L
R BEARING 25X32X12
BEARING, GEAR SHIFT, L

09263-25018-000   0926325018000

0926325018000

Unit Price

12
25350-06G10
STOPPER, SHIFT CAM

25350-06G00-000   2535006G00000

2535006G00000
Not available
13
SPRING, GEAR SHIFT CAM STOPPER
SPRING, GEAR SHIFT STOPPER

25355-18H00-000   2535518H00000

2535518H00000

Unit Price

14
BOLT<br />BOLT, SHIFT CAM
BOLT
BOLT, SHIFT CAM

09111-06041-000   0911106041000

0911106041000

Unit Price

15
THRUST WASHER<br />WASHER, CAM STOPPER
THRUST WASHER
WASHER, CAM STOPPER

08211-06141-000   0821106141000

0821106141000

Unit Price

16
SHAFT, GEAR SHIFT

25510-18H00-000   2551018H00000

2551018H00000

Unit Price

17
PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000  

25512-06G20-000
 2551206G10000

Unit Price

18
SPRING, GEAR SHIFT PLATE RETURN
SPRING, GEAR SHIFT RETURN

25518-01H00-000   2551801H00000

2551801H00000

Unit Price

19
WASHER, GEAR SHIFT SHAFT END
WASHER, GEAR SHIFT END

25519-01H00-000   2551901H00000

2551901H00000

Unit Price

20
STOPPER,GEAR SHIFT ARM<br />STOPPER, GEAR SHIFT
STOPPER, GEAR SHIFT ARM
STOPPER, GEAR SHIFT

25671-01011-000   2567101011000

2567101011000

Unit Price

21
SCREW
BOLT, GEAR SHIFT END

09126-06014-000   0912606014000

0912606014000

Unit Price

22
WASHER 14X29X0.8<br />WASHER, GEAR SHIFT, L
WASHER 14X29X0.8
WASHER, GEAR SHIFT, L

09160-14016-000   0916014016000

0916014016000

Unit Price

23
SHIM(14X24X1)
WASHER, GEAR SHIFT

09181-14195-000   0918114195000

0918114195000

Unit Price

24
BEARING, RR CUSHION<br />BEARING, GEAR SHIFT
BEARING, RR CUSHION
BEARING, GEAR SHIFT

09263-14027-000   0926314027000

0926314027000

Unit Price

25
SEAL,OIL(14X22X6)<br />SEAL, GEAR SHIFT OIL
SEAL, OIL(14X22X6)
SEAL, GEAR SHIFT OIL

09283-14006-000   0928314006000

0928314006000

Unit Price

26
SPRING<br />SPRING, SHIFT SHAFT RETURN
SPRING
SPRING, SHIFT SHAFT RETURN

09444-20001-000   0944420001000

0944420001000

Unit Price

27
CIRCLIP<br />CIRCLIP, GEAR SHIFT SHAFT
CIRCLIP
CIRCLIP, GEAR SHIFT SHAFT

08331-3114A-000   083313114A000

083313114A000

Unit Price

28
ARM, GEAR SHIFT LINK

25520-18H00-000  

25520-18H01-000
 2552018H00000

Unit Price

29
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

30
ROD, GEAR SHIFT LINK
ROD, GEAR SHIFT LINK

25525-05A10-000   2552505A10000

2552505A10000

Unit Price

31
NUT<br />NUT, GEAR SHIFT LINK, L
NUT
NUT, GEAR SHIFT LINK, L

09140-06025-000   0914006025000

0914006025000

Unit Price

32
NUT<br />NUT, GEAR SHIFT LINK
NUT
NUT, GEAR SHIFT LINK

08310-00067-000   0831000067000

0831000067000

Unit Price

33
BOLT, GEAR SHIFT LEVER

25617-18H00-000   2561718H00000

2561718H00000

Unit Price

34
HDLBAR LOW CLP WASHR<br />WASHER, GEAR SHIFT LEVER
HDLBAR LOW CLP WASHR
WASHER, GEAR SHIFT LEVER

09160-10035-000   0916010035000

0916010035000

Unit Price

35
WASHER
WASHER, GEAR SHIFT WAVE

09164-18009-000   0916418009000

0916418009000

Unit Price

36
BOLT<br />BOLT, GEAR SHIFT LINK ARM
BOLT
BOLT, GEAR SHIFT LINK ARM

01500-0620A-000   015000620A000

015000620A000

Unit Price

37
DISCONTINUE
LEVER ASSY, GEAR SHIFT

25600-18H00-000  

25600-18H01-000
 2560018H00000
38
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

39
RUBBER,GEAR SHIFT PEDAL<br />RUBBER
RUBBER, GEAR SHIFT PEDAL
RUBBER

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

40
SENSOR ASSY, GEAR POSITION

37730-18H01-000  

37730-18H03-000
 3773018H01000

Unit Price

41
BOLT
BOLT, GEAR SHIFT SW

09106-05023-000   0910605023000

0910605023000

Unit Price

42
O RING<br />O RING (D:2.40,ID:26.2)
O RING
O RING (D:2.40, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of BANDIT-S. Let us know if you have any questions.

Genuine parts for Suzuki 1250 BANDIT-S 2007
