FUEL TANK (MODEL K9) REFER TO FIG.42B(F-11) FOR MODEL L0

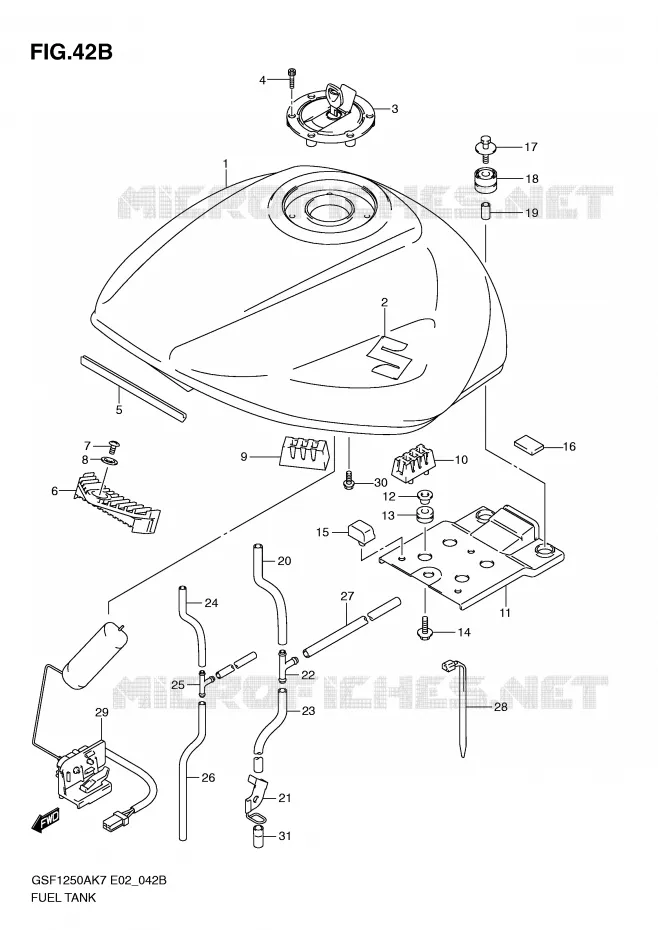

FUEL TANK (MODEL L0) FOR SUZUKI BANDIT-S 1250 2009

FAIRING

Item numbers

44100-18H31-YAY
TANK ASSY, FUEL (BLACK)

44100-18H00-YAY

Not available

TANK ASSY, FUEL (GRAY)

44100-18H00-YLF 4410018H00YLF

Not available

TANK ASSY, FUEL (GRAY)

44100-18H00-YWB 4410018H00YWB

Not available

TANK ASSY, FUEL (BLACK)

44100-18H10-YAY 4410018H10YAY

Not available

TANK ASSY, FUEL (GRAY)

44100-18H10-YLF 4410018H10YLF

Not available

TANK ASSY, FUEL (GRAY)

44100-18H10-YWB 4410018H10YWB

Not available

EMBLEM, S
EMBLEM, "S"

68111-18G20-000 6811118G20000

$28,97

Unit Price

CAP SET, FUEL TANK FILLER

44200-16850-000

44200-16852-000

$206,97

Unit Price

BOLT, L:20
BOLT

09106-05017-000 0910605017000

$4,97

Unit Price

MOLDING

68241-04X50-300 6824104X50300

$11,97

Unit Price

CUSHION, FUEL TANK FR
CUSHION, FRONT

44511-27E00-000 4451127E00000

$20,97

Unit Price

SCREW

02142-0510B-000 021420510B000

$3,97

Unit Price

WASHER

09169-05012-000 0916905012000

$3,97

Unit Price

CUSHION, SUPPORT(50X25X32)
CUSHION, SIDE

45149-45330-000 4514945330000

$6,97

Unit Price

CUSHION, TANK SIDE
CUSHION, FUEL TANK SIDE

44541-31F00-000 4454131F00000

$16,97

Unit Price

BRACKET, REAR

44141-38G00-000 4414138G00000

Not available

WASHER
WASHER, LOWER

09169-06062-000 0916906062000

$4,97

Unit Price

09320-08527
CUSHION

09320-08001-000 0932008001000

Not available

BOLT(6X20)
BOLT

09116-06192-000 0911606192000

$3,97

Unit Price

CUSHION

45149-21G00-000 4514921G00000

$7,97

Unit Price

CUSHION(15X23X4)
CUSHION

47163-10FA0-000 4716310FA0000

$7,97

Unit Price

BOLT

09116-06172-000 0911606172000

$4,97

Unit Price

CUSHION

44541-38G00-000 4454138G00000

Not available

SPACER, 6.5X9X18
SPACER

09180-06271-000 0918006271000

$3,97

Unit Price

HOSE, WATER DRAIN

44423-16G10-000

44423-16G11-000

$16,97

Unit Price

GUIDE, DRAIN HOSE

44480-07J00-000 4448007J00000

Not available

UNION 3WAY
3 WAY, DRAIN HOSE

09367-08004-000 0936708004000

$7,97

Unit Price

HOSE(7X10.2X600)

09352-70103-600

09352-70104-600

$10,97

Unit Price

44425-09E00
HOSE, BREATHER

44424-38G00-000

Not available

HOSE, 3-WAY
3 WAY

09367-06002-000 0936706002000

$5,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

HOSE, 5X8.2X2000

09352-50823-00B

09352-50005-00B

$19,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

GAUGE ASSY, FUEL LEVEL SENDER

34810-18H00-000

34810-18H01-000

$158,97

Unit Price

BOLT

01500-0612A-000 015000612A000

$3,97

Unit Price

HOSE(13.5X16.5X10)
HOSE, JOINT

09352-13162-010 0935213162010

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL L0) of your Suzuki of BANDIT-S. Let us know if you have any questions.
