HANDGRIPS - LEVERS

SWINGARM FOR SUZUKI BANDIT 1250 2009

FRONT FORK

Item numbers

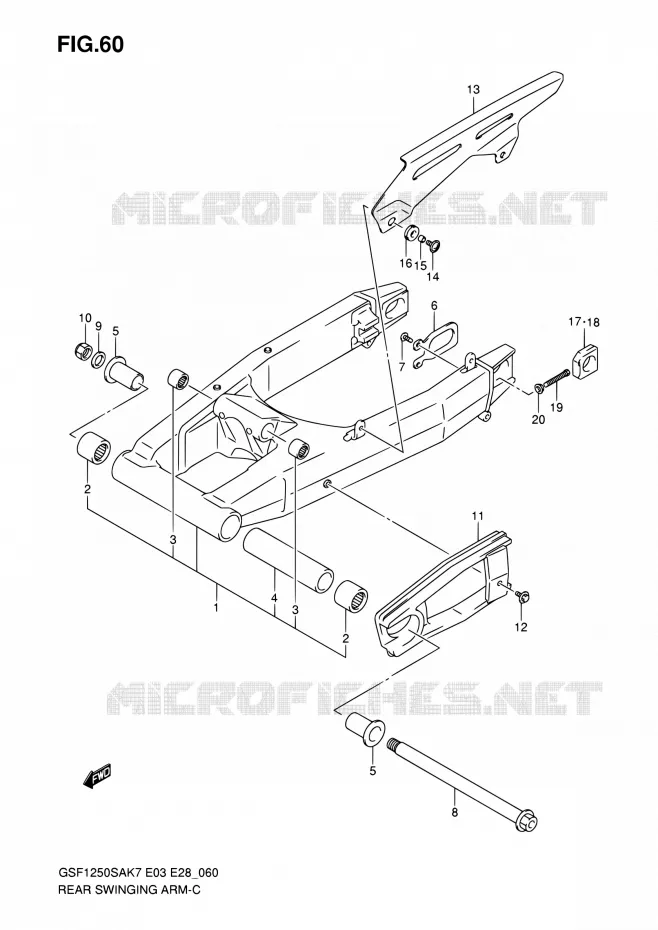

SWINGARM Suzuki MOTO 1250 BANDIT 2009 GSF1250S K9 (E03,E28,E33)
1
1
2
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
DISCONTINUE
SWINGING ARM ASSY, REAR

61000-49G00-000   6100049G00000

6100049G00000
Not available
1
SWINGINGARM ASSY, RR
SWINGING ARM ASSY, REAR

61000-49G10-YAP  

6100049G10YAP
Not available
2
BEARING
BEARING

09263-25059-000  

09263-25073-000
 0926325059000

Unit Price

3
BEARING
BEARING

09263-17037-000  

09263-17053-000
 0926317037000

Unit Price

4
SPACER,RR SWGARM PIVOT CTR<br />.SPACER
SPACER, RR SWGARM PIVOT CTR
.SPACER

61282-31E00-000   6128231E00000

6128231E00000

Unit Price

5
SPACER,PIVOT BEARING<br />SPACER, BEARING
SPACER, PIVOT BEARING
SPACER, BEARING

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

6
PLATE,RR SWING ARM BRKT<br />PLATE, RR SWGARM BRACKET
PLATE, RR SWING ARM BRKT
PLATE, RR SWGARM BRACKET

61124-33E00-000   6112433E00000

6112433E00000

Unit Price

7
SCREW

02142-0616B-000   021420616B000

021420616B000

Unit Price

8
SHAFT,RR SWINGINGARM PIVOT<br />SHAFT, PIVOT
SHAFT, RR SWINGINGARM PIVOT
SHAFT, PIVOT

61211-31E00-000   6121131E00000

6121131E00000

Unit Price

9
WASHER,18.5X28X2.6<br />WASHER
WASHER, 18.5X28X2.6
WASHER

09160-18030-000   0916018030000

0916018030000

Unit Price

10
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

11
BUFFER, CHAIN TOUCH D

61273-49G10-000  

61273-49G11-000
 6127349G10000

Unit Price

12
BOLT
SCREW, CHAIN BUFFER

09111-06072-000   0911106072000

0911106072000

Unit Price

13
CASE, CHAIN

61311-27E20-000   6131127E20000

6131127E20000

Unit Price

14
SCREW 6 X 16<br />SCREW
SCREW 6 X 16
SCREW

09136-06017-000   0913606017000

0913606017000

Unit Price

15
SPACER(6.2X8.3X6.1)<br />SPACER, CHAIN CASE
SPACER(6.2X8.3X6.1)
SPACER, CHAIN CASE

09180-06092-000   0918006092000

0918006092000

Unit Price

16
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

17
ADJUSTER, CHAIN LH

61445-40F20-000  

61445-40F00-000
 6144540F20000

Unit Price

18
ADJUSTER, CHAIN RH

61446-40F10-000  

61446-40F00-000
 6144640F10000

Unit Price

19
BOLT
BOLT

09100-08287-000   0910008287000

0910008287000

Unit Price

20
NUT
NUT

08316-1008B-000   083161008B000

083161008B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of BANDIT. Let us know if you have any questions.
