Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (GSF1250L1 E21)

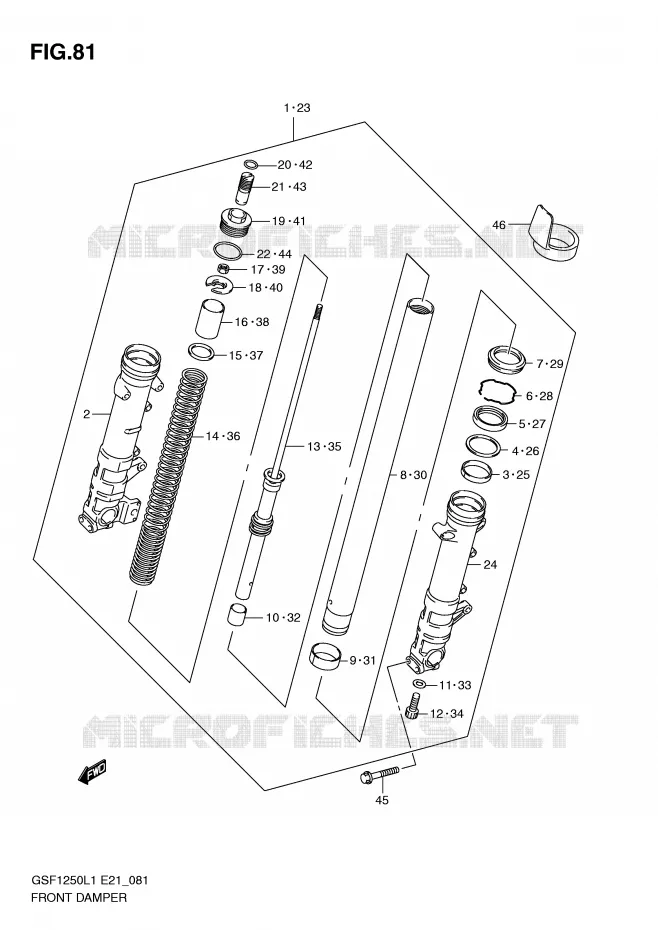

FRONT FORK (GSF1250L1 E24) FOR SUZUKI BANDIT 1250 2011

FRONT FORK (GSF1250AL1 E21)

DAMPER ASSY, FRONT FORK RH

51103-07J00-000 5110307J00000

Not available

TUBE, OUTER, R(BLACK)
TUBE, OUTER RH

51131-49G90-000 5113149G90000

$796,97

Unit Price

BUSH, GUIDE

51152-07J00-000 5115207J00000

$22,97

Unit Price

SPACER, SEAL

51168-17C00-000 5116817C00000

$9,97

Unit Price

SEAL, OIL

51153-47H00-000 5115347H00000

$25,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST

51173-27G00-000 5117327G00000

$24,97

Unit Price

TUBE, INNER

51110-07J00-000 5111007J00000

$626,97

Unit Price

BUSH, SLIDE

51121-07J00-000 5112107J00000

$27,97

Unit Price

PIECE, OIL LOCK

51195-31E00-000 5119531E00000

$39,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

ROD, DAMPER

52110-07J00-000 5211007J00000

Not available

SPRING, FR
SPRING, FRONT

51171-49G70-000 5117149G70000

$101,97

Unit Price

SEAT, SPRING LWR
SEAT, SPRING LOWER

51186-17C00-000 5118617C00000

$9,97

Unit Price

COLLAR, SPRING(32.9X34X50)
COLLAR, SPRING

51176-12C10-000 5117612C10000

$16,97

Unit Price

NUT

51827-27E00-000 5182727E00000

$3,97

Unit Price

SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000 5117217C00000

$16,97

Unit Price

BOLT, FORK

51189-14D00-000 5118914D00000

$95,97

Unit Price

O RING, 02.5, ID:13.8

51834-17C00-000

09280-14011-000

$8,97

Unit Price

ADJUSTER, SPRING

51185-31E00-000 5118531E00000

$70,97

Unit Price

O RING

51117-17C00-000 5111717C00000

$8,97

Unit Price

DAMPER ASSY, FRONT FORK LH

51104-07J00-000 5110407J00000

Not available

TUBE, OUTER, L(BLACK)
TUBE, OUTER LH

51141-49G90-000 5114149G90000

$796,97

Unit Price

BUSH, GUIDE

51152-07J00-000 5115207J00000

$22,97

Unit Price

SPACER, SEAL

51168-17C00-000 5116817C00000

$9,97

Unit Price

SEAL, OIL

51153-47H00-000 5115347H00000

$25,97

Unit Price

CIRCLIP, FORK OIL SEAL
RING, STOPPER

51556-38B00-000 5155638B00000

$10,97

Unit Price

SEAL, DUST

51173-27G00-000 5117327G00000

$24,97

Unit Price

TUBE, INNER

51110-07J00-000 5111007J00000

$626,97

Unit Price

BUSH, SLIDE

51121-07J00-000 5112107J00000

$27,97

Unit Price

PIECE, OIL LOCK

51195-31E00-000 5119531E00000

$39,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

ROD, DAMPER

52110-07J00-000 5211007J00000

Not available

SPRING, FR
SPRING, FRONT

51171-49G70-000 5117149G70000

$101,97

Unit Price

SEAT, SPRING LWR
SEAT, SPRING LOWER

51186-17C00-000 5118617C00000

$9,97

Unit Price

COLLAR, SPRING(32.9X34X50)
COLLAR, SPRING

51176-12C10-000 5117612C10000

$16,97

Unit Price

NUT

51827-27E00-000 5182727E00000

$3,97

Unit Price

SEAT, SPRING UPR
SEAT, SPRING UPPER

51172-17C00-000 5117217C00000

$16,97

Unit Price

BOLT, FORK

51189-14D00-000 5118914D00000

$95,97

Unit Price

O RING, 02.5, ID:13.8

51834-17C00-000

09280-14011-000

$8,97

Unit Price

ADJUSTER, SPRING

51185-31E00-000 5118531E00000

$70,97

Unit Price

O RING

51117-17C00-000 5111717C00000

$8,97

Unit Price

BOLT, OUTER TUBE
BOLT

51166-27E30-000 5116627E30000

$8,97

Unit Price

PROTECTOR

51201-32F00-000 5120132F00000

$22,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (GSF1250L1 E24) of your Suzuki of BANDIT. Let us know if you have any questions.

Select your Suzuki 2011 model
