CYLINDER

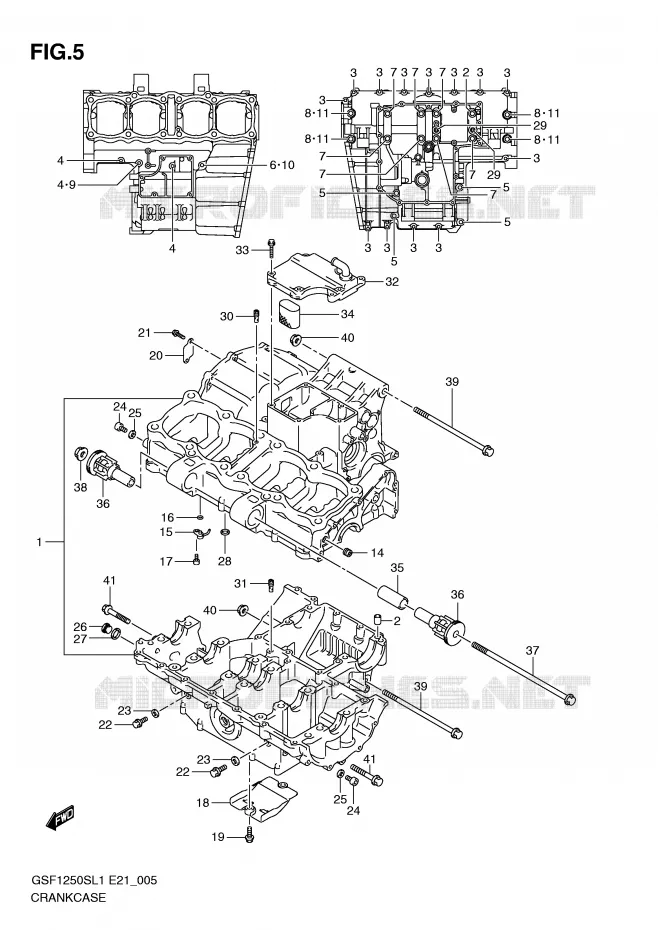

CRANKCASE FOR SUZUKI BANDIT 1250 2011

CRANKCASE COVER

Item numbers

DISCONTINUE
CRANKCASE SET

11301-18820-000 1130118820000

Not available

PIN, CRANKCASE
PIN

11319-33E50-000 1131933E50000

$8,97

Unit Price

BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

BOLT

01547-0655A-000 015470655A000

$3,97

Unit Price

BOLT

01550-0870A-000 015500870A000

$6,97

Unit Price

BOLT

01550-0890A-000 015500890A000

Not available

BOLT (9X135)

09103-09005-000 0910309005000

Not available

BOLT (9X95)

09103-09008-000 0910309008000

$10,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

GASKET (10.2X20X2.3)

09168-10031-000 0916810031000

$3,97

Unit Price

BEARING, CRANK THRUST(GREEN)
BEARING, THRUST RH (GREEN)

12228-17E00-0D0 1222817E000D0

$13,97

Unit Price

BEARING, CRANK THRUST(RED)
BEARING, THRUST LH (RED)

12228-17E00-0A0 1222817E000A0

$13,97

Unit Price

BEARING, CRANK THRUST
BEARING, THRUST LH (BLACK)

12228-17E00-0B0 1222817E000B0

$13,97

Unit Price

BEARING, CRANK THRUST(BLUE)
BEARING, THRUST LH (BLUE)

12228-17E00-0C0 1222817E000C0

$13,97

Unit Price

BEARING, CRANK THRUST(GREEN)
BEARING, THRUST LH (GREEN)

12228-17E00-0D0 1222817E000D0

$13,97

Unit Price

BEARING, CRANK THRUST(YELLOW)
BEARING, THRUST LH (YELLOW)

12228-17E00-0E0 1222817E000E0

$13,97

Unit Price

BEARING, CRANK THRUST(WHITE)
BEARING, THRUST LH (WHITE)

12228-17E00-0F0 1222817E000F0

$11,97

Unit Price

JET, OIL GALLERY(3.6)
JET, OIL GALLERY

11329-02F00-000 1132902F00000

$6,97

Unit Price

JET, PISTON COOLING

11390-18H00-000 1139018H00000

Not available

O RING
O RING (D:1.2, ID:4.0)

09280-04004-000 0928004004000

$2,97

Unit Price

BOLT (6X12)

09106-06075-000 0910606075000

$3,97

Unit Price

SEPARATOR, OIL

11323-18H00-000 1132318H00000

$33,97

Unit Price

BOLT

01550-0620A-000 015500620A000

$3,97

Unit Price

PLATE, OIL SEPARATOR

11317-18H00-000 1131718H00000

Not available

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

BOLT
PLUG

01550-0612A-000 015500612A000

$2,97

Unit Price

GASKET, OIL GALLERY
GASKET (6.2X13X1.2)

09168-06018-000 0916806018000

$2,97

Unit Price

PLUG
PLUG, OIL GALLERY

07130-0812A-000 071300812A000

$5,97

Unit Price

GASKET (8.2X14X1)

09168-08016-000 0916808016000

$2,97

Unit Price

PLUG, OIL
PLUG

09248-16012-000 0924816012000

$8,97

Unit Price

GASKET OIL GALLERY
GASKET (16X22X2)

09168-16002-000 0916816002000

$2,97

Unit Price

O RING (D:1.9, ID:7.8)

09280-08012-000 0928008012000

$6,97

Unit Price

O RING (D:1.9, ID:12.6)

09280-12009-000 0928012009000

$4,97

Unit Price

JET(140)
JET, HEAD

09493-28012-000 0949328012000

$23,97

Unit Price

JET, AIR(180)
JET, T/M

09493-36006-000 0949336006000

$28,97

Unit Price

COVER, BREATHER

11330-18H10-000 1133018H10000

Not available

BOLT, CL COV/MAG COV,
BOLT (6X30)

09103-06213-000 0910306213000

$4,97

Unit Price

SEPARATOR, BREATHER

11318-18H00-000 1131818H00000

Not available

SPACER, ENG MTG
SPACER

11611-48G00-000 1161148G00000

$19,97

Unit Price

BUSH, ENGINE MOUNTING
BUSH

11652-10G30-000 1165210G30000

$24,97

Unit Price

BOLT
BOLT (10X215)

09103-10041-A05 0910310041A05

$17,97

Unit Price

NUT

08319-3110A-000 083193110A000

$3,97

Unit Price

BOLT (12X155)

09103-12031-000 0910312031000

$20,97

Unit Price

NUT

08319-3112A-000 083193112A000

$5,97

Unit Price

BOLT

01550-1050A-000 015501050A000

$6,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of BANDIT. Let us know if you have any questions.
