Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI BANDIT 1250 2012

RADIATOR HOSE - EXPANSION TANK

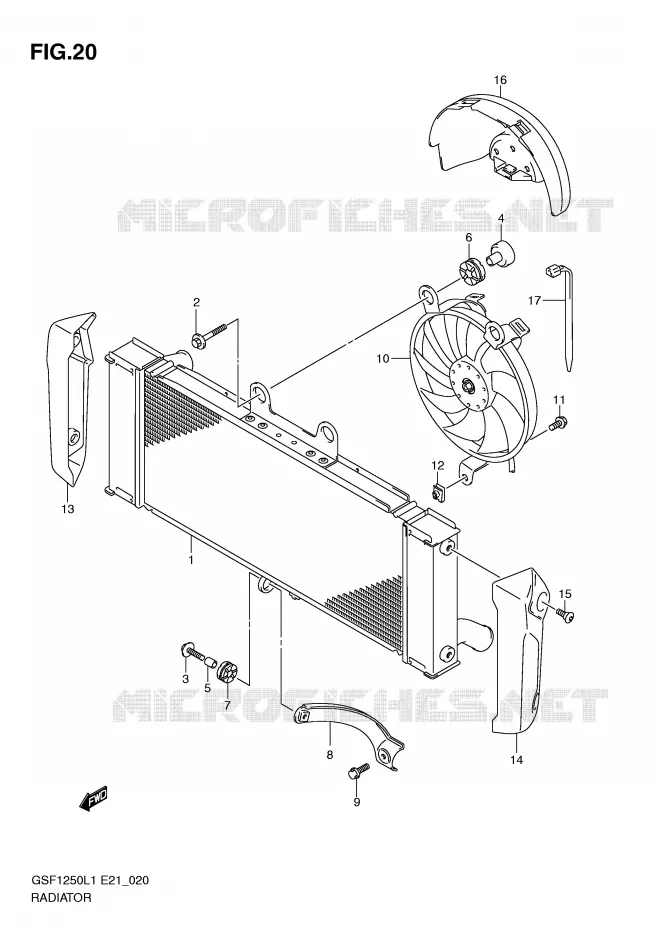

RADIATOR Suzuki MOTO 1250 BANDIT 2012 GSF1250L1(E21)
1
RADIATOR ASSY, WATER

17710-18H00-000  

17710-18H30-000
 1771018H00000

Unit Price

2
BOLT, 2ND AIR SPRT
BOLT (6X37)

09116-06176-000   0911606176000

0911606176000

Unit Price

3
BOLT 6*25<br />BOLT (6X25)
BOLT 6*25
BOLT (6X25)

09118-06097-000   0911806097000

0911806097000

Unit Price

4
SPACER, RADIATOR UPR
SPACER

17731-18H00-000   1773118H00000

1773118H00000

Unit Price

5
SPACER (6.5X10X12)
SPACER (6.5X10X12)

09180-06290-000   0918006290000

0918006290000

Unit Price

6
CUSHION

09320-10062-000   0932010062000

0932010062000

Unit Price

7
CUSHION, RADIATOR UPP
CUSHION

09320-10051-000   0932010051000

0932010051000

Unit Price

8
BRACKET, RADIATOR
BRACKET

17750-18H10-000   1775018H10000

1775018H10000

Unit Price

9
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

10
FAN ASSY, RADIATION

17800-18H00-000  

17800-18H01-000
 1780018H00000

Unit Price

11
BOLT

01550-0616A-000   015500616A000

015500616A000

Unit Price

12
NUT, RADIATOR FAN
NUT

17802-14F00-000   1780214F00000

1780214F00000

Unit Price

13
COVER, RADIATOR, RH

17761-46H00-000   1776146H00000

1776146H00000
Not available
14
COVER, RADIATOR, LH

17762-46H00-000   1776246H00000

1776246H00000
Not available
15
SCREW (6X12)

09139-06183-000   0913906183000

0913906183000

Unit Price

16
SHIELD, RADIATOR HEAT
SHIELD, HEAT

17771-18H00-000   1777118H00000

1777118H00000

Unit Price

17
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 1250 BANDIT 2012
