Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MAGNE TO

ELCTRICAL FOR SUZUKI BANDIT 1250 2012

BATTERY

Item numbers

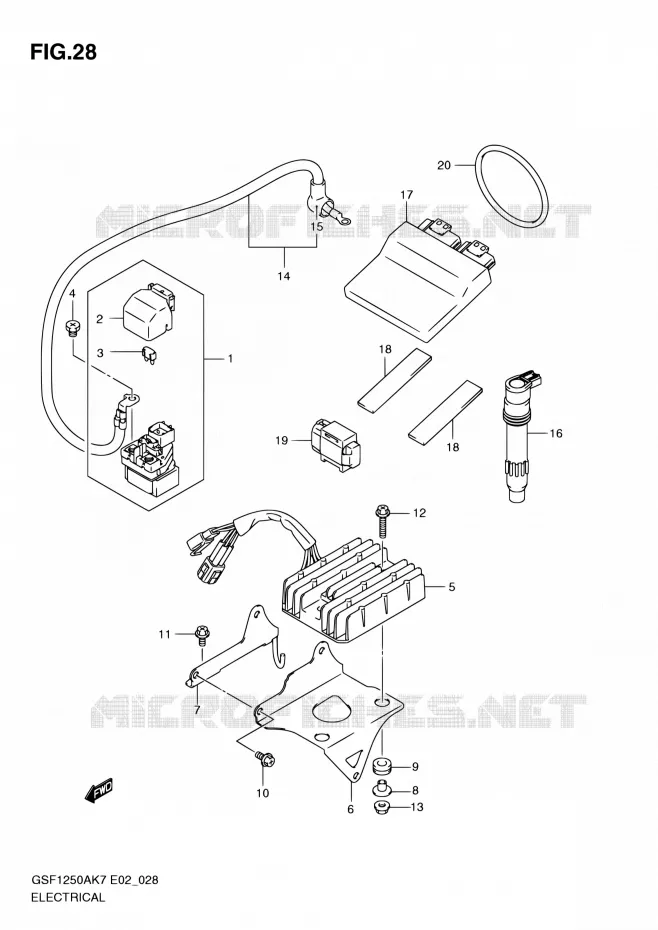

ELCTRICAL Suzuki MOTO 1250 BANDIT 2012 GSF1250SA L0 (E02,E19,E24,E37)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
20
1
RELAY ASSY, STARTING MOTOR

31800-38G10-000   3180038G10000

3180038G10000

Unit Price

2
.COVER

31861-38G00-000   3186138G00000

3186138G00000

Unit Price

3
FUSE, 30A

09481-30501-000  

09481-30504-000
 0948130501000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-18H00-000  

32800-47H00-000
 3280018H00000

Unit Price

6
BRACKET, RECT NO.1

32830-18H10-000   3283018H10000

3283018H10000
Not available
7
BRACKET, RECT NO.2

32830-18H20-000   3283018H20000

3283018H20000
Not available
8
SPACER, EXH PIPE COVE
SPACER, RECT

09180-06325-000   0918006325000

0918006325000

Unit Price

9
CUSHION, MUF COV
CUSHION, RECT

09320-08066-000   0932008066000

0932008066000

Unit Price

10
BOLT
BOLT, RECT BRKT

01547-0612A-000   015470612A000

015470612A000

Unit Price

11
BOLT
BOLT, RECT BRKT

01547-0612A-000   015470612A000

015470612A000

Unit Price

12
BOLT

01547-0625A-000  

01547-0625B-000
 015470625A000

Unit Price

13
NUT<br />NUT, RECT BRKT
NUT
NUT, RECT BRKT

08316-1006B-000   083161006B000

083161006B000

Unit Price

14
WIRE, STARTER MOTOR LEAD

33810-18H00-000   3381018H00000

3381018H00000
Not available
15
.CAP, STARTER MOTOR

33624-18H10-000   3362418H10000

3362418H10000

Unit Price

16
COIL ASSY, IGNITION

33410-35F10-000  

33410-35F11-000
 3341035F10000

Unit Price

17
CONTROL UNIT, FI

32920-18H00-000   3292018H00000

3292018H00000
Not available
17
CONTROL UNIT, FI

32920-18H40-000   3292018H40000

3292018H40000
Not available
18
PROTECTOR(80X80X2)

33652-38A10-000  

33652-07D00-000
 3365238A10000

Unit Price

19
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

20
O RING(D:3.53,ID:69.44)<br />BAND, FI CONTROL UNIT
O RING(D:3.53, ID:69.44)
BAND, FI CONTROL UNIT

09280-70004-000   0928070004000

0928070004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELCTRICAL of your Suzuki of BANDIT. Let us know if you have any questions.
